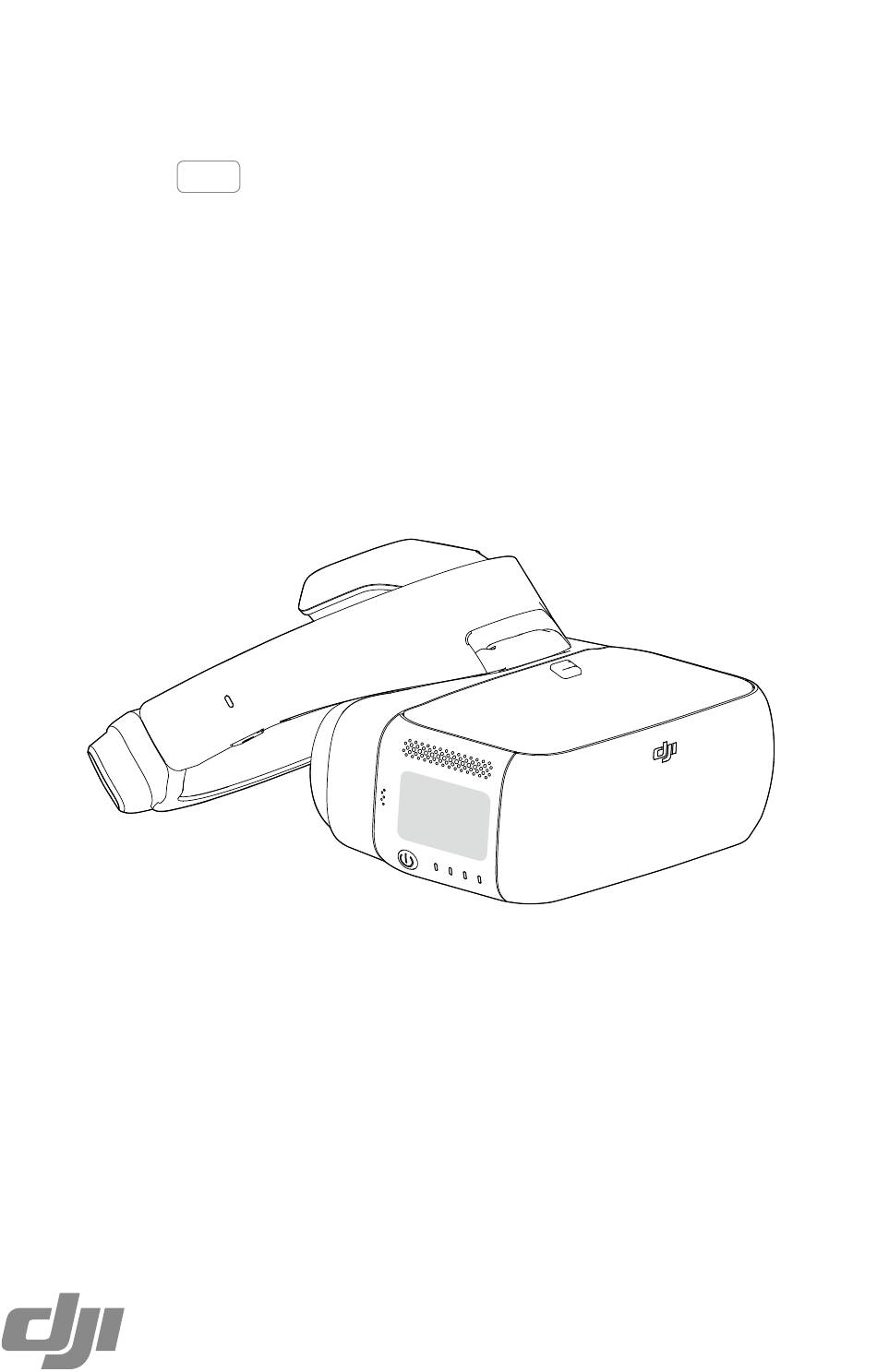

- Page 1 DJI GOGGLES V1.6 User Guide 2018.12...
- Page 2 We recommend you check that you have all of the included parts listed in In the Box. Please watch all the tutorial videos on the official DJI website and read the disclaimer to understand your legal rights and responsibilities. Prepare for your first usage by reviewing the Quick Start Guide and refer to the User Manual for more details.
- Page 3 Usage Operating Control Connection Main Screen Controlling the Aircraft Video Play Charging the Goggles Upgrading Firmware DJI Assistant 2 DJI GO 4 App Cleaning and Maintenance Cleaning the Goggles Maintenance of Lenses Specifications © 2018 DJI All Rights Reserved.
- Page 4 DJI Goggles (abbreviated as “Goggles”) are equipped with high-performance displays and an ultra-low latency video downlink for use with DJI aircraft, giving you a real-time aerial FPV (First Person View) experience.Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.
- Page 5 When putting the Goggles on, you can flip the Goggles body to see the world outside. 3. Turn the IPD Knob to adjust the distance between the lenses until the images are properly aligned. © 2018 DJI All Rights Reserved.
- Page 6 Exit shortcut menu Tap and hold to screenshot, and the image will be saved in the Micro SD card of the Goggles.* * Please ensure the Micro SD card is inserted into the Goggles. © 2018 DJI All Rights Reserved.
- Page 7 Indicates the linking status of the Goggles and the aircraft. The indicator will be solid red while linking and will go solid green when linked. Connection Goggles support a wide range of DJI aircraft and different uses. Please follow the steps below to connect. DJI Aircraft using OcuSync With OcuSync, the Goggles can be connected to the Mavic 2 series, Mavic Pro or the Phantom 4 Pro/Pro+ V2.0 wirelessly.
- Page 8 Settings”, select “Quick Linking” and confirm. The Goggles linking status indicator will go solid red on standby for linking. 4. Press the link button on the aircraft. Once linked, the Goggles linking status indicator will turn solid green. © 2018 DJI All Rights Reserved.
- Page 9 Please note that only the DJI GO 4 app connected with the primary remote controller and the Goggles can display the live view.
- Page 10 5. Select whether to connect with the remote controller in the Goggles. Next, power on the main secondary remote controller and connect it with a mobile device, if required. 6. Launch the DJI GO 4 app and enter the camera view. Press , then select “Remote Controller Linking >...
- Page 11 DJI Goggles User Manual Other DJI Aircraft The Goggles can also support other DJI aircraft. Ensure that the aircraft is linked with the remote controller and then connect the Goggles to the Micro USB port or the HDMI port of the remote controller.
- Page 12 Tap to set the ISO, shutter, aperture, and auto exposure values of the camera. Swipe left or right to switch between Shoot and Record mode. Tap to shoot photos or start/stop recording video. © 2018 DJI All Rights Reserved.
- Page 13 Please fly with caution. Intelligent Flight Modes Goggles support DJI Intelligent Flight Modes such as TapFly, ActiveTrack, Terrain Follow, Tripod, Fixed-Wing and more. Please refer to the aircraft user manual for further details. Use the touch panel to enter “Intelligent Flight Mode” and select the corresponding button to enable the desired mode.
- Page 14 Only Head Tracking Flight can be enabled when using Fixed-Wing Mode. This head tracking function should be enabled before entering the Fixed-Wing cruise option and your head is best kept stable at that time. © 2018 DJI All Rights Reserved.
- Page 15 "Local Storage". 2. Download from the Aircraft Storage: a) Mavic Pro/Spark: In the DJI GO 4 main screen, enter "Playback > Photo" and select a panorama, then tap to upload it to the aircraft. When upload is complete, you will see a thumbnail of the panorama in "Aircraft Storage"...
- Page 16 The battery level indicators will blink green, indicating current battery levels. 4. The battery is fully charged when the charging status indicator or battery level indicators turn off. Disconnect the Goggles from the charger. © 2018 DJI All Rights Reserved.
- Page 17 7. Restart all devices when the firmware upgrade is complete. DJI GO 4 App Use the DJI GO 4 app to upgrade the aircraft and remote controller of the Mavic Pro and the Goggles simultaneously (only supports connection topology for Standard Mode).
- Page 18 1. Ensure all devices are powered on and that the aircraft is linked with the remote controller. 2. Connect the remote controller with the DJI GO 4 app. A prompt will appear if a new firmware upgrade is available. To start upgrading, connect a mobile device to the Internet and follow the on-screen instructions.
- Page 19 United States and other countries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Quick Charge is a trademark of Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used with permission. © 2018 DJI All Rights Reserved.
- Page 20 This content is subject to change. Download the latest version from www.dji.com/dji-goggles If you have any questions about this document, please contact DJI by sending an email to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2018 DJI All Rights Reserved.
