OPERATION AND INSTRUCTION MANUAL
Beam Trolley Model: BTA012N
IMPORTANT!!!
ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR
WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT. ALL INDIVIDUALS WHO USE
THIS PRODUCT MUST BE PROPERLY INSTRUCTED ON HOW TO USE THIS DEVICE.
V2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTA012N and is the answer not in the manual?

Questions and answers

Related Manuals for SL TECH BTA012N

Summary of Contents for SL TECH BTA012N

  • Page 1 OPERATION AND INSTRUCTION MANUAL Beam Trolley Model: BTA012N IMPORTANT!!! ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST BE PROPERLY INSTRUCTED ON HOW TO USE THIS DEVICE.
  • Page 2 PURPOSE The BTA012N is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”...

  • Page 3: Component Materials

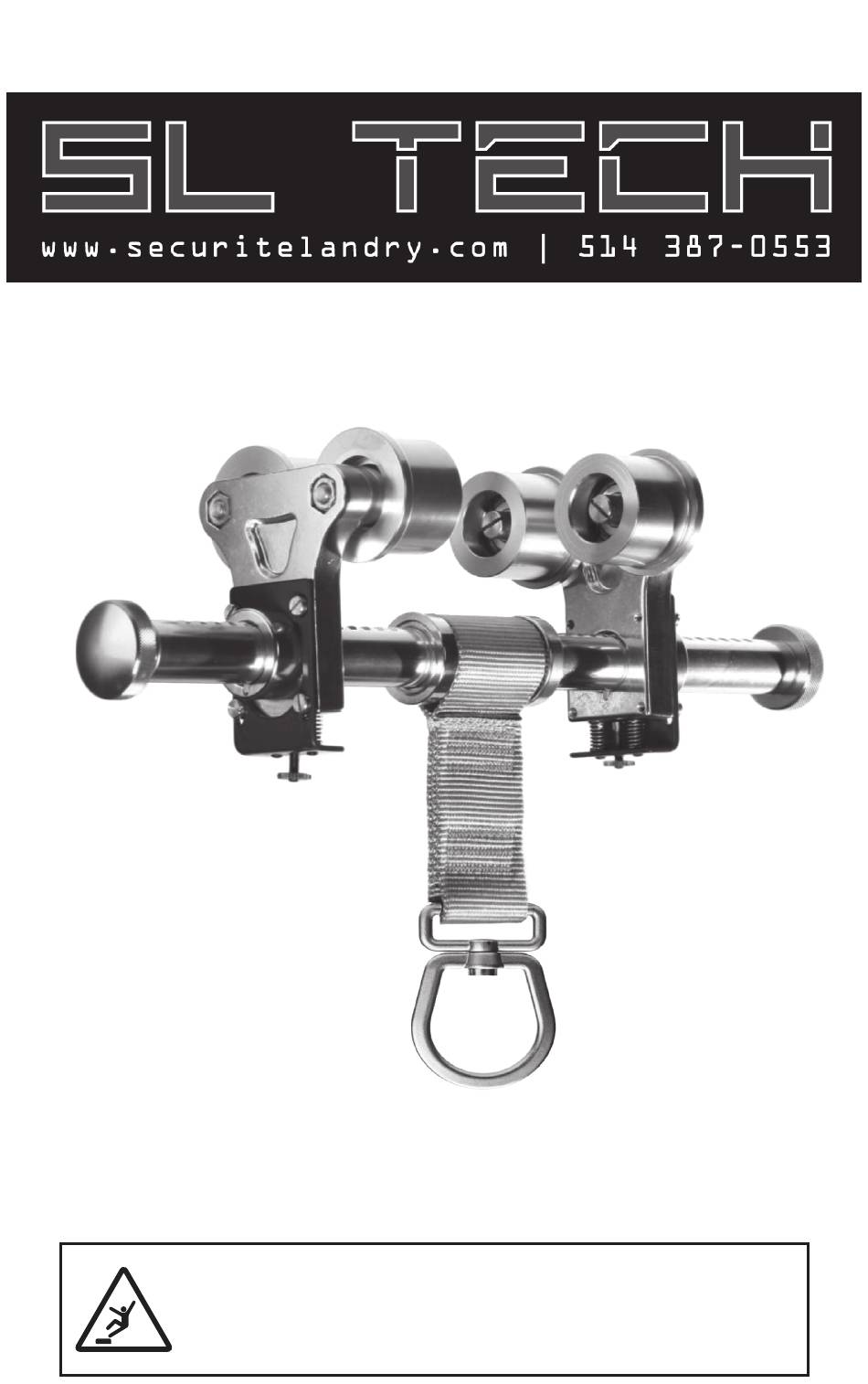

    (Notches) (Notches) (Toggle Plate) (Toggle Plate) (Secondary Safety Lock) (Secondary Safety Lock) (5,000-lbf Swivel) BEAM TROLLEY 1019 BTA012N Model: Component Materials: 5,000-lbf (22kN) UTS Aluminum, Zinc Plated Steel, BTA-XXX Stainless Steel (1) person 310-lbs (140kg) Aluminum: Cross Bar, Rollers Produced By: Nal Hon Industrial co., Ltd...

  • Page 4: Installation

    LOADING CONDITIONS DIAGRAM ACCEPTABLE LOADING 30° MAX 30° MAX Installation: 1. Locate a structural steel beam flange capable of withstanding a 5,000-lbf. static load or meeting OSHA 1926.502 requirements for a safety factor of two. Mounting location must be approved by an engineer or qualified person. 2.
  • Page 5 4. Slide the adjustable rollers so that both sets of rollers are fully resting on the beam flange. 5. Release the toggle plate and pull back on the adjustable rollers to ensure the ratchet teeth are fully seated in the nearest ratchet notches. 6.

  • Page 6: Work Surface

    * DO NOT WORK * ABOVE ANCHOR POINT WORK SURFACE (ANCHOR POINT) WORK SURFACE *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8kN (1800-lbf ).

  • Page 7: Maintenance, Cleaning And Storage

    MAINTENANCE, CLEANING AND STORAGE Cleaning periodically will prolong the life and proper functionalityof the product. The frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a stiff brush using plain water or a mild soap and water solution. Do not use any corrosive chemicals that could damage the product.
  • Page 8 Product Warranty, Limited Remedy and Limitation of Liability WARRANTY: THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Equipment offered by ClimbTech is warranted against factory defects in workmanship and materials for a period of one year from date of purchase or first use by the original owner.
