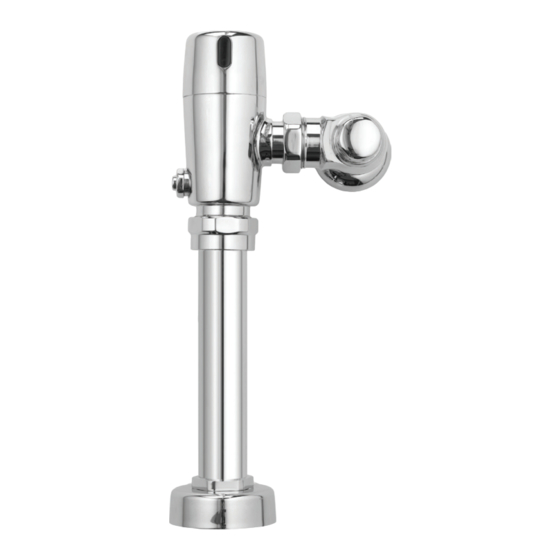

Summary of Contents for Kassel Sanitar FLAMINGO KSL00530
- Page 1 FL AMI NG O FL AMI NG O AL FAR O N AL FAR O N E LECT RON IC F LU SH VALVES E LECT RON IC F LU SH VALVES FLAMINGO SERIES ALFARO N SERIES INSTA L L AT I ON A N D M A I N T E N A N CE GU I D E INSTA L L AT I ON A N D M A I N T E N A N CE GU I D E...
- Page 2 600 +/- 20MM / 23.62” +/- 0.79” (customizable with optional remote control) The information in this document reflects products at the date of printing. Kassel Sanitar, S.L. reserves the right, subject to all applicable laws, at any time, at its Venus sensor range 650 +/- 20MM / 25.59”...
- Page 3 PACK CONTENTS PACK CONTENTS FLAMINGO FLAMINGO SIDE INLET / ALFARO N Familiarize yourself with the part names and confirm that the parts are included. Familiarize yourself with the part names and confirm that the parts are included. 1 x Cap with electronic unit 1 x Cap with electronic unit 1 x Wall flange 1 x Shut off valve...
- Page 4 INSTALLATION PRE-INSTALLATION INFO CHECK CONTENTS Separate all parts from the packaging and check each part with the “Pack contents” section. Shut off the water supply. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. FOR SIDE INLET MODELS If any parts are missing, do not attempt to install your electronic faucet until you obtain the missing parts.
- Page 5 INSTALLATION INSTALLATION For battery operated versions: Connect the battery to the electronic unit connector and place the battery inside the flush valve cap. Slide the spud coupling nut over the vacuum breaker pipe, do not tighten the vacuum breaker coupling nut yet. For transformer operated versions: a) Pass the electric wires through the cable compartment located in the flush...
- Page 6 SETTINGS ADJUSTMENT SETTINGS ADJUSTMENT DETECTION RANGE: Only if necessary, use the remote control to adjust the sensor range as follows: DETECTION DELAY OUT TIME Press the RANGE button. Wait until a quick flashing of the LED in the sensor RANGE eye is perceived.
- Page 7 BATTERY REPLACEMENT LIMITED WARRANTY KASSEL SANITÄR S.L. warrants that its electronic products will be free of defects in When the battery weakens, the LED indicator light will blink at a constant rate. The battery material and workmanship during normal use for two years from the date the product must be replaced within two weeks.
- Page 8 TROUBLESHOOTING TROUBLESHOOTING / MAINTENANCE PROBLEM INDICATOR CAUSE SOLUTION PROBLEM CAUSE SOLUTION Valve does not flush Discharge 1. The self cleaning needle came out of the piston 1.The LED indicator orifice or is displaced. The orifice delivers more Replace the piston. in the sensor flashes water than usual pushing down the piston, continuously when the...
- Page 9 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 info@sternfaucets.com | tech@sternfaucets.com 03.18 015140100-B...
