Summary of Contents for MARINE DATA MD67HR

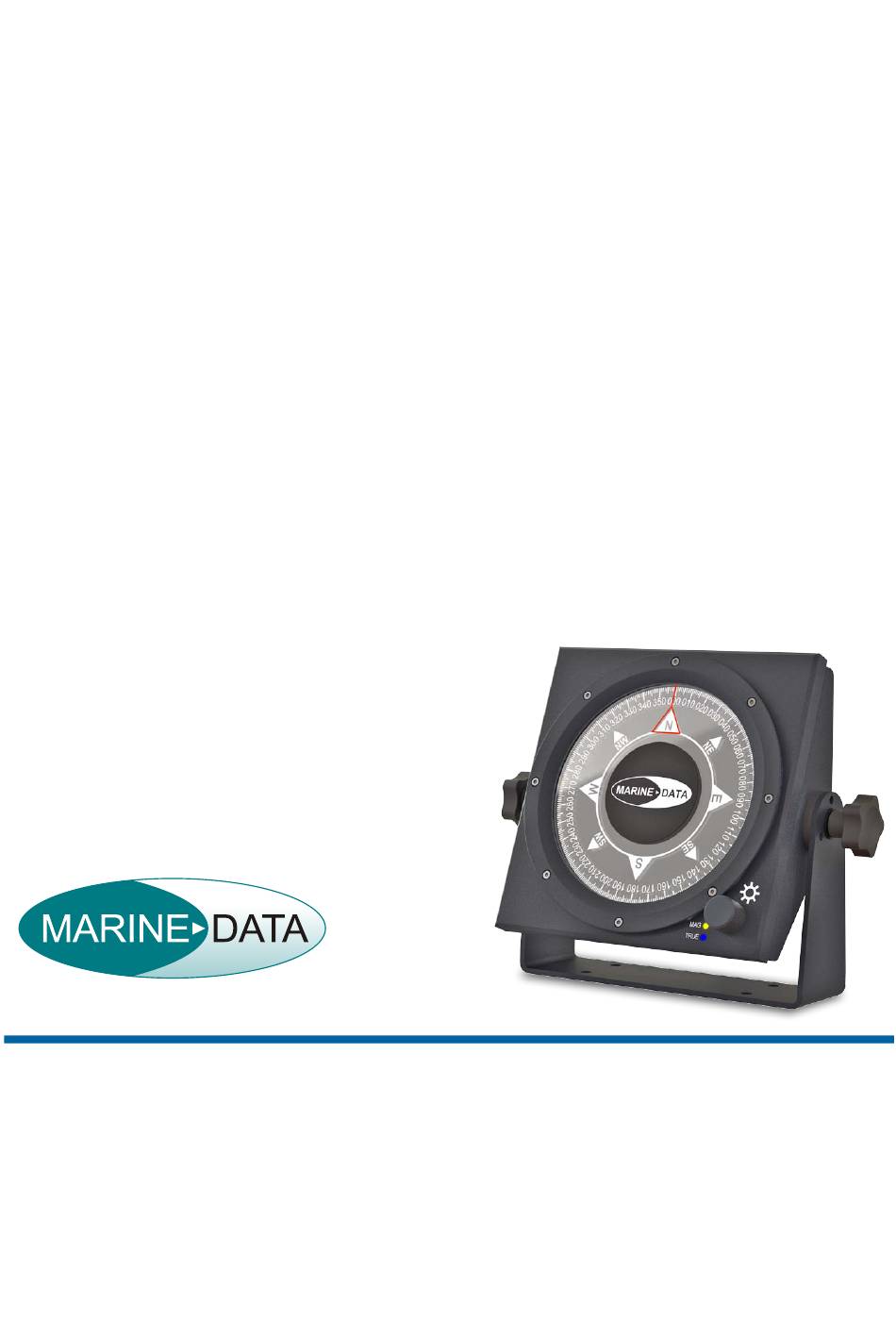

- Page 1 …navigation with innovation USER MANUAL MD67HR F067001 – WEATHERPROOF HEADING REPEATER MD67HR-MA-v04r06 2015-06-23 ENGLISH...
-
Page 3: Table Of Contents
12.2 Replacing the Faceplate ................18 12.3 Fault-Finding ....................19 12.3.1 MD67HR does not operate ............. 19 12.3.2 MD67HR aligns to 000° but does not follow the source heading ..19 12.3.3 Display illumination not functioning ..........19 12.3.4 Display illumination flashing ............19 12.4 Technical Support .................. - Page 4 13.4 Environmental ..................... 22 13.5 Additional Information ................. 22 14 SPARE PARTS AND ACCESSORIES ..........23 15 GROUNDING AND SHIELDING ............24 16 SAFETY AND SECURITY ..............24 17 GLOSSARY OF TERMS ..............25 18 ABOUT MARINE DATA ..............26...
-
Page 5: Md67Hr - Weatherproof Heading Repeater
MD67HR 1 MD67HR - WEATHERPROOF HEADING REPEATER MD67HR – front view Bulkhead Bracket Mounted (Option) Product F067100 MD67HR – rear view Bulkhead Bracket Mounted (Option) Showing watertight gland and captive cable... -
Page 6: Document
About This Manual This Manual provides installation, operating Instructions and fault-finding procedures for the MARINE DATA MD67HR (IP67) Heading Repeater. After installation, this manual should remain with the vessel to which it relates. This manual may also be made available in electronic Portable Document Format (PDF). -
Page 7: Notice
Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 email: info@marine-data.co.uk fax +44(0)1983 822181 web: www.marine-data.co.uk MARINE DATA SYSTEMS LIMITED reserves the right to make changes to its products and specifications without notice... -
Page 8: Description
Ship’s Heading as part of a Gyro-Compass or Transmitting Magnetic Compass System, receiving data via a NMEA 0183 digital transmission. The MD67HR has a dial of 118 mm diameter marked in 1 degree increments with numeric values every 10 degrees plus cardinal and inter-cardinal markers. The dial rotates one revolution for 360 degrees. -
Page 9: Principle Of Operation
MD67HR 5 PRINCIPLE OF OPERATION The MD67HR accepts serial azimuth data from a Gyro-Compass or Transmitting Heading System (THS) in digital format using standard NMEA 0183 (IEC61162-1) True or Magnetic sentences. The input is processed by electronic circuitry contained within the Repeater enclosure, powered from 18 V to 32 V dc derived from the ship’s supply. -
Page 10: Application
MD67HR 6 APPLICATION The MD67HR displays True or Magnetic Heading Data transmitted from NMEA 0183 (IEC 61162-1) compatible marine equipment (Gyro-Compass, TMC, EMC, GPS Compass etc.) The following NMEA 0183 sentences (in priority order) may be used to display Heading:... -
Page 11: Major Dimensions
MD67HR 8 MAJOR DIMENSIONS All dimensions mm Panel mounting and bulkhead mounting options shown here: BULKHEAD BRACKET MOUNT BULKHEAD BRACKET PANEL MOUNT MOUNTING DETAIL... -
Page 12: Installation
Connect the MD67HR in accordance with table 9.3 – Cable Core Connections (by function). The MD67HR is designed to use 24 V dc and accept a digital RS422 data signal using the NMEA 0183 protocol. Ensure all incoming supply and signal cables are suitably insulated and/or connected, or bonded to the vessel’s earth where appropriate. -
Page 13: Cable Core Connections (By Function)
MD67HR Cable Core Connections (by function) Cable Core Type: Function: Description: Colour Positive Input +24 V dc Supply (Main) Input Negative 24 V dc Supply Return Optional External Dimmer Input. 0 V = Minimum Input DIM_IN Illumination; 24 V = Maximum Illumination... -
Page 14: Commissioning The System
Ensure that the installation complies with section 9 - Installation. Apply system power (24 V dc) to the MD67HR. The MD67HR Dial Compass Repeater will initially align to 000° degrees; it will then adopt the heading which is being transmitted from the heading source. -
Page 15: Operation
MD67HR 11 OPERATION The MD67HR main function is as a Heading Repeater. 11.1 Operator Controls A. Back-lit Dial, 000° - 359° B. Lubber Line C. Rotary Dimmer Control Knob and Self-Test Button D. True Heading indicator (Blue) E. Magnetic Heading Indicator (Yellow) -
Page 16: Normal Operation
If the type of heading available changes from True to Magnetic or from Magnetic to True, the MD67HR will automatically adjust to display the available Heading Type. If both True and Magnetic Heading data are available, True Heading will be displayed as a higher priority. -
Page 17: Alert: Loss Of Data
True and Magnetic Indicators will be illuminated. 11.5 Under Voltage Lock-out If the voltage of the power supply to the MD67HR falls below a preset limit of 15 V dc, the operation of the MD67HR is locked-out to prevent potential inaccurate display of heading. -
Page 18: Maintenance And Fault-Finding
The polycarbonate faceplate is user-replaceable. In order to change the faceplate, first ensure that the MD67HR is in a cool, dry atmosphere to avoid trapping moisture inside the unit. Place the MD67HR face upwards. Carefully remove the 8 hex socket screws (A) from the retaining bezel (B). -
Page 19: Fault-Finding
MD67HR. 12.3.2 MD67HR aligns to 000° but does not follow the source heading The NMEA 0183 digital signal to the repeater is either not present or the data sentence being sent is not of the correct structure. Check the source compass or the source of the heading data for the presence of a valid heading data sentence. -
Page 20: Technical Support
MD67HR 12.4 Technical Support If further technical support is required then please contact Marine Data Technical Support: • By email: support@marine-data.co.uk • Through our website: www.marine-data.co.uk All technical support enquiries must include the following basic equipment information: About your MARINE DATA Equipment: MARINE DATA Equipment Model number (e.g. -
Page 21: Specifications
MD67HR 13 SPECIFICATIONS 13.1 Physical Weight: 1.5 kg (with optional bulkhead mounting bracket) (Bulkhead mounted): Width 221.5 mm; Height 173.5 mm; Dimensions: Depth 100 mm Fascia Dimensions: 160 x 160 x 16 mm deep Mounting: Panel-mounted or optional bulkhead mounting bracket Connections: 1x 8 core 2.5 m captive data cable to bare tails... -
Page 22: Environmental
Supplied with 2.5 m of data cable tail User-replaceable 3 mm polycarbonate faceplate with anti-scratch and anti-glare coatings If spare parts are required then please contact either your supplier or MARINE DATA. MARINE DATA reserves the right to makes changes to its products and specifications without notice. -
Page 23: Spare Parts And Accessories
MD67HR 14 SPARE PARTS AND ACCESSORIES MD Part No. Description: Illustration: MD67TB F067100 Bulkhead Mounting Trunnion Bracket MD67HR CM87752 Sun Shield MD67HR CM87735 Replacement Polycarbonate Faceplate MD01/PMD SS37120 Panel Mount Remote Dimmer Assembly MD69CBW F069103 8-Way Waterproof Junction Box IP65... -
Page 24: Grounding And Shielding
MD67HR 15 GROUNDING AND SHIELDING This repeater is designed to be grounded via the cable screen; this provides the electrical contact for protective earth bonding. 16 SAFETY AND SECURITY Please observe the following procedures to ensure safety of personnel installing and operating the equipment: •... -
Page 25: Glossary Of Terms
MD67HR 17 GLOSSARY OF TERMS Term Description Electro-Magnetically Compatibility specifically measured against MIL-SPEC-461 Electromagnetic Compass (fluxgate coil compass) Maritime navigation and radio communication equipment and systems. EN60945 General requirements. Methods of testing and required test results. Minimum Order Quantity MTBF... -
Page 26: About Marine Data
In the leisure industry, MARINE DATA is the choice again; you will find our equipment on the liners of the world’s leading leisure operators - including P&O™ and Disney®. In the fishing industry, MARINE DATA is there to help the world’s fishing skippers harvest the... - Page 27 MD67HR NOTES...
- Page 28 MARINE DATA SYSTEMS LIMITED Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 822180 fax +44(0)1983 822181 web: www.marine-data.co.uk email: info@marine-data.co.uk...
