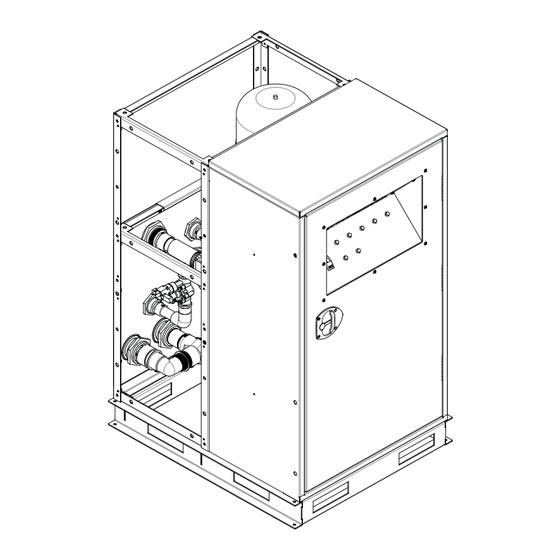

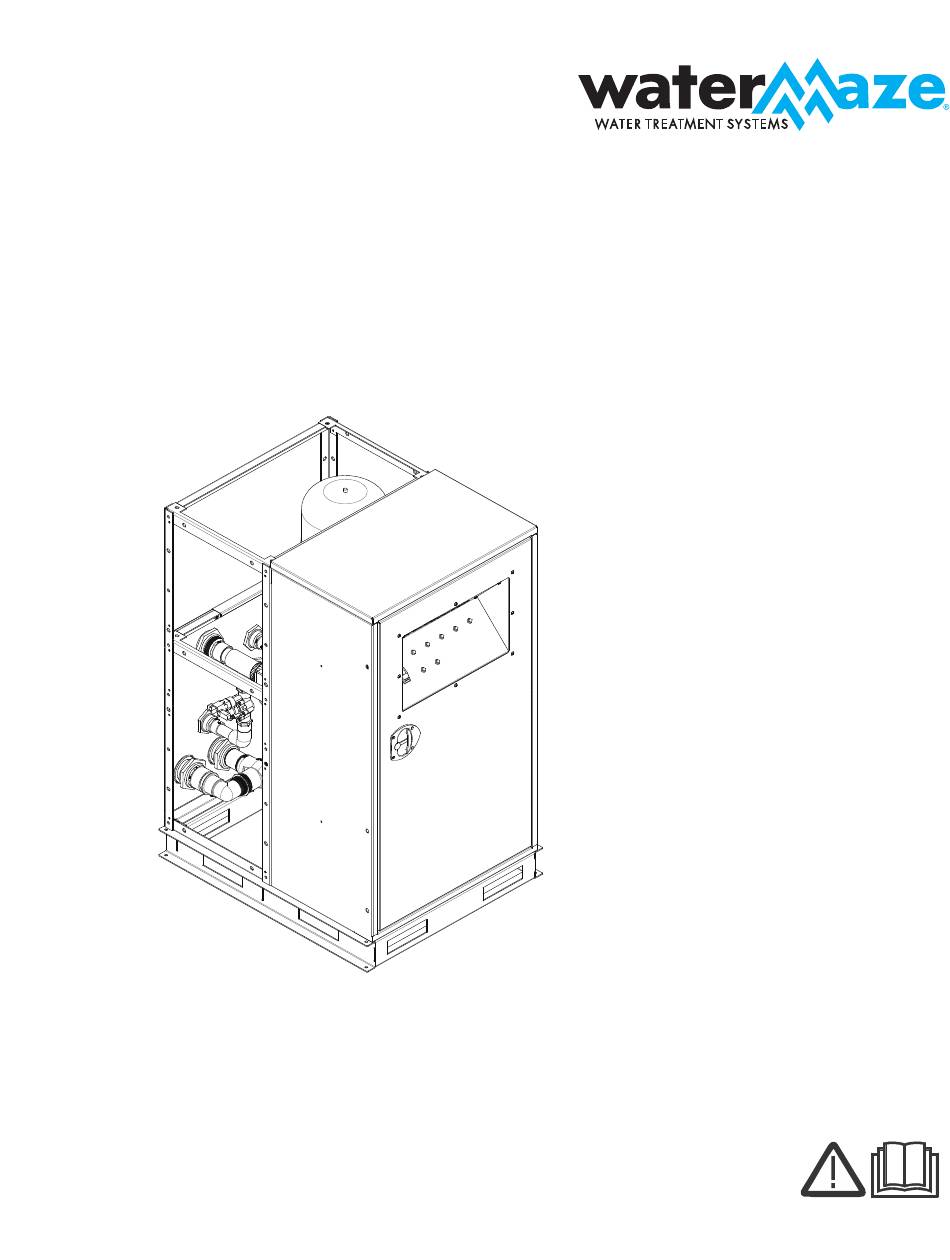

- Page 1 REC3-30 Operator Manual Water Management Pump System MODELS: REC3-30 1.103-511.0 REC-ZCF3-30A 1.103-513.0 For the Dealer nearest you, consult our web page at www.wmaze.com 9.807-993.0-E 06/11/24...
-
Page 2: Machine Data Label
Machine Data Label Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 3: Table Of Contents
Warranty ....... . 44 REC3-30 Water Management Unit: ... . 12 Pre-Treatment Upstream of The Inlet of The REC3-30 Must Prevent The Following:. -
Page 4: How To Use This Manual
KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. NOTE: The manual part number is located on the lower right corner of the front cover. Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 5: Introduction & Safety Information
PRIOR TO USE. 1. Read all the instructions before using the product. 2. To reduce the risk of injury, close supervision is necessary when a product is used near children. Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 6: Grounding Instructions
REC3-30. This power supply must be run through conductor must be run with the circuit conductors and conduit in compliance with local and national elec- connected to the equipment-grounding terminal located trical codes. - Page 7 Disconnect the power before ser- 17. Water Maze is not liable for modifications or use of vicing this machine. If the power disconnect is out components not purchased from Water Maze.
-
Page 8: Operations
Operations Component Identification Control Panel Solenoid - Operated Valve (1 of 3) Door Latch Inlet Diversion Valve Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 9 Operations Electrical Junction Box Terminal Box Float Switches Pressure Tank IMPORTANT: Note Orientation Of Valve Below Water Connection Panel Pump With ZCF Filtration NO ZCF Filtration Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
- Page 10 Panel , Hydraulics Connection Oulet To Drain Inlet Fresh Water Oulet To ZCF Filters Inlet From Feed Source Oulet To Auxillary Water Inlet From Storage Tank Return From ZCF Filters Oulet To Pressure Washer Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 11: Connection Diagram
. When infeed tank level reaches low level switch point, system switches back to drawing water from storage tank. Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 12: Rec3-30 Water Management Unit
Water Maze Recycling water treatment system and local storage tank. The System. Please follow these instructions step by step to REC3-30 unit can then be used to circulate and refresh ensure proper installation. stored water. An optional Ozone generator can be WARNING: A backflow preventer must be provided added to further sanitize and de-odor the water. -
Page 13: Utility Usage
Compressed air and/or water may escape or blow out through a damaged tank wall. The REC3-30 is designed to work in a wide variety of operating conditions. In normal operating environ- ments, the system should perform as specified. In extremely hot or cold environments certain precautions need to be taken. -
Page 14: System Operating Pressures
(alimentation) of at least 3-gpm. Pump discharge pressure can avant la manutention vary between 35-psi to 55-psi depending on actual water demand. Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 15 Consult trouble- shooting guide in this manual to assist in resolving pump fault issues. Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 16: Rear Piping Connection Panel
Panel , Hydraulics Connection Oulet To Drain Inlet Fresh Water Oulet To ZCF Filters Inlet From Feed Source Oulet To Auxillary Water Inlet From Storage Tank Return From ZCF Filters Oulet To Pressure Washer Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 17 Notes Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 18: Maintenance
Msg Config highlight ‘Clock’ and press Start Screen OK to accept. Clock Menu Language Switch to OP 4.Move the cursor to highlight ‘Set Clock’ and Set Clock press OK to accept. S/W Time Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 19 Timer selection menu. RECIRC TIMER 3. Using the up/down arrow key ▲ or ▼, move the D1= MTWTF cursor to highlight ‘Set Parameter’ and press OK to ON1=14:00 confirm. OFF1=16:00 Set Parameter Prog Name Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 20: Environmental
Pump Maintenance To reduce deterioration of equipment it is recom- WARNING: Before attempting to service, mended that the REC3-30 Water Treatment System be disconnect power from unit. Do not handle the protected from environmental elements such as rain, pump with wet hands or when standing on a wet or snow, hail, direct sunlight, as well as freezing damp surface or in water. -
Page 21: Troubleshooting
Pump suction damaged, Repair any damage to leaking air in pump suction piping Inlet isolation valve(s) from Open valve to allow flow infeed and/or storage from tanks to pump inlet tanks shut connections Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 22 Check pressure tank pressure tank should be able Pressure tank air charge bladder integrity. Adjust to deliver at least 1-gallon loss pre-charge or replace between high-pressure tank if damaged. shutoff and 30-psi Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
- Page 23 Troubleshooting SYMPTOM POSSIBLE CAUSES SOLUTION(S) ADDITIONAL INFO PUMP MOTOR RUNS Check operating voltage Decreasing operating voltage HOT AND/OR TRIPS Voltage too low and amperage while causes an increase in OVERLOAD pump is operating amperage draw. Check lead connections Motor power wiring loose at junction boxes Check winding integrity Motor winding failure...
- Page 24 Adjust timer program DOESN'T OPERATE incorrect setting Check fuses in control Fuse blown panel and in ozone generator power supply Ozone generator display Ozone generator unplugged Plug in will light only when powered up Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 25: Pump Flow Performance
The standard 1.5hp pump is capable of delivering up to 45-gpm @ +/-44-psi (depending on site piping and elevations. An optional 2hp pump is available to deliver up to 60-gpm @ +/-44-psi (depending on site piping and elevations. Contact your Water Maze equipment supplier for application assistance and ancillary equipment selection. 1.5hp Pump Flows (instantaneous) +/-GPM... - Page 26 Notes Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 27: Parts
Parts Parts WATERMAZE REC3-30 1.103-511.0 REC3-30 1.103-513.0 REC- ZCF3-30A Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 28: Cabinet Front
WLMT CONTROL PANEL 8.751-128.0 HANDLE, LOCKING, VECTOR T HNDL 8.928-497.0 ASSEMBLY DOOR 8.928-502.0 PANEL RIGHT 8.928-481.0 WLMT BASE PLATFORM REC3-30 8.928-501.0 PANEL LEFT 8.928-504.0 PANEL HYDRAULICS CONNECTION 8.928-494.0 ASSEMBLY SIDE FRAME 8.928-493.0 FRAME HORIZONTAL Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 29: Cabinet Rear
Cabinet Rear PART NO. DESCRIPTION NOTES 8.716-321.0 BOX, JUNCTION 3 HOLE 1/2 8.719-176.0 TANK,4.4GAL PREPRESURIZD,BLUE 8.928-505.0 STRAP PRESSURE TANK 8.928-504.0 PANEL PIPING CONNECTIONS 8.925-394.0 TERMINAL BOX Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 30: Control Panel
LIGHT, INDICATOR, GREEN 28V 8.716-547.0 CONNECTOR, 1/2 L/T, STRAIGHT 9.803-651.0 LIGHT, INDICATOR, RED, 28V 9.803-650.0 LIGHT, INDICATOR, BLUE 28V 8.716-037.0 SWITCH, ROCKER 9.802-283.0 HOUR METER 8.755-010.0 RIVNUT, RIB FLG HD, 1/4 -20 Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 31: Terminal Box
RIVNUT, RIB FLG HD, 1/4 -20 8.928-487.0 COVER TERMINAL BOX 8.925-394.0 TERMINAL BOX 8.716-547.0 CONNECTOR, 1/2 L/T, STRAIGHT 9.802-518.0 STRAIN RELIEF 3/4 NPT 9.802-493.0 BLOCK, TERMINAL, 16 POLE 9.802-514.0 STRAIN RELIEF 1/2 NPT Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 32: Control Box
Control Box Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 33 CONNECTOR 1/4 TUBE X 1/8 FPTF 8.757-128.0 SWITCH VACUUM 6 Hg 8.756-767.0 SWITCH PRESSURE N/O 10 PSI 8.757-127.0 SWITCH PRESSURE N/C 30 PSI 8.757-123.0 RECEPTACLE SINGLE 120V 15A 8.714-512.0 TERMINAL BLOCK-3 POSTION Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 34: Piping, Valves, Pump
Piping, Valves, Pump Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 35 VALVE 2 DIVERSION 8.706-479.0 BULKHEAD, 2' NPT, POLYPRO 8.706-484.0 BULKHEAD, 1 , POLYPRO 8.716-697.0 SOLENOID, WATER MAZE, PVC 24V P/N 100DVF 8.706-597.0 UNION, 1 , S X S, PVC 80 8.707-061.0 STRAINER, 1/2 BASKET Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 36: Pump
KIT, IMPELLER / WEAR RING / DIFFUSER 7, 8 8.757-598.0 KIT, DIAPHRAGM / GROMMET 8.757-607.0 CASE, PUMP SIZE INLET OUTLET BRAND MODEL NO. AMPS VOLTS PHASE MAX GPM, PSI FRANKLIN FTB15CI 1-1/2 1-1/2 45 GPM X 44 PSI Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 37: List Diversion Valve
BONNET, DOROT VALVE 8.757-603.0 SPRING, DOROT VALVE 8.757-604.0 KIT, DIAPHRAGM/ACTUATOR DOROT 8.757-605.0 BODY, BRASS DOROT VALVE SIZE INLET OUTLET MODEL NO. MAX TEMPERATURE MAX GPM, PSI 50 GPM @ 150 PSI 140F Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 38: Terminal Box Wiring Diagram
Terminal Box Wiring Diagram Low Water Fresh Water High Water Feed Tank Float Switch Float Switch Float Switch Float Switch Prewired at Factory Bottom prewired at factory Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 39: Control Box Wiring Diagram 9.808-000.0
Control Box Wiring Diagram 9.808-000.0 Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 40: Control Panel Wiring Diagram 9.808-100.0
Control Panel Wiring Diagram 9.808-100.0 Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 41: List 3-Way Ball Valve
PVC / CPVC stop ring PVC / CPVC socket seal o-ring EPDM / FPM end connector PVC / CPVC 18abc union nuts PVC / CPVC * Spare parts available. ** Optional feature Water Maze REC3-30 Operator Manual 9.807-993.0 - E... -
Page 42: Hydraulic Control Circuit
Hydraulic Control Circuit (A2-6811) (A2-5801) (N.O.) (N.C.) Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 43 Hydraulic Control Circuit (A2-6811) (A2-5801) (N.O.) (N.C.) Water Maze REC3-30 Operator Manual 9.807-993.0 - E...
-
Page 44: Warranty
TO OBTAIN WARRANTY SERVICE: Purchaser must bring the accessory parts to an authorized Watermaze Distributor. For the distributor nearest you consult our web page: www.wmaze.com or write: Watermaze, 6398 N. Karcher Way, Aurora, CO 80019. Water Maze REC3-30 Operator Manual 9.807-993.0 - E... - Page 45 MAZE does not authorize any other party, including authorized WATER MAZE Distributors, to make any representation or promise on behalf of WATER MAZE, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of WATER MAZE products conforms to local codes.
