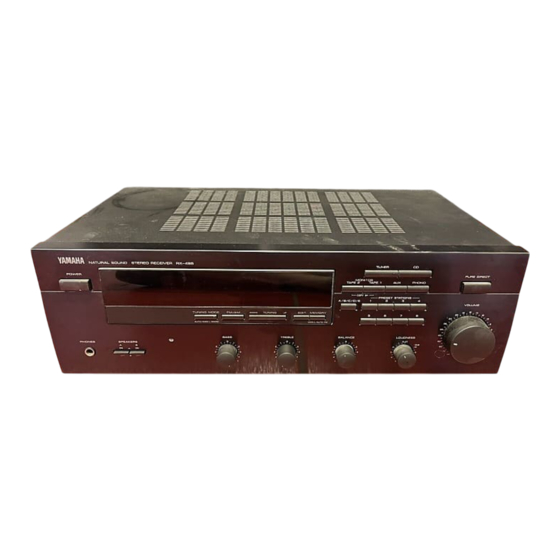

Natural sound stereo receiver
Hide thumbs Also See for RX-V495:

Advertisement

Quick Links

Download this manual
RX-495/395
Natural Sound Stereo Receiver
Ampli-syntoniseur stéréo de la série "Natural Sound"
Receptor estéreo de Sonido Natural
Thank you for selecting this YAMAHA stereo receiver.
Nous vous remercions pour avoir porté votre choix sur ce récepteur stéréo YAMAHA.
Muchas gracias por haber adquirido este receptor estéreo YAMAHA.
OWNER'S MANUAL
MODE D'EMPLOI
MANUAL DE INSTRUCCIONES

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX-V495 and is the answer not in the manual?

Questions and answers

Related Manuals for Yamaha RX-V495

Summary of Contents for Yamaha RX-V495

  • Page 1 Ampli-syntoniseur stéréo de la série “Natural Sound” Receptor estéreo de Sonido Natural Thank you for selecting this YAMAHA stereo receiver. Nous vous remercions pour avoir porté votre choix sur ce récepteur stéréo YAMAHA. Muchas gracias por haber adquirido este receptor estéreo YAMAHA. OWNER’S MANUAL MODE D’EMPLOI...
  • Page 2 SAFETY INSTRUCTIONS Wall or Ceiling Mounting – The unit should be mounted to a wall or ceiling only as recommended by the manufacturer. CAUTION RISK OF ELECTRIC SHOCK Ventilation – The unit should be situated so that its DO NOT OPEN location or position does not interfere with its proper ventilation.
  • Page 3 “OFF” and “ON”, please try requirements. Modifications not expressly approved by to eliminate the problem by using one of the following Yamaha may void your authority, granted by the FCC, to measures: use the product.
  • Page 4 FEATURES CONTENTS RX-495 Safety Instructions.......... 2 70W + 70W (8Ω) RMS Output Power, Features ............4 0.04% THD, 20–20,000 Hz Supplied Accessories ........4 Caution ............5 RX-395 45W + 45W (8Ω) RMS Output Power, Controls and Their Functions ......6 0.04% THD, 20–20,000 Hz Connections ..........
  • Page 5 CAUTION : READ THIS BEFORE OPERATING YOUR UNIT. To assure the finest performance, please read this manual IMPORTANT carefully. Keep it in a safe place for future reference. Please record the serial number of this unit in the space below. Install this unit in a cool, dry, clean place –...
  • Page 6 CONTROLS AND THEIR FUNCTIONS FRONT PANEL RX-495 NATURAL SOUND STEREO RECEIVER TUNER PURE DIRECT POWER MONITOR TAPE 2 TAPE 1 PHONO PRESET STEREO 0 20 TAPE MONITOR 12 MEMORY ENTER AUTO TUNING SLEEP COPY PRESET STATIONS A/B/C/D/E VOLUME TUNING MODE FM/AM TUNING EDIT MEMORY...
  • Page 7 POWER switch SPEAKERS switches Press this switch to switch the power on. Press it again to Set the switch A or B (or both A and B) for the speaker system switch the power off. (connected to this unit) you will use to the ON position. Set the <...
  • Page 8 DISPLAY PANEL PRESET STEREO 40 60 MEMORY TAPE MONITOR AUTO TUNING SLEEP RX-395 RX-495 TAPE MONITOR TAPE MONITOR 12 Multi-information display TAPE MONITOR indicator Displays various information, for example station frequency, RX-395 preset station number and name of selected program source. Lights up when the tape deck is selected as the input source by pressing the TAPE MONITOR button.
  • Page 9 The remote control transmitter provided with this unit is designed to control all the most commonly used functions of the unit. If the CD player and tape deck connected to this unit are YAMAHA components designed for remote control compatibility, then this remote control transmitter will also control various functions of each component.
  • Page 10 L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this unit. If you have YAMAHA components numbered as 1, 2, 3, etc. on the rear panel, connections can be made easily by making sure to connect the output (or input) terminals of each component to the same-numbered terminals of this unit.
  • Page 11 RX-395 Speakers A Turntable Tape deck Right Left (U.S.A. model) 75Ω UNBAL. SPEAKERS AC OUTLETS SWITCHED I20V 60Hz I00W MAX. TOTAL TAPE PHONO TAPE A OR B : 6ΩMIN./SPEAKER B : l2ΩMIN./SPEAKER To AC outlet Right Left Compact disc player Video cassette player, Speakers B LD player, etc.
  • Page 12 CONNECTING SPEAKERS Connect the SPEAKERS terminals to your speakers with wire Notes of the proper gauge, cut as short as possible. If the One or two speaker systems can be connected to this unit. connections are faulty, no sound will be heard from the If you connect only one speaker system, connect it to either speakers.
  • Page 13 ANTENNA CONNECTIONS Each antenna should be connected to the designated terminals correctly, referring to the following diagram. Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may result in improvement.
  • Page 14 BASIC OPERATIONS 1, 6 TO PLAY A SOURCE Select the speakers to be used. SPEAKERS If you use two speaker systems, press both the A and ∞ Set to the “ ” position. B switches. Play the source. (For detailed information on the Turn the power on.
  • Page 15 TO RECORD A SOURCE TO TAPE 1, 4 RX-495 RX-395 Select the source to be recorded. Select the source to be recorded. TUNER TUNER MONITOR TAPE TAPE 2 TAPE 1 PHONO MONITOR PHONO COPY * To dub from tape to tape, refer to the “Notes” shown * When you select AUX, TUNER, CD or PHONO, make below.
  • Page 16 Selecting the SPEAKER system Using the PURE DIRECT switch RX-495 only Because one or two speaker systems can be connected to this You can enjoy the purest possible sound from your audio unit, the SPEAKERS switches allow you to select speaker sources by pressing this switch inward.
  • Page 17 TUNING OPERATIONS Normally, if station signals are strong and there is no interference, quick automatic-search tuning (AUTOMATIC TUNING) is possible. However, if signals of the station you want to select are weak, you must tune to it manually (MANUAL TUNING). AUTOMATIC TUNING MANUAL TUNING Select the reception band (FM or AM) confirming it on...
  • Page 18 PRESET TUNING MANUAL PRESET TUNING This unit can store station frequencies (selected by tuning operation) by using the PRESET STATIONS buttons. With this function, you can recall any desired station by only pressing the corresponding PRESET STATIONS button. Up to 40 stations (8 stations x 5 groups) can be stored.
  • Page 19 AUTOMATIC PRESET TUNING You can also make use of an automatic preset tuning function for FM stations only. By this function, this unit performs automatic tuning and stores FM stations with strong signals sequentially. Up to 40 stations are stored automatically in the same way as in the manual preset tuning method on page 18.
  • Page 20 EXCHANGING PRESET STATIONS You can exchange the places of two preset stations with each other as shown below. 2, 4 Example) If you want to shift the preset station on E1 to A5, and vice versa. Recall the preset station on E1 (by following the method of “To recall a preset station”...
  • Page 21 NOTES ABOUT THE REMOTE CONTROL TRANSMITTER Battery installation Remote control transmitter operation range Remote control sensor Within approximately 6 m (19.7 feet) Battery replacement If you find that the remote control transmitter must be used closer to the main unit, the batteries are weak. Replace both batteries with new ones.
  • Page 22 If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM...
  • Page 23 SPECIFICATIONS AUDIO SECTION Headphone Jack Rated Output/Impedance Minimum RMS Output Power per Channel Output Level (8 ohms, 0.04% THD) 8 ohms, 20 Hz to 20 kHz, 0.04% THD < > < > RX-495 .............0.48V RX-495 ...........70W+70W < > < > RX-395 .............0.45V RX-395...
  • Page 24 Usable Sensitivity (75 ohms) Image Response Ratio ...........40 dB (30 dB S/N Quieting, 1 kHz, 100% mod.) [Except Singapore model]......0.8 µV (9.3 dBf) Spurious Response Ratio ........50 dB DIN, Mono (S/N 26 dB) [Singapore model only] ................0.9 µV Harmonic Distortion (1 kHz) ........0.3% DIN, Stereo (S/N 46 dB) [Singapore model only] ................24 µV AUDIO SECTION...
  • Page 25 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN VU26730...
