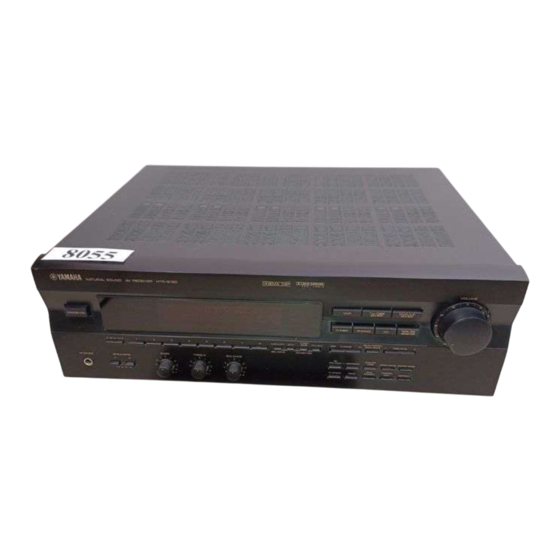

Yamaha HTR-5130 Owner's Manual

Natural sound av receiver ampli-tuner audio-video

Hide thumbs Also See for HTR-5130:

Owner's manual (42 pages)

Owner's manual (94 pages)

Service manual (55 pages)

page of 42

/ 42
Bookmarks

Quick Links

Download this manual

HTR-5130

HTR-5130RDS

NATURAL SOUND AV RECEIVER

AMPLI-TUNER AUDIO-VIDEO

OWNER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

BRUKSANVISNING

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

GEBRUIKSAANWIJZING

YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND

YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

Printed in Malaysia

V339080

YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

Need help?

Do you have a question about the HTR-5130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamaha HTR-5130

Page 1 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN Printed in Malaysia V339080 YAMAHA MUSIC AUSTRALIA PTY, LTD.
Page 2 SUPPLIED ACCESSORIES After unpacking, check that the following parts are included. ACCESSORIES FOURNIS Après le déballage, vérifier que les pièces suivantes sont incluses. MITGELIEFERTE ZUBEHÖRTEILE Nach dem Auspacken überprüfen, ob die folgenden Teile vorhanden sind. MEDFÖLJANDE TILLBEHÖR Kontrollera efter det apparaten packats upp att följande delar finns med. ACCESSORI IN DOTAZAIONE Verificare che tutte le parti seguenti siano contenute nell’imballaggio dell’apparecchio.
Page 3 Thank you for selecting this YAMAHA AV receiver. FEATURES 5 Speaker Configuration 3 Center Channel Modes (NORMAL/WIDE/PHANTOM) (Power Amp. Section) Main: 60W + 60W (8Ω) RMS Output Multi-Functions for RDS Broadcast Power, 0.04% THD, 20–20,000 Hz Reception HTR-5130RDS only Center: 60W (8Ω) RMS Output Power, 40-Station Random Access Preset Tuning 0.04% THD, 20–20,000 Hz...
Page 4 CAUTION : READ THIS BEFORE OPERATING YOUR UNIT. To assure the finest performance, please read this manual IMPORTANT carefully. Keep it in a safe place for future reference. Please record the serial number of this unit in the space below. Install this unit in a cool, dry, clean place –...
Page 5 For U.K. customers Special Instructions for U.K. Model If the socket outlets in the home are not suitable for the plug IMPORTANT supplied with this appliance, it should be cut off and an THE WIRES IN MAINS LEAD ARE COLOURED IN appropriate 3 pin plug fitted.
Page 6 PROFILE OF THIS UNIT You are the proud owner of a Yamaha stereo receiver – an extremely sophisticated audio component. The Digital Sound Field Processor (DSP) built into this unit takes advantage of Yamaha’s undisputed leadership in the field of digital audio processing to bring you a whole new world of listening experiences.
Page 7 SPEAKER SETUP SPEAKERS TO BE USED This unit is designed to provide the best sound-field quality with a 5 speaker configuration. The most effective speakers to use with this unit are main speakers, rear speakers and a center speaker. You may omit the center speaker. (Refer to the “4-Speaker Configuration”...
Page 8 L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this unit. * If you have YAMAHA components numbered as 1, 3, 4, etc. on the rear panel, connections can be made easily by connecting the output (or input) terminals of each component to the same-numbered terminals on this unit.
Page 9 Connecting an external decoder for Dolby Digital, DTS and other future formats or a DVD player, etc. If you have a separate Dolby Digital, DTS or other format decoder, or if you have a DVD player or other component which incorporates a Dolby Digital, DTS, or other format decoder, its 6 channel discrete outputs can be connected to the 6CH DISCRETE INPUT terminals of this unit.
Page 10 Connect the SUBWOOFER OUTPUT terminal of this unit to the input terminal of the subwoofer amplifier, and connect the speaker terminals of the subwoofer amplifier to the subwoofer. With some subwoofers, including the Yamaha Active Servo Processing Subwoofer System, the amplifier and subwoofer are in the same unit.
Page 11 How to Connect: Connect the SPEAKERS terminals to your speakers with wire of the proper gauge, cut as short as possible. If the connections are faulty, no sound will be heard from the speakers. Make sure that the polarity of the speaker wires is correct, that is the + and – markings are observed.
Page 12 SUBWOOFER OUTPUT terminal OUTPUT WOOFER This terminal is for connecting to the input terminal of an amplifier driving a subwoofer. This terminal outputs low frequencies from the main and center channels. (The cut-off frequency of signals output from this terminal is 150 Hz.) When 6 channel discrete signals are input to this unit and are selected as the input source, this terminal outputs signals from the subwoofer channel.
Page 13 ANTENNA CONNECTIONS Each antenna should be connected to the designated terminals correctly, referring to the following diagram. Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may result in improvement.
Page 14 CONTROLS AND THEIR FUNCTIONS FRONT PANEL Ÿ ⁄ @ ¤# ‹ NATURAL SOUND AV RECEIVER VOLUME TV/DBS DVD/LD 2CH/6CH 2CH/6CH STANDBY/ON TAPE/MD TUNER PHONO MONITOR –dB TUNING DELAY/CENTER/ A/B/C/D/E MEMORY EDIT MODE FM/AM DOWN TUNING REAR/SWFR TIME/LEVEL MAN'L/AUTO FM AUTO/MAN'L MONO BASS TREBLE BALANCE...
Page 15 › PHONES jack EON button HTR-5130RDS only To listen with headphones, connect the headphones to the Press this button to select a specified program type (NEWS, PHONES jack. The sound output from the PHONES jack is the INFO, AFFAIRS, SPORT) when you want to locate a radio same as that from the main speakers.
Page 16 DISPLAY PANEL Ÿ ⁄ @ ¤ PRESET SLEEP STEREO NORM ms dB WIDE PHANTOM 0 20 EFFECT OFF PRO LOGIC CONCERT MONO DISCO ROCK CONCERT MEMORY AUTO PTY HOLD NEWS INFO TAPE MON ENHANCED VIDEO MOVIE TV SPORTS CONCERT HALL EON AFFAIRS SPORT # ‹...
Page 17 The remote control transmitter provided with this unit is designed to control all the most commonly used functions of this unit. If the CD player and tape deck connected to this unit are YAMAHA components designed for remote control compatibility, then this remote control transmitter will also control various functions of each component.
Page 18 For Control of This Unit Program selector keys DELAY/CENTER/REAR/SWFR and TIME/LEVEL +/– keys PROGRAM: Adjust the delay time (DELAY), the center channel output level When the built-in digital sound field processor (including the (CENTER), the rear channel output level (REAR) and the Dolby Pro Logic Surround decoder) is on, this key changes the output level to the SUBWOOFER OUTPUT terminal (SWFR).
Page 19 SPEAKER BALANCE ADJUSTMENT This procedure lets you adjust the sound output level balance between the main, center, and rear speakers using the built-in test tone generator. When this adjustment is performed, the level heard at the listening position should sound the same from each speaker.
Page 20 TIME/ DELAY/CENTER – LEVEL TEST EFFECT /REAR/SWFR ON/OFF PROGRAM PROLOGIC ENHANCED TV/DBS DVD/LD /6CH PLAY DIR A DIR B REC/PAUSE TAPE – A/B/C/D/E TUNER PRESET PLAY DISC PHONO POWER VOLUME SLEEP Turn up the volume. Select the center channel output mode suitable for your speaker configuration.
Page 21 MAIN LEVEL switch HTR-5130RDS only If the main speakers are distinctly louder than the rear Adjust the sound output levels of the center speaker speakers even after making balance adjustments, it is and the rear speakers so that they sound as similar as possible to decrease the output level of the MAIN SPEAKERS possible to the level of the main speakers.
Page 22 From page 22 to 38, this manual describes how to operate this unit mainly by using the front panel control parts. To operate this unit on the remote control transmitter, use the corresponding keys on the remote control transmitter. BASIC OPERATIONS TO PLAY A SOURCE 1, 6 VOLUME...
Page 23 To listen to a source with Dolby Digital, DTS or other future format by reproducing the decoded signals input at the 6CH DISCRETE INPUT terminals of this unit. In step 3 on page 22, press either the DVD/LD or TV/DBS To stop listening to a decoded source with Dolby button once or more so that “6ch”...
Page 24 TO RECORD A SOURCE TO TAPE OR MD Select the source to be recorded. Begin recording on the tape deck (or MD recorder, etc.) or VCR connected to this unit. TAPE/MD If the tape deck (or MD recorder, etc.) is used for TUNER PHONO MONITOR...
Page 25 Selecting the SPEAKER system Adjusting the BASS and TREBLE controls Because one or two speaker systems (as main speakers) can English be connected to this unit, the SPEAKERS switches allow you to select speaker system A or B, or both at once. BASS TREBLE SPEAKERS...
Page 26 TUNING OPERATIONS Normally, if station signals are strong and there is no interference, quick automatic-search tuning (AUTOMATIC TUNING) is possible. However, if signals of the station you want to select are weak, you must tune to it manually (MANUAL TUNING). 3 2 4 MANUAL TUNING AUTOMATIC TUNING...
Page 27 PRESET TUNING English MANUAL PRESET TUNING This unit can store station frequencies selected by tuning operation. With this function, you can recall any desired station by selecting the preset station number where it is stored. Up to 40 stations (5 groups of 8 stations) can be stored. To store stations To recall a preset station Select the group of preset stations.
Page 28 HTR-5130RDS only A recalled station is shown by the MAN'L/AUTO FM frequency or station name in the display. MEMORY AUTO HTR-5130 only A recalled station is shown by the frequency in the display. Press and hold for Flashes. more than 3 seconds.
Page 29 EXCHANGING PRESET STATIONS You can exchange the places of two preset stations with each other as shown below. English 2, 4 Example) If you want to shift the preset station on E1 to A5, and vice versa. Recall the preset station on E1 (by following the method in “To recall a preset station”...
Page 30 In areas where RDS broadcasts cannot be received, the RDS broadcast functions do not operate. (The procedures from page 30 to page 34 are not necessary.) RECEIVING RDS STATIONS (HTR-5130RDS only) RDS (Radio Data System) is a data transmission system gradually being introduced by FM stations in many countries. Stations using this system transmit an inaudible stream of data in addition to the normal radio signal.
Page 31 English Program types in the PTY mode NEWS News: VARIED Varied: Short accounts of facts, events and publicly Used for mainly speech-based programs expressed views, reportage and actuality. usually of light-entertainment nature, not covered by above categories. Examples AFFAIRS Current affairs: are: quizzes, panel games, personality Topical program expanding or enlarging interviews, comedy and satire.
Page 32 Changing the RDS modes When an RDS station is received, “PS”, “PTY”, “RT” and/or “CT” that correspond to the RDS data services employed by the station light up in the display. By pressing the RDS MODE/FREQ button once or more, you can change the display mode among the RDS modes employed by the received station in the order shown below.
Page 33 Calling a program of your desired program type from among preset RDS stations (PTY SEEK) (HTR-5130RDS only) By designating a program type, the unit automatically searches all preset stations for an RDS station which broadcasts a program of that program type. * There are 15 program types to classify RDS stations.
Page 34 Setting this unit to automatically tune a specified program type when its broadcast starts (HTR-5130RDS only) This function uses the EON (Enhanced Other Networks) data service on the RDS station network. By selecting a desired program type (NEWS, INFO, AFFAIRS or SPORT), this unit automatically searches all preset RDS stations for a station that broadcasts that type of program in the background of tuner operations.
Page 35 In addition, this unit incorporates a Dolby Pro Logic Surround decoder for multi-channel sound reproduction of sources encoded with Dolby Surround. The operation of the Dolby Pro Logic Surround decoder can be controlled by selecting a corresponding DSP program including a combined operation of Yamaha DSP and Dolby Pro Logic Surround. Brief Overview of Digital Sound Field Programs The following list gives you a brief description of the sound fields produced by each of the DSP programs.
Page 36 Applying a digital sound field processor (DSP) effect to an audio source TIME/ DELAY/CENTER – LEVEL /REAR/SWFR TEST EFFECT ON/OFF PROGRAM PROLOGIC ENHANCED TV/DBS DVD/LD /6CH –dB PLAY DIR A DIR B REC/PAUSE TAPE – A/B/C/D/E TUNER PRESET DISC PLAY PHONO POWER VOLUME...
Page 37 Adjustment of the CENTER LEVEL If desired, you can adjust the sound output level of the center Notes speaker even if the output level is already set in “SPEAKER This adjustment can be made only when the digital sound BALANCE ADJUSTMENT” on page 19. field program DOLBY PRO LOGIC or DOLBY PRO LOGIC ENHANCED is selected.
Page 38 Adjustment of DELAY TIME You can adjust the time difference between the beginning of Press repeatedly until “DELAY” appears on the display. the sound from the main speakers and the beginning of the effect sound from the rear speakers. DELAY/CENTER/ REAR/SWFR The larger the value, the later the effect sound is generated.
Page 39 SETTING THE SLEEP TIMER If you use the SLEEP timer of this unit, you can have this unit automatically put in the standby mode after a set period of time. When you want to go to sleep while enjoying a broadcast or other desired input source, this timer function is helpful. Notes The SLEEP timer can be controlled only with the remote control transmitter.
Page 40 If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM...
Page 41 SPECIFICATIONS AUDIO SECTION Input Sensitivity/Impedance PHONO (MM) ............2.5 mV/47 k-ohms Minimum RMS Output Power per Channel (Power Amp. Section) CD/TAPE·MD/DVD·LD/TV·DBS/VCR ....150 mV/47 k-ohms (When both channels are driven) 6CH DISCRETE INPUT (EXTERNAL DECODER) Main L, R MAIN L/R ............150 mV/47 k-ohms 8 ohms, 20 Hz to 20 kHz, 0.04% THD ......
Page 42 VIDEO SECTION AM SECTION Video Signal Level ............1 Vp-p/75 ohms Tuning Range [U.S.A. and Canada models] ........530 to 1710 kHz Maximum Input Level ..........1.5 Vp-p or more [China and General models] (frequency step 10 kHz) .......... 530 to 1710 kHz Signal-to-Noise Ratio ............
