Summary of Contents for Security Tronix ST-ALLIN1-TEST2

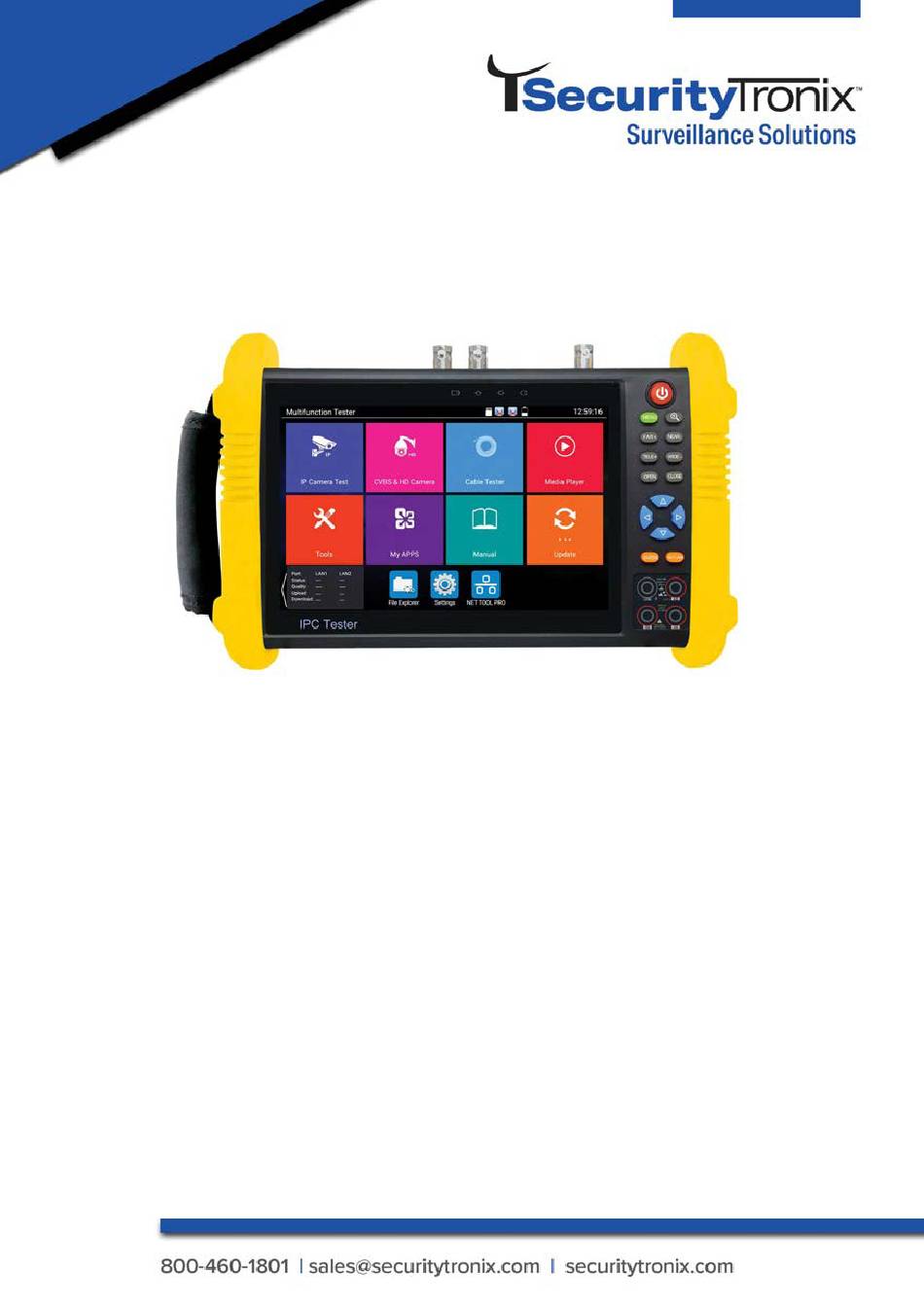

  • Page 1 ST-ALLIN1-TEST2 User Manual...
  • Page 2 Keep the S/N label for after-sale service within the warranty period. Please see the last page of the manual for warranty information. • If you have any questions or problems while using the ST-ALLIN1-TEST2 camera tester, please contact SecurityTronix technical support department at 610-429-0334 •...

  • Page 3: Table Of Contents

    Content 1. Safety information ......................1 2. IP Camera Tester Introduction ..................2 2.1 General ........................2 2.2 Packing list ......................3 2.3 Function interface ....................4 3. Operation ........................8 3.1 Installing the Battery ....................8 3.2 Instrument connection ..................... 9 3.2.1 IP camera connection ..................
  • Page 4 3.3.13 Color-bar generator (TV OUT)..............46 3.3.14 AutoHD ( *Optional ) .................. 48 3.3.15 HD Coaxial & Analog level test ( *Optional ) ..........48 3.3.16 SDI Camera Test ( *Optional )..............50 3.3.17 CVI camera test ( *Optional ) ..............51 3.3.18 TVI camera test ( *Optional ) ..............
  • Page 5 3.3.35 Media Player ................... 101 3.3.36 RTSP Player ................... 102 3.3.37 Hik test tool ..................... 103 3.3.38 Dahua test tool ..................107 3.3.39 Update ....................112 3.3.40 Office ...................... 113 3.3.41 LED Flashlight ..................113 3.3.42 Browser....................114 3.3.43 Notepad ....................115 3.3.44 System Setting ..................

  • Page 6: Safety Information

    ◆ The tester is intended to use in compliance with the local rules of electrical usage and avoid 1. Safety information applying at the places which are inapplicable for the use of electrics such as hospital, gas ◆ To prevent the functional decline or failure, the product should not be sprinkled or damped. station etc.

  • Page 7: Ip Camera Tester Introduction

    ◆When the tester is linked to a measurement circuit, do not touch unused terminals. ◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground. ◆At the manual range, when the value scale to be measured is unknown beforehand, set the ◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind range selector at the highest position.

  • Page 8: Packing List

    and IP address searching. You can use the blue cable tracer to locate individual connected cables from a bundle of cables. Test LAN cable for proper connection termination. Other functions include providing 30W PoE power to your camera, HDMI IN and OUT, CVBS loop test, testing IP and analog at the same time, LED Flashlight, DC 12V 3A, DC 24V 2A, power output and much more.

  • Page 9: Function Interface

    2.3 Function interface Press more than 2 seconds, turn on or off the device, short press to turn on or off the menu display The charge indicator: it lights red while the battery is being charged. As the charging is complete, the indicator turns off automatically The RS485 data transmission indicator: it lights red while the data is being transmitted The data received indicator: it lights red while the data is being received...
  • Page 10 Far focus: Focus on the image faraway Near focus: Focus the image nearby TELE: zoom in the image WIDE: zoom out the image Return/Close: Return or cancel while setting parameters of the menu, close or decrease the aperture Open/set, Confirm the setting of parameters, open or enlarge the aperture Upward, set function or add parameter.
  • Page 11 Top interface Bottom interface Visible red laser source emits Interface (Optional) DC12V3A power output, for provisional DC power supply Optical power meter interface (Optional) PSE power sources equipment. Tests PoE voltage/LAN test port PoE power supply output or LAN test port (Using test PoE or non-PoE IP camera) HD-SDI/EX-SDI input (BNC interface) (Optional) LED lamp CVBS IN/AHD /TVI/CVI Coaxial interface / （BNC interface ) (AHD /TVI/CVI (Optional) )
  • Page 12 instrument power off immediately. After restarting the instrument with the power key, it can be restored to normal use. RS485 Interface: RS485communication for the PTZ DC 24V 2A output DC 12V 2A charging interface. USB 5V 2A power output, transmit data Audio input interface.

  • Page 13: Operation

    3. Operation 3.1 Installing the Battery The tester has built-in lithium-ion polymer rechargeable battery. The battery cable inside the battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.

  • Page 14: Instrument Connection

    3.2 Instrument connection 3.2.1 IP camera connection Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester's LAN port, if the link indicator of the tester's LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are communicating.

  • Page 15: Analog Camera Connection

    3.2.2 Analog camera connection 1) Connect the camera's video output to the IP tester's VIDEO IN. The image will display on the tester after pushing the PTZ icon. 2) When the tester "VIDEO OUT" interface is connected to the Video input of monitor and optical video transmitter and receiver, the image will display on the tester and monitor.

  • Page 16: Hdmi In

    1) Connect the SDI camera's video output to the IP camera tester's "SDI IN" interface, the image will display on the tester. The tester only comes with SDI input interface. There is no SDI output interface. 2) Connect the SDI camera or the speed dome RS485 controller cable to the tester RS485 interface.

  • Page 17: Hdmi Output

    3.2.5 HDMI output Built-in HDMI OUT port can output video files, media files and screen displays etc. to a high- definition TV with a resolution of up to 4K 60FPS. The tester can send the image displaying from current analog camera, ip camera (universal definition) and SDI data camera and output to high-definition television.

  • Page 18: Drop-Down Menu

    Shortly press the key to enter sleep mode, press it again to test. If tester works abnormally and cannot be turned off, Press the key several seconds to turn off, the tester reset. 3.3.1 Drop-down Menu Press and slide at right top right corner twice to open shortcut menu. The shortcut menu includes POE power output, IP settings, Wi-Fi, HDMI IN, CVBS, Video OUT, LAN, Brightness, settings etc.
  • Page 19 TV OUT: Turn on or off TV OUT and enter windows, connect BNC cable to video out port, and enter TV OUT interface, support BNC loop test, can detect BNC cable continuity. IP setting: Turn on the IP setting LAN INFO: Display real-time upload or download speed of network port or WIFI Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings.

  • Page 20: Short Cut-Menu

    3.3.2 Short cut-menu You can call shortcut –menu by press tester's "menu" key, you can self- define shortcut -menu. Press the key , you can turn it on, switch functions, then press switch functions, then press to enter the app, to enter tap other areas on the screen, to exit the menu.

  • Page 21: Screen Capture

    3.3.3 Screen capture Long press the key "enter", can capture screen interface and save it at any time. You can go file management to view "file Explorer –SD card- Pictures—Screenshots".

  • Page 22: Link Monitor

    3.3.4 Link monitor Tap icon "Link Monitoring" at left corner on the screen to enter. It can detect instrument port rate 10/100/1000M, signal quality detection, upload and download speed, etc. in real time. It can be used to detect whether the network video access bandwidth of devices such as NVR is normal.

  • Page 23: Testerplay

    Advanced link monitor It is for monitoring CVBS loop, Ethernet statistics, error frame statistics, frame length etc. 3.3.5 Tester Play Mobile screen projection (Only for android version) The meter creates WIFI hotspot, connects mobile phone to the tester's WIFI hotspot, or the tester and mobile phones connect to the same Wi-fi network.
  • Page 24 PC screen projection: Install VLC player in the PC, turn on the VLC player "Media - Open Network Streaming", and input the RTSP address of on the top instrument two-dimensional code, click "play" to view the screen real-time projection.

  • Page 25: Ip Discovery

    IP discovery 3.3.6 Press IP discovery Press IP discovery , tester auto-scan the whole network segment IP, as well as auto-modify the tester's IP to the same network segment with the scanned camera's IP. Local IP: Tester's IP address, Tester can auto-modify the tester's IP to the same network segment with the scanned camera's IP Discovery IP: Connected tester equipment's IP address.

  • Page 26: Ipc Test Pro

    IPC Test pro 3.3.7 Camera tests often need to open multiple apps, while the "IPC TEST PRO" app uses new technology and combines multiple functions to one APP, it can increase efficiency. Application: Support multi-segment IP address scan, can visual display camera manufacturer, click IP address to play the image.
  • Page 27 auto login camera and display camera images. Factory default use admin password to auto login, if you modify the password, then default use the modified password to log in. If you select ONVIF Rapid mode, the meter automatically scans different network segments for ONVIF cameras.
  • Page 28 Activate HIKVISION Camera: When connected inactivated HIKVISION Camera, tester can auto recognize, and prompt "The camera has not been activated, activated now?", click "OK" to start activating. Pop-up settings menu when click the "ONVIF setting" icon in the upper left corner. Cross network scan: After opening this function, enter "Setting - IP Settings - Advanced"...
  • Page 29 Auto Login: After opening this function, the tester can auto login camera and display camera images. (The login password is the same as last time, the first-time using password is the default password "admin") Video transmission protocol: UTP and TCP protocol. Open password cracker: Cracks password of cameras.
  • Page 30 IP camera video settings: Click "Video Set" to enter the IP camera's encoder and resolution settings. Make the desired changes and click "OK" to save. Image setting: Click "Imaging Set" to adjust image brightness, saturation, contrast, sharpness and backlight compensation mode.
  • Page 31 Profiles: Click "profiles", can view video streaming current configuration files, as well as switch between Major stream and minor stream. Preview pictures: Quickly preview and zoom in or out pictures, automatically and manual refresh. Identification: Click "Identification" to view information of the camera.
  • Page 32 Time set: Click "Time set", Select "Manual set" to set up the time of camera. Maintenance: For camera software reset or restore to factory settings. User Set: Modify camera username, password etc. parameters. Network setting: Click "Network Set" to change the IP address. Some cameras cannot support changing IP addresses, so there is no change after saving.
  • Page 33 When the image is enlarged, if not operated on touch screen, it can operate by the keyboard, press the key to zoom in, press the key to zoom out, press upward and downward key to move image. If it is network video input to the tester, as the tester supports resolution up to 1080p, the input image will be very clear after it is enlarged.
  • Page 34 Playback: Click the "Playback" icon to view saved videos. Double click the video you want to play. Click to return to the last menu. To rename or delete a photo, click and hold on the file until this screen appears: OSD Menu: Select OSD and pop up the OSD menu.
  • Page 35 After channel selecting, you can edit the channel name, modify the display position, and switch the font size. Selecting "default location" in "content location" is without modification. Select "Customization" to arbitrarily adjust the channel name and display location. Click "OK" and the effects will appear.
  • Page 36 Set preset position: Move the camera to preset position, enter the preset number on the Bottom right corner to complete position preset. Call the preset position: Select the preset number on the left, click "Call" to call preset. PTZ Speed set: Horizontal and Vertical Speed set. RTSP: Get RTSP address of the current camera...
  • Page 37 Doc: Auto generate test reports document of camera, click "generate document". Click Preview to view the report document. Enter the camera test information, click "Generate Document" to complete the report. Click the “Doc" menu again, you can preview the report document.

  • Page 38: Non Onvif

    Icons description: The description of function icons on the bottom toolbar. 3.3.9 NON ONVIF Display image from the 8K H.265 camera by mainstream Click icon Click icon to enter IP camera test to enter IP camera test Note: Currently, the IPC Test App only supports some brands' specific IP cameras, these include specific models made by ACTI, AXIS, Dahua, Hikvision, Samsung, and many more.
  • Page 39 Local IP: This is the tester's IP address. Click "Edit" to enter the “IP setting" and change the tester's IP address settings. IP camera type: Click on the IP Camera type to select the Manufacturer and model number of the integrated IP camera. "Manual": Click IP camera type, list Honeywell, Kodak, Tiandy, Aipu-waton, ACTi, WoshiDA IP camera etc.
  • Page 40 IP Camera's IP: Enter the IP camera's IP address manually or click "Search" to auto-scan for the IP camera's IP address. It is better to directly connect the IP camera to the tester so the search results will only display the camera's IP address. If the tester is connected to a PoE switch, it will find and display several IP addresses.

  • Page 41: Hdmi In ( *Optional )

    If IP address setting has error or IP camera is not connected. The tester prompts "Network Error" Click Error" Click to quit from image display and return to IP camera test interface. to quit from image display and return to IP camera test interface. Once you are viewing video on the IPC Test app, you will see the "Video Menu"...
  • Page 42 (1) Snapshot Click the icon "Snapshot", when the video is in, to take a picture and save the current video frame in the SD card as JPEG file. If the unit is set to the manual mode an "Input Name" pop up box will appear, and you can enter a title for the snapshot.
  • Page 43 (2) Video record When you click the "Record" icon, the video starts recording. A red recording icon appears on the screen and begins to flash, and a timer appears indicating the time elapsed for the video. Click on the "Record" icon again to stop recording and save the video file to the SD card. if select manual storage, before recording begins, appears dialog box "Input Name", user-defined the files name (by Chinese character, English letter or digit) to store in TFT card, tester will hereby store the files in TFT card after recording.
  • Page 44 To rename or delete an image, click and hold on the file until this screen below appears Click Click to close and return to PTZ controller. to close and return to PTZ controller. (4) Recorded video playback Click the "Playback" icon to view your recorded videos. Tap on the video file image you want to watch.

  • Page 45: Vga In

    3.3.11 VGA IN VGA in HD signal test, Tap icon “ ”to enter When the tester receives VGA in image, the top tool bar shows the resolution of this image. You can select “resolution” to set resolution in the setting menu. Tap screen by twice, full image display.
  • Page 46 Select relative function on the right side Toolbar to operate, functions including "Photos", "Snapshot”, "Record", "Playback", "PTZ", "Set". Click Click , or press to quit. Click the screen twice quickly, can be full zoom in on the touch screen. 1) PTZ controller parameter setting Select and click icon "PTZ", to enter PTZ setting: A.
  • Page 47 D. Address Set the ID according to the ID of PTZ camera (0~254), the setting address data must be consistent with the speed dome address. E. Pan speed: Set the pan speed of PTZ camera (0~63) F. Tilt speed: Set the tilt speed of PTZ camera (0~63) G.
  • Page 48 2) Video and storage setting Click icon "set", to enter and set analog video image brightness, contrast, color saturation, as well as the file storage way after snapshot and recording, support auto-storage and manual storage. When selecting manual storage, the user can name and store the files. 3) 4 x zoom image display and Video out When image input, press When image input, press...
  • Page 49 If you do not use touch screen to operate, press the key not use touch screen to operate, press the key to zoom out, press the key to zoom press the key to zoom in, press upward and downward key to move the image. For analog video input, as the resolution is 720*480, it is normal that the zoom in image is not clear.
  • Page 50 user-defined the files name (by Chinese character, English letter, or digit) to store in SD card, tester will hereby store the files in SD card after recording. If select "Auto-storage", tester will auto store the files in SD card after recording. (6) Photo Click the icon "photo"...

  • Page 51: Color-Bar Generator (Tv Out)

    Click Click to close and return to PTZ controller. to close and return to PTZ controller. (7) Recorded video playback Click the "Playback" icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears: Video files also can play on the main menu, "Video Player".
  • Page 52 Click the selected color-bars, testing image or single bar (red, green, blue, white or black). Double click to full display on the screen and output, click Double click to full display on the screen and output, click to return main menu. to return main menu.

  • Page 53: Autohd (*Optional)

    3.3.14 AutoHD (*Optional) Auto-recognize the resolution and Auto-display the image of the connected camera. Support c oaxial PTZ control and call OSD menu, support up to 8MP TVI/CVI/AHD and CVBS cameras. 3.3.15 HD Coaxial & Analog level test (*Optional) Through hardware high-speed sampling and processing technology, accurately measure video peak level, sync level and burst level.
  • Page 54 Image display: Select the camera type, no need to select the resolution, click the camera icon, can browse the camera image directly. Level Meter Test: Need to select the camera type and resolution, click "test" to test the level Color bar generation: Click "CVBS", quickly enter color bar generation app Test Result：The percentage and signal grid of the level value.

  • Page 55: Sdi Camera Test (*Optional)

    3.3.16 SDI Camera Test (*Optional) SDI camera test, Dome camera test and PTZ control, click icon SDI camera test, Dome camera test and PTZ control, click icon to enter. to enter. When the tester receives an SDI camera image, it will display the image data. Double-taps on the screen to make the image displayed full screen.

  • Page 56: Cvi Camera Test (*Optional)

    The tester supports resolution as follows: 1280x720P 25Hz, 1280x720P 30Hz, 1280x720P 50Hz, 1280x720P 60Hz, 1920x1080P 25Hz 1920x1080P 30Hz, 1920x1080I 50Hz, 1920x1080I 60Hz, EX-SDI: 2560x1440P /25/30FPS, 3840x2160 20/30FPS. IPC tester's HDMI output port can be used as SDI to HDMI converter, output HD SDI image to HD TV monitor.

  • Page 57: Ptz Control

    （1）PTZ control 1.1 Coaxial PTZ control Click the icon "PTZ" on the right toolbar to do the corresponding setting. "Port": select coaxial control Enter PTZ address to perform parameters setting Operation instructions, please refer to "3.3.8 PTZ (1) Video monitor test"...
  • Page 58 The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC tester can test. After setting the parameter, the tester can control the PTZ and lens. To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction, PTZ cameras will rotate accordingly.
  • Page 59 Call preset position Tap the preset position: Tap the preset position area, input preset position number. Tap "call position" to complete call preset position.
  • Page 60 1.2 RS485 control Please refer to "3.3.8 PTZ (1) PTZ control parameters setting". （2）Coaxial camera menu setting Tap icon "UTC", select "menu setting" to enter the dome camera menu.
  • Page 61 Input calling dome camera menu address code, after finishing the parameter settings, you can press the key press the key or click the icon or click the icon to call the dome camera menu. Press arrow keys Press arrow keys Press arrow keys Press arrow keys Press arrow keys...
  • Page 62 (3) Snapshot, record, photo viewer and video play back, please refer to "3.3.8 PTZ (1) Video monitor test". Tap "close menu" or press the key " " to close camera menu. (4) Save setting Click icon "Set" on the right toolbar to enter storage setting. Support auto-storage and manual storage.

  • Page 63: Tvi Camera Test (*Optional)

    3.3.18 TVI camera test (*Optional) HD TVI camera, TVI dome camera test and PTZ control, click icon icon to enter to enter The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS / 1920x1080P 50FPS / 1920x1080P 60FPS //2048x1536P 18FPS/2048x1536P 25FPS/2048x1536P 30FPS /2560x1440P 15FPS/2560x1440P 25 FPS/2560x1440P 30FPS/2688x1520P 15FPS/2592x1944P 12.5FPS/2592x1944P 20FPS/3840 x 2160P 12.5/15 FPS...
  • Page 64 Input calling dome camera menu address code, after finishing the parameter settings, you can press the key press the key or click the icon or click the icon to call the dome camera menu. to call the dome camera menu. More operation instructions (such as PTZ control, coaxial camera menu setting, snapshot, recording and playback etc.), please refer to "3.3.6 CVI camera test".

  • Page 65: Ahd Camera Test (*Optional)

    3.3.19 AHD camera test (*Optional) AHD camera, AHD dome camera test and PTZ control, click icon icon to enter to enter The tester supports resolution as follows: 1280x720P 25,30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS/2048x1536P 18,25FPS/2048x1536P 30FPS /2560x1440P 15 FPS/2560x1440P 25,30 FPS/2592x1944P 12.5,20FPS/3840 x 2160P 15FPS (1) Coaxial PTZ control UTC control: select "PTZ control or PTZ control-2"(AHD camera has two different order, if...

  • Page 66: Net Tool Pro

    If to coaxial PTZ control the AHD camera, no parameters setting is needed. More operation instructions please refer to "3.3.17 CVI camera test" 3.3.20 NET TOOL PRO NET TOOL PRO-Cable Test, Wireless Tool, Link Tool, Full Duplex Detection, PING, IP Scan, DHCP Server, PPPOE, OUI Search, Socket Tool, DNS, LLLDP.

  • Page 67: 2）Ping Test

    （2）PING Test PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network equipment's Ethernet port is working normally, and the IP address is correct. Connect a network cable to the LAN port and click the d click the icon to open the PING tool.

  • Page 68: 3）Network Test (Ethernet Bandwidth Test)

    Application: PING testing is the most conventional network debugging tools. It is used for testing if the connected IP camera or other network equipment's Ethernet port is working normally, and the IP address is correct. It's normal that the first data packet will be lost when the test start. （3）Network test (Ethernet bandwidth test) To use the Network tester, you will need two IP testers.
  • Page 69 b). Start send packet test: Using the other IP tester, type in the Server's IP address at the top right corner of the screen. This app is used to send packets for network speed testing. Click the "Start" button to send the packets and start testing. Network bandwidth testing can also be tested with a computer using compatible network bandwidth testing software.
  • Page 70 Tester as Client, tester's IP address is:192.168.0.238. The Server and the Client are at the same network segment, but with different IP address. Input Server's IP address 192.168.0.39 in the tester and click "Start" to test network bandwidth. Or use tester as a Server, computer as test Client（select Client, input tester's IP address to test）...

  • Page 71: 4）Port Flashing

    （4）Port Flashing Connect a network cable to the meter's "LAN" port, click the icon Connect a network cable to the meter's "LAN" port, click the icon to open the Port to open the Port Flashing app. Click "Start". The IP tester sends a unique signal to make the connected LAN port of the switch flash.

  • Page 72: 5）Dhcp Server

    Application: The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent insertion or disconnection of the non-corresponding cable to artificially interrupt network connection.

  • Page 73: 7）Link Monitor

    Click "start" to trace the goal address （7）Link monitor Click the Click the icon to open the Link Monitor app. This app is used to see if an IP address is icon to open the Link Monitor app. This app is used to see if an IP address is occupied by other network devices.

  • Page 74: Power Management V2.0

    Application: Add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment working normally. Link monitor can check if the new IP address is occupied. 3.3.21 Power management V2.0 PoE 48V OUT PoE power output, to use the PoE Power Output function, click the screen and change the...
  • Page 75 Notice 1. Ensure that the network cable connected to the PoE power output port (LAN port) of the instrument is a straight-through cable and not short circuit; otherwise, the instrument may be damaged. 2. Before turning on the PoE power output, please make sure the IP camera supports PoE power.
  • Page 76 After exiting the "DC 24V" screen, the 24V power supply is still on, and the "24V is on" is displayed in the instrument suspension window until the instrument sleeps or enters the "DC 24V" screen and clicks to turn off the power output. Notice: a.
  • Page 77 PSE IN Connect a network cable from a PoE switch to the IP tester's PSE IN port. Connect an IP camera or other PoE using node to IP tester's LAN port, the PoE voltage and Power supply protocol Standard 802.3af/at or non-standard and the cable's pin connection status show on the screen.
  • Page 78 Note: This test is for measuring the voltage being drawn by the PoE node and the IP tester must be between the PoE switch and the PoE node for this test to work. Note: The PoE switch must be connected to the PSE IN port. The powered device such as IP camera or other PoE node must be connected to the LAN port.

  • Page 79: Poe Power / Dc12V 3A And Dc 5V 2A Usb Power Output

    Warning: Not allow a connected device with input power over 17V to tester "12V IN" port, otherwise it will damage the machine 3.3.22 PoE power / DC12V 3A and DC 5V 2A USB power output When the tester is turned on, the DC 12V and DC 5V power output functions are automatically turned on.

  • Page 80: Cable Test

    Note: 1. Don't input power into the "DC12/3A OUTPUT" port. 2. Don't output this DC12V/3A power to the DC12V/IN port of the IP camera tester to avoid destroy 3. The IPC tester power output is close to 3A, if the IP camera's power is over 3A, the tester will auto enter protection mode.
  • Page 81 Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed. The number of the cable tester is 255. If need several different number other types cable testers, we should pay the additional cost.

  • Page 82: Rj45 Cable Tdr Test

    3.3.24 RJ45 cable TDR test Connect cable to tester's LAN port, click icon " Connect cable to tester's LAN port, click icon " " to enter RJ45 cable TDR test app. " to enter RJ45 cable TDR test app. Single test: Test cable status, length and attenuation. Repeat test: Continue to test cable status, length and attenuation.
  • Page 83 Advanced Test: Test cable pair status, length, attenuation, reflectivity, impedance, skew and other parameters. Attenuation reflectivity: After linking up, if reflectivity value is 0, it is the best quality communication Impedance: After linking up, if the impedance value is 100Ω, it is the best quality communication, the range is generally in 85-135Ω.

  • Page 84: Cable Tracer (*Optional)

    3.3.25 Cable Tracer (*Optional) Connect tested cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the bottom. Click icon the bottom. Click icon to enter, click the Number on the screen to adjust audio type. to enter, click the Number on the screen to adjust audio type.

  • Page 85: Tdr Cable Test (*Optional)

    Application It's convenient for people to find out the other end of the cable from the messy cables in security maintenance and network engineering. While searching BNC cable, connect one port of the alligator clips to the copper core or copper net of the BNC cable, the other one to connect the earth wire (barred windows).
  • Page 86 (1) Curved trajectory 1) Curve result analysis Inflection point: The position of break point or short-circuit of the cable, is where curve suddenly rises or falls after the smooth curve. Short circuit: The curve shows an upward trend after the inflection point Open (break point): The curve shows a downward trend after the inflection point 2) Curve operation Zoom: Zoom the curve.
  • Page 87 User-defined calibration: Choose the cable 100 meters to 200 meters (more than 50 meters), click "Cable", "Type" to select user-defined 1 for calibration, 11 groups user-defined can be set. 1. Select user-defined and click "Calibration" to enter test, click "user-defined 1" can define cable name, such as: AiPu BNC-5 2.

  • Page 88: Cable Length (*Optional)

    click "Save" to save calibration data. It can be used for the same cable testing next time. Application: TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is open circuit or short-circuit, reflected pulse is generated, the tester receives and deals with the reflected wave, measurement results displayed on the screen.
  • Page 89 1. Open circuit test Click icon enter cable length interface. Support BNC cable, network cable, RVV control cable, Telephone line and TVVB cable etc test. 11 groups user-defined cable can be set. Click “Cable name” to select the cable type, click “Length test”...
  • Page 90 Connect the network cable or telephone cable with the RJ45 connector to the UTP network port at the bottom of the tester. when testing, please select cable type “UTP CAT 5E（4pair） or UTP CAT 6E(4pair). Short circuit test: Select cable type “UTP CAT 5E/6E (4 pairs), check the short circuit of cores 1 to 8 of the network cable.
  • Page 91 2. Calibration Due to differences in production processes and materials, etc., the cable impedance of different manufacturers of the same type may be different, which will cause a large deviation in the test results, at this time, the calibration function can be used. 3.

  • Page 92: Bnc Attenuation Test (*Optional)

    After getting the correct measurement results, click "Calibration", enter the new cable name, select the cable type corresponding to the cable, fill in the wave speed measured, and press "OK" to save. If incorrect data is saved, you can click Reset to restore the wave speed of all cables to the factory default.
  • Page 93 Test Methods: 1.Connect the two alligator clip cables to the CVBS IN port and CVBS OUT port separately. Two crocodile clips red to red and black to black clip together, then click "calibration" to calibrate it. 2. After calibration, the red clip clips the copper core of the BNC cable, and the black clip clips the outer envelope of the BNC cable.

  • Page 94: Digital Multi-Meter (*Optional)

    3.3.29 Digital Multi-meter (*Optional) Click icon Click icon to enter. to enter. 1) SYMBOLS: U: DC Voltage Measuring A: DC Current Measuring Ω: Resistance Measuring : Diode Testing : AC Voltage Measuring : AC Current Measuring : Continuity Testing : Capacitance Measuring...
  • Page 95 AC/DC Voltage and current measurement state display The Multimeter auto adjusts the range by input signal or tested Auto- range components Data hold Hold data Relative Display the relative measurement value measurement Press the key to changing display state 10A socket In 10A current measurement state, indicate use 10A socket The current measurement value over the range, if in the Auto range Over range...
  • Page 96 B. AC Voltage Measuring WARNING! You can't input the voltage which more than 660V AC, it's possible to show higher voltage, but it may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage. a.
  • Page 97 c．Manual range: 0.000mA  6.6mA range 00.00mA  66.00mA range 000.0mA  660.0mA range  10.00A range（use 10A socket） 00.00A d. Select the range to enter current measurement NOTE:  When only the figure "OL" is displayed, it indicates an over range situation and the higher range has to be selected.
  • Page 98 c. Manual range: 0.000mA  6.600mA range 00.00mA  66.00mA range 000.0mA  660.0mA range  10.00A range（use 10A socket） 00.00A Note:  When only the figure "OL" is displayed, it indicates an over range situation and the higher range has to be selected. ...
  • Page 99 000.0Ω  660Ω range 0.000 KΩ  6.600KΩ range 00.00 KΩ  66.00KΩ range 000.0 KΩ  660.0KΩ range 0.000 MΩ  6.600MΩ range 00.00 MΩ  66.00MΩ range F. Continuity Testing WARNING! When testing the circuit continuity, be sure that the power of the circuit has been shut down and all capacitors have been discharged fully.
  • Page 100 e. Tested diode, forward voltage low 30m, there is sound indication, then can finish the testing quickly without viewing the screen. H. Capacitance Measuring WARNING! To avoid electric shock, be sure the capacitors have been discharged fully before measuring the capacitance of a capacitor. Ω...
  • Page 101 While testing the capacitance of a capacitor to 660uF, the Max time will be 6.6 seconds, if the capacitor is leaked or damaged, the data can't be read. The tester will be normal after disconnecting the capacitor. Manual range and Auto range When testing, click "Range select"...

  • Page 102: Optical Power Meter (*Optional)

    work. If input voltage over 600V, it will damage the meter.  mA current fuse range: 250V 1A If the current over the rated range, the fuse will melt to protect the meter. Pls use the same model when changing the fuse, Pls open the battery cover to change. Note: 10A socket without fuse protection, if over the current range Wrong using the 10A socket to measure the voltage, will damage the meter.
  • Page 103 Relative power value (optical link loss) measurement While testing, set the wavelength for measurement. Click "relative"(difference) to test, the tester Auto save current fiber power value as the base reference value. Input another optical fiber to be measured, the displayed new measurement and relative value is red color. Press it again to quit.

  • Page 104: Visual Fault Locator (*Optional)

    3.3.31 Visual Fault Locator (*Optional) Click icon Click icon to enter to enter VFL four status can select” Steady mode", "Evasive 1Hz","Evasive 2Hz"and "Time off". Click button "Steady mode" to enter steady status, click button "Evasive 1Hz" and "Evasive 2Hz", to enter pulse mode, click button "Time off, VFL is turned off.

  • Page 105: Audio Record

    3.3.32 Audio Record Connect an audio device to the IP tester's audio input port. Click the Connect an audio device to the IP tester's audio input port. Click the icon to enter the icon to enter the Audio Recorder app. Click the red button to stop, and the unit will prompt you to save the recording.

  • Page 106: Media Player

    3.3.35 Media Player Click the icon Click the icon to enter to enter The Media player can browse video and image files. It supports the video formats of MP4, H.264, MPEG4, and MKV. The IP tester recorded files can play directly via the Media player. The Media player will automatically display the video files from the SD card.

  • Page 107: Rtsp Player

    3.3.36 RTSP Player The RTSP Player app will allow you to view the RTSP video stream from an IP camera. If you are unable to view your camera via the ONVIF or IPC Test apps, it is possible your camera will have an RTSP stream, and you can view live video.

  • Page 108: Hik Test Tool

    Local IP: This is the IP testers IP address. RTSP Add: This is where you can manually enter the IP camera's RTSP URL or click on Search to search the network for cameras that use an RTSP stream. IPC Username: Enter the IP camera's username. IPC Password: Enter the IP camera's password.
  • Page 109 "Activation" and "Batch activation" are optional. Auto open ONVIF protocol: After activation, the new HIK cameras click "play, modify the channel name, modify network information, modify user information" any one of two auto open the selected camera ONVIF protocol. Play: Security status shows the "activated" camera. Enter the correct camera password in the right [password] and click [play] to pop up the "private protocol"...
  • Page 110 Modify channel name: Clicking "Modify the channel name" will pop up OSD settings, including time, channel name and other optional items. After channel selecting, you can edit the channel name, modify the display position, and switch the font size. Selecting "default location" in "content location" is without modification. Select "Customization"...
  • Page 111 Modify network information: Support "modify" and "batch modify" camera IP address, subnet mask and other parameters modification. Enter a new IP address and subnet mask, the default gateway will be auto modified according to the IP address. Click "OK" to save the changes.

  • Page 112: Dahua Test Tool

    Modify user information: Modify the camera's username and password. Factory Reset: Camera factory reset. 3.3.38 Dahua test tool Dahua test tool is developed for installation and debugging of the Dahua IP camera, it can display image, and modify IP, username and password etc. Making Dahua camera test more convenient and quicker.
  • Page 113 Activate and Batch activate are optional, support reserved phone numbers for resetting password. Play: When mode displays "activated" camera, input correct password, click "Play" poping up "private protocol" and "ONVIF", Select correspond protocol to view the camera image.
  • Page 114 Modify Channel: Click "Modify Channel", will pop up OSD setting, including time, channel name, etc. After selecting Channel name, can edit channel name, modify the display position and font size. If select "Default position" of Content location, then no need to modify. If select "customize", then can modify Channel name and display position, click "OK"...
  • Page 115 Modify Network: Support Modify, and batch modify two ways, can modify camera IP address, Subnet mask and gateway. Input new IP address, need to input password, click "OK" to save the modification...
  • Page 116 Modify user information: Modify camera username and password, which is onvif, Dahua test tool, IPC TESTE username and password, not web user name and password. Factory reset setting: Camera will be soft reset, and the device's username, password and network set be saved. Other settings information is factory reset.

  • Page 117: Update

    3.3.39 Update Copy the downloaded update file to SD card "update" directory, if there is no directory, please create one. Click the Click the icon to open the Update menu. Select "Local Update" to update via the SD icon to open the Update menu. Select "Local Update" to update via the SD card or select "Online Update"...

  • Page 118: Office

    Update online: Before using online update, you need to enter settings-user management to register first. System update: Connect the Internet to update systems. 3.3.40 Office Quick office app (support excel, word, ppt format) doc. editable 3.3.41 LED Flashlight It is convenient for the installation or maintenance in the evening or in the dark. Click icon Click icon to enter...

  • Page 119: Browser

    While in the flashlight app, click the red button to turn on the LED lamp. Press it again to turn it off. If you don't press the red button off. If you don't press the red button to shut off the lamp and press the button to exit the to shut off the lamp and press the button to exit the app, the lamp will stay on.

  • Page 120: Notepad

    3.3.43 Notepad Notepad can be used to record the important testing results, click the key "Save" to save the contents. Notepad can auto record the storage date and time. Please click Please click to view the notepad, all saving contents display. Click each record bar to to view the notepad, all saving contents display.

  • Page 121: System Setting

    3.3.44 System Setting Click icon Click icon to enter to enter Language: Select your desired language: English, Chinese, Korean, Russian, Italian, Polish, Spanish, French or Japanese, German, Turkish, etc. Typewriting: You can select typewriting or install other typewriting: Date/Time: Set the Date/time of the IP tester IP setting: Manually set the IP address, Subnet Mask, Default Gateway and DNS address or select "Dynamic allocation"...
  • Page 122 and then click "Add " to enter another IP address for the IP tester. After setting an advanced IP address (refer to the photos above), the unit can test two network segments (192.168.5.0) and (192.168.1.0) WLAN Net: Turn Wi-Fi off or on by pressing the "Open the Wi-Fi" button. Once Wi-Fi is turned on, and click connected WIFI, it will scan for wireless networks in your area.
  • Page 123 Wi-Fi hotspot: Input "SSID" name and "password", and then click "ok" to create Wi-Fi hotspot. Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings. Volume: Set volume level SD Card: Displays SD Card Capacity. You can also format the SD card or unmount it before removing it.
  • Page 124 FTP server: Once the IP tester connects to a network, a computer can be used to read the SD card files via FTP Start the FTP server and then input the tester's FTP address in the PC's address bar. This will enable the PC to read, copy and edit the files from the SD card without the use of SD card reader.

  • Page 125: File Explorer

    Online Registration: Online update needs register first, after the tester connects to network, then fill registration information to register. User Feedback: If you have any comments or suggestions for the tester, please connect it to the network and write your feedback. Lock Screen: The meter default is not locked.
  • Page 126 Browse It includes Music, Videos, Pictures, Documents, zip file etc. It is convenient to view and manager. FTP server You can choose an internal or external SD card. Other operation details, please refer to FTP settings.

  • Page 127: Audio Test

    3.3.46 Audio test You can test the audio input from audio pickup devices by connecting the audio pickup device to the IP tester with the supplied audio cable. 4. Specifications 4.1 General Specifications IP Camera Tester【*】models Optional Model Display New 7-inch retina touch screen, 1280*800 resolution Network Port 10/100/1000M auto adjustment, RJ45, Dual LAN port WIFI...
  • Page 128 DH test tool Batch activate Dahua camera, batch modify IP, modify Channel, username and password parameters etc. IP camera type ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer Auto HD* (Optional) Auto-recognize the resolution and Auto-display the image of the connected camera.
  • Page 129 Analog video test 1 channel BNC Input & 1 channel BNC Output, NTSC/PAL (Auto adapt) Video level meter PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for CVBS camera. Zoom Image Supports Analog and IP camera image zooming & movement Snapshot, Video Capture current images and record live video as JPG file.
  • Page 130 more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red, green, blue, white and black color) UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen Data monitor Captures and analyzes the command data from controlling...

  • Page 131: Multi-Meter Specifications

    *(Optional) telephone cable test max test length up to 3KM, (Cable’s short-circuit test not supported) BNC attenuation Through hardware high-speed sampling and processing test *(Optional) technology, test coaxial cable transmission attenuation value, detect the transmission quality of BNC cable. POWER External power DC 12V 2A supply...
  • Page 132 DC voltage Range Accuracy Resolution 660mV (Manual range) 0.1mV 6.600V ±（0.3%+4） 66.00V 10mV 660.0V 100mV AC voltage Range Accuracy Resolution 660.0mV (Manual range) ±（1.5%+6） 0.1mV 6.600V 66.00V ±（0.8%+6） 10mV 660.0V 100mV DC current Range Accuracy Resolution 6.600mA 66.00mA 10uA ±（0.5%+3） 660.0mA 100uA 10.00A...
  • Page 133 Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±（0.8%+5） 6.600KΩ 1Ω 66.00KΩ 10Ω ±（0.8%+2） 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ 10KΩ ±（1.2%+5） Continuity Range Resolution Function The measurement value less 30Ω±3Ω, the tester 660.0Ω 0.1Ω will sound Diode Range Resolution Function Schottky diode:0.15~0.25V 2.0V rectifier diode:0.6~1.0V triode PN junction:0.5~0.8V...

  • Page 134: Optical Power Meter Specifications

    Capacitance Range Accuracy Resolution 6.600nF ±（0.5%+20） 66.00nF 10pF 660.0nF 100pF ±（3.5%+8） 6.600μF 66.00μF 10nF 660.0μF 100nF 1μF 6.600mF ±（5%+8） 10μF 66.00mF 4.3 Optical power meter specifications -70～+10dBm Measure Range(dBm) Wavelength(nm) 850nm,1300nm,1310nm,1490nm,1550nm,1625nm Detector InGaAs ＜±3%dB(-10dBm,22℃) Uncertainly ＜±5%dB(full range,22℃) Display Resolution Linear:0.1% ; Nonlinear:0.01dBm -10～+50 Operating Temperature (℃) -20～+70...

  • Page 135: Visual Fault Locator Specifications

    4.4 Visual fault locator specifications Laser type Wavelength Calibration 650nm Output power 5mW（Optional 10mW,20mW） Modulation mode CW/1Hz/2Hz Measurement Range 5KM（Optional 10-20KM） Connector FC/PC exchangeable －10℃～+50℃ Working Temperature Operating Temperature -20℃～+70℃ The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to call the Technical Department of our company.

  • Page 136: Warranty

    5. Warranty 5.1 SecurityTronix 2-Year Limited Warranty SecurityTronix. (the "Company") warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without any defective component charge to the Original Purchaser.
  • Page 137 blockage, embargo, labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity control, internet, network, or telephone service The warranties given herein, together with any implied warranties covering the hardware, including any warranties for merchantability or fitness for a particular purpose, are limited in duration to one year from the date of shipment to the Original Purchaser.

Table of Contents
