Summary of Contents for Kenco KLDL14K

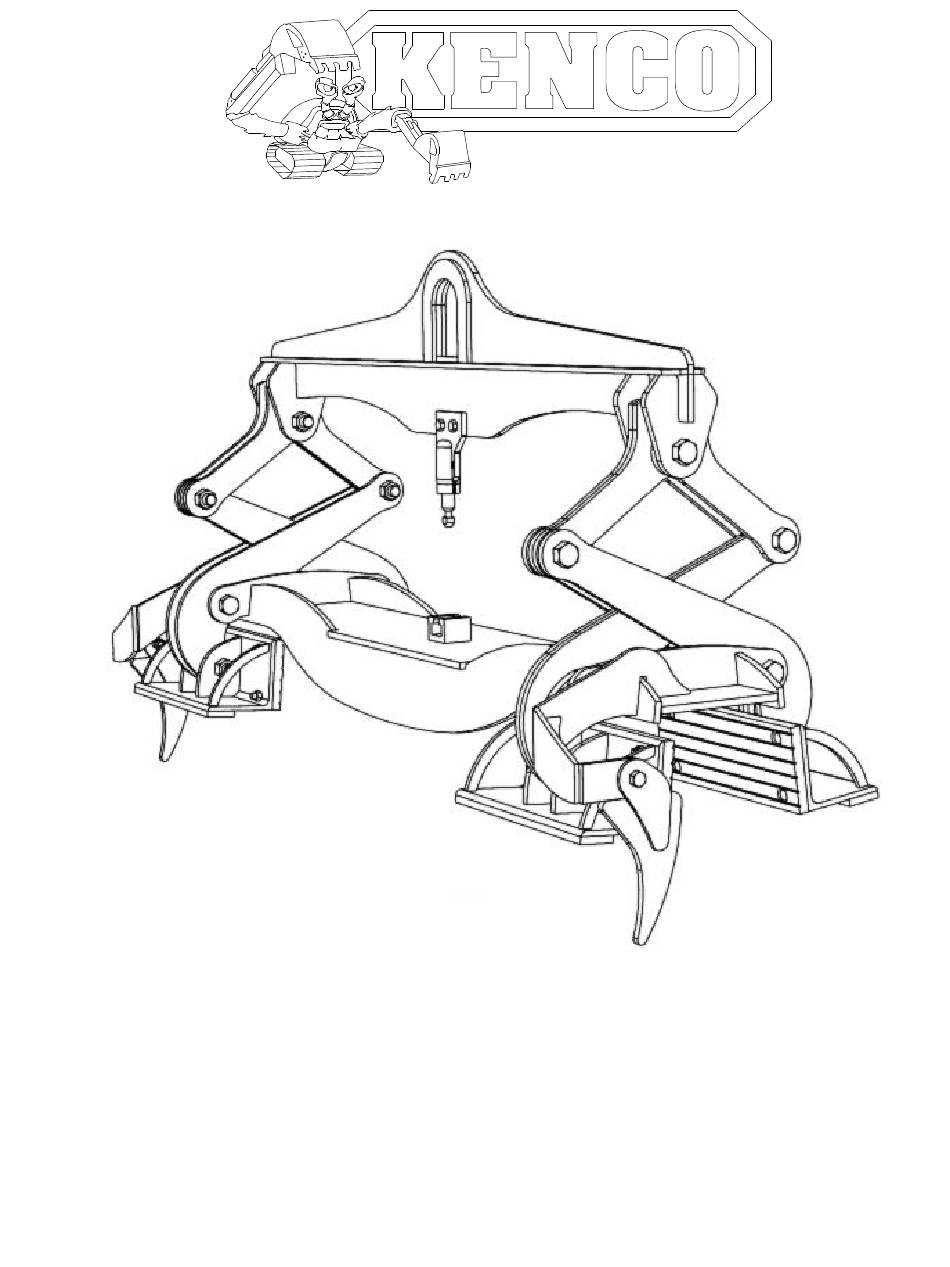

- Page 1 Attachment Solutions KLDL14K Concrete median barrier handling device Operators Manual Conforms to ASME B 30.20, BTH-1 Design Category B, Service Class 3...
- Page 2 TABLE OF CONTENTS Section I. General Information...................... 1 Section II. Safety ..........................1 Section III. Identification of Major Components ................3 Section IV. Setup..........................3 Section V. Operation........................5 Section VI. Maintenance ........................7 Section VII. Inspection Criteria ......................8 Section VIII.
- Page 3 Section I. General Information ® May we take this opportunity to thank you for purchasing the KENCO Kenlift ® highway median barrier wall handling system. The Kenlift System provides the ultimate in ® below the hook concrete highway barrier handling versatility. The Kenlift is quality engineered to provide years of trouble free, low maintenance performance.
- Page 4 170 State Route 271 Ligonier, PA 15658 1-800-653-6069 2. Do not wear loose clothing, jewelry, or hairstyles that could become entangled in the KENCO ® Kenlift or rigging hardware. 3. Keep hands, feet, and any other appendages clear of Kenlift® while in operation.
- Page 5 1. Use as few rigging components (shackles, slings, chain, etc.) as possible. 2. ALL RIGGING COMPONENTS MUST HAVE A WORKING LOAD LIMIT THAT IS EQUAL TO OR GREATER THAN THE COMBINED WEIGHT OF INTENDED ® LOAD PLUS THE Kenlift ® KENCO Kenlift Operation Manual...
- Page 6 4. DO NOT RIG UNPROTECTED NYLON SLINGS OR WIRE ROPE DIRECTLY THROUGH LIFT BAIL. 5. IF USING EQUIPMENT OTHER THAN A CRANE: USE RIGGING OF SUFFICIENT ® LENGTH TO PREVENT CONTACT BETWEEN Kenlift AND EQUIPMENT. ® KENCO Kenlift Operation Manual...
- Page 7 8. Deposit at desired location. ® 9. Release tension on lift cable. (Note: avoid undue slamming of the Kenlift into open position to prolong actuator life.) ® ® 10. Remove Kenlift (Kenlift is latched in open position automatically) ® KENCO Kenlift Operation Manual...
- Page 8 DANGER proportional to and dependent on the weight of the barrier wall. It is for this reason that while in operation the Kenlift and wall NEVER be allowed to contact other items. ® KENCO Kenlift Operation Manual...
- Page 9 2. Inspect holes, pins, bolts etc. for wear. See sect VII for criteria. 3. Remove actuator, clean and lubricate with light penetrating oil – check for signs of wear, replace if necessary. * Frequency depends on usage, environmental conditions, etc. ® KENCO Kenlift Operation Manual...
- Page 10 Any scarring, chunking, or missing pad material constituting a total combined loss of surface area greater than 3 sq. in. per pad. d. Any single scar, chunk, or missing pad face that is greater than 1 sq. in per pad. ® KENCO Kenlift Operation Manual...
- Page 11 Section VIII. Parts/Drawings ® KENCO Kenlift Operation Manual...
- Page 12 170 State Route 271 Ligonier, PA 15658 1-800-653-6069 DANGER DO NOT STAND UNDER OR NEAR WHILE MACHINE IS OPERATING KENCO CORPORATION 877-4ATTACH WARNING MODEL Read and understand operator’s manual before USAGE using this equipment. Failure to follow operating CAPACITY and maintenance procedures could result in death or serious injury.
- Page 13 0.5’’ NUT 0.5’’ X 3.25’’ GR.8 BOLT 0.5’’ X 2’’ GR.8 BOLT 1.0’’ X 5.5’’ GR.8 BOLT 1.0’’ NYLOCK NUT ACTUATOR RECEIVER DANGER STICKER IDTAG BTH TAG LG. WARNING STICKER SM. WARNING STICKER ID STICKER ® KENCO Kenlift Operation Manual...
- Page 14 C. Double Wall Pick Two walls being lifted at once must be mechanically linked or have ends touching. Refer to the table below to ensure the walls being lifted are within the Double Lift’s design parameters. ® KENCO Kenlift Operation Manual...
- Page 15 ® KENCO Kenlift Operation Manual...
- Page 16 1. KENCO Corporation (KENCO) warrants the KENCO Kenlift lifting device (not including pads or consumable items) sold by KENCO to be free from proven defects in material and workmanship for a period of six (6) months from the delivery date to the original customer.
