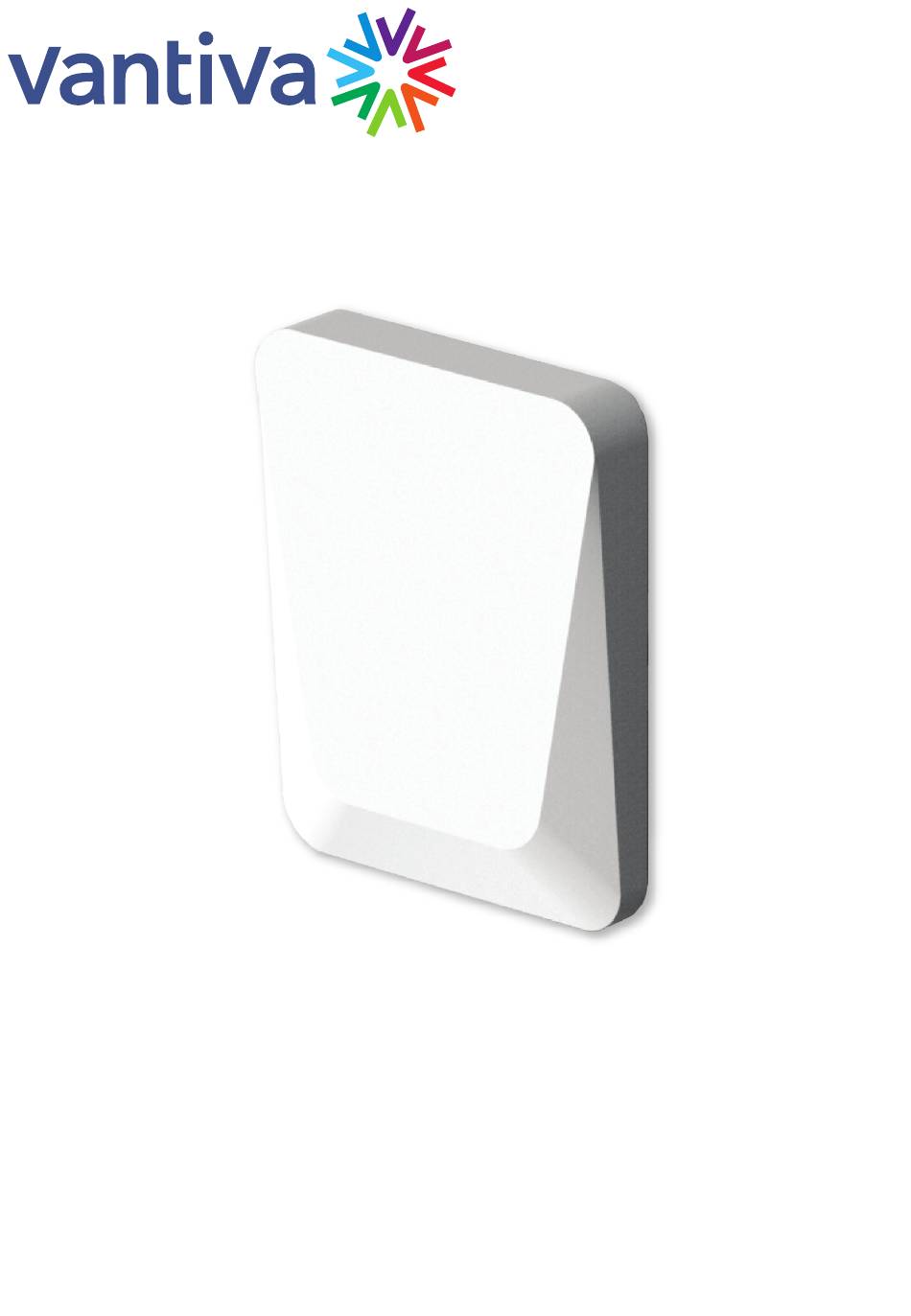

- Page 1 OWM7111IOT User Guide...
- Page 2 1. Before you start • Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with the installation of your OWM7111. • Do not make any connections until instructed to do so! 2. Check the content of your box Your package contains the following items: Item Description...
- Page 3 3. About the OWM7111 3.2. Bottom panel 3.1. Wi‑Fi Wi-Fi general The OWM7111 is equipped with: 2.5G • One 6 GHz Wi-Fi 6E (IEEE802.11ax) interface that provides superior transfer rates and is less sensitive to interference. When the OWM7111 is used in a Wi-Fi EasyMesh configuration, this interface is primarily used for backhaul connections to the Gateway or to another OWM7111.
- Page 4 This scenario allows you to add Wi-Fi 6E coverage using the OWM7111. RESET Internet gateway PoE adapter Wi-Fi 6E WPS button and Reset pin OWM7111IOT OWM711 Wi-Fi device Ethernet cable The WPS button and reset pin hole is hidden under the side cover of your Ethernet cable...
- Page 5 This scenario allows you to extend Wi-Fi coverage in your space by retransmitting Wi-Fi messages from your existing Wi-Fi EasyMesh network. Wi-Fi 6E Wi-Fi 6E Wi-Fi 6E Wi-Fi 6E EasyMesh EasyMesh adapter Internet gateway OWM7111IOT OWM711 Wi-Fi device Internet gateway Ethernet cable cable adapter OWM7111IOT OWM711 Wi-Fi device...
- Page 6 4.4. IoT Functions 5.2. Pairing the OWM7111 with your Internet gateway • The OWM7111 has three IoT radios that support several protocols such as Requirements Zigbee, Bluetooth (BLE), and Thread. Make sure your OWM7111 isn’t onboarded already to an existing EasyMesh •...
- Page 7 3 Obstructions may deteriorate the signal strength. Try to minimize the number or any Wi-Fi extender in the EasyMesh network. of walls between the two devices and then try again. Note: On some Internet gateways you may have to press and hold the WPS 4 Move the devices closer to each other and then try again.
- Page 8 5.7. Configure your OWM7111 to your needs 5.8. How to repair an unresponsive OWM7111 If at some point your OWM7111 becomes unresponsive you can: Accessing the OWM7111 web interface • Force it to restart: After restarting the OWM7111 will return to normal oper- The OWM7111 web interface allows you to configure your OWM7111 using ation with its last known working condition and configuration.
- Page 9 6. OWM7111IOT Mounting instructions Wall/Ceiling mounted - Position A Notes: • Any accessories, like screws, mounting holders should not be replaced by the end user. • The installer should be well trained and well understanding the FCC related rules. • The installer will not make any change which may break the FCC rules.
- Page 10 Wall/Ceiling mounted - Position B 1 Assemble bracket on wall by screws, using: ƒ 2Pcs screw: M5x40mm ƒ 2pcs plastic anchors 3 Fasten the side screw 6.2. Wall/ceiling mounting in Postion B 2 Assemble product on bracket.
- Page 11 Poll mounted - Position B 3 Fasten the side screw 6.3. OWM7111IOT Pole Mount instruction 1 Fix bracket on pole by metal clamp. Poll mounted - Position A 2 Assemble product on bracket. 3 Fasten side screw. 6.4. OWM7111IOT Long‑arm mount...
- Page 12 • Material: SUS 304 1/2H, T1.5mm. • 2 parts fixed by welding. • Material: SUS 304 1/2H, T1.5mm. • 2 parts fixed by welding. • Mounting onto wall by 3 bolts, or onto pole by 2 metal zip belts. • Assembled by 2 bolts. •...
