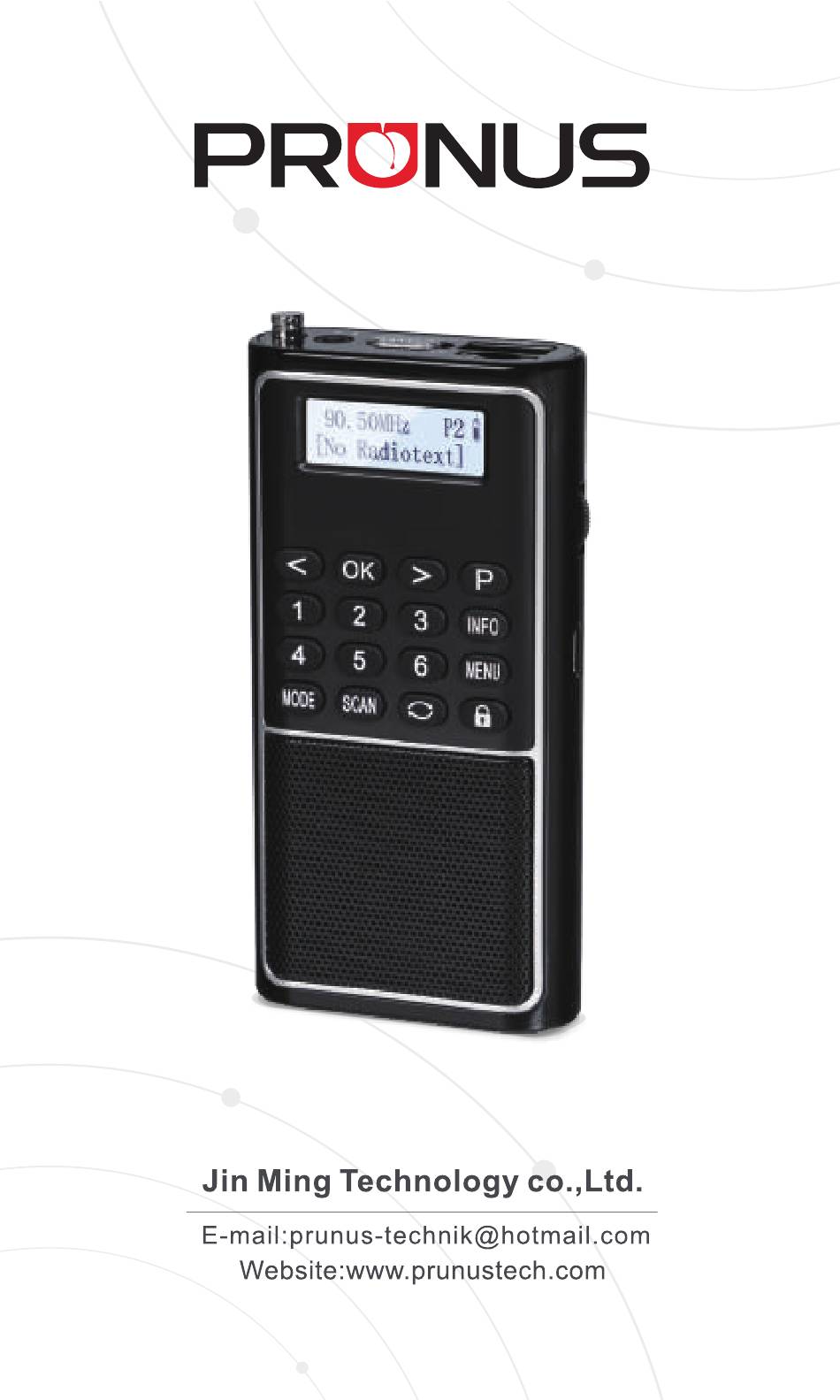

- Page 1 · The Perfect Partner of Your Life ·...
- Page 2 PRUNUS J-301 Mini Portable DAB/FM Radio User Manual Preface : Thank you for purchasing PRUNUS J-301 radio. In order to get the best from the radio please read this manual carefully before using it and take special notice of the...
- Page 3 Ⅰ PRECAUTIONS Ⅱ PRODUCT INTRODUCTION 1. Functional Components 2. Product Specifications Ⅲ POWER SUPPLY 1. Charging Method 2. Charging Indicator Ⅳ HOW TO USE 9-23 1. System Settings 2. FM Channel 10-13 3. DAB Channel 14-17 4. How to Get Better Reception? 5.
- Page 4 Ⅰ PRECAUTIONS 1. Don’t get the radio wet or use it in a moist environ- ment. E.g. Keep it out of rain and use carefully in bathrooms and kitchens. 2. Keep the radio from sources of heat such as radiators, hot water pipes or fires.
- Page 5 Ⅱ PRODUCT INTRODUCTION 1. Functional Components Front： Right： ⑳ ⑤ ⑨ ⑩ ⑪ ⑧ ⑥ ⑫ ⑱ ⑦ ⑬ ⑰ ⑭ ⑮ ⑯ ⑲ ② ① ③ Top： ④...
- Page 6 ⑨ OK: Play/Pause/Confirm ⑲ Telescopic Antenna ⑩ Next/Fast-forward ⑳ Lanyard Hole 2. Product Specifications 1) Model No: J-301 2) FM: 87.5 – 108MHz 3) DAB: 174 – 240MHz 4) Music Playing: USB / TF Card 5) Max Power Output: 3W 6) Speaker: 36mm 16 cores internal magnetic 7) Built-in Li-polymer Battery: 3.7V/700mAh...
- Page 7 Ⅲ POWER SUPPLY 1. Charging Method When the battery icon flashes on the screen, it’ s time to charge the radio. Step1 : Plug the big end of USB charging cable into the USB jack of your computer or USB power adapter. Step2 : Plug the small end into <⑥DC5V Charging Jack>...
- Page 8 automatic running out of power may cause the radio to fail to charge. d. If an adapter is important for you, please send message “PRUNUS Charger” to E-mail: wanwanuk@outlook.com (reply in 1 working day) to get PRUNUS quality charger with indicator at 60% discount.
- Page 9 Ⅳ HOW TO USE Push the button <①ON/OFF> to turn the radio on. Then pull out the <⑲Telescopic Antenna>. 1. System Settings Tips : a.Press <⑬MENU> to set the system. In any setting interface, press- ing <⑬MENU> again can exit the settings. b.Press <⑧Previous/Rewind>...
- Page 10 2. FM Channel 1) How to Search the FM Channel Automatically? A. Search with Button SCAN Long press <⑯SCAN> to automatically search, store and number the channels. And the channels will be saved in an order as “P1”, “P2”, “P3” …...
- Page 11 2) How to Search the FM Channel Manually? Short press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to search for channel. The channel frequency will jump down or up at 0.1MHz intervals. 90.5MHz Scanning… ⑩ > : Short press to ⑧ < : Short press to search for next search for previous available channel...
- Page 12 3) How to Save the Channel Manually on FM? A. Save with Button “P” Step1 : Long press <⑪P> to saving mode. (Short pressing can not save the channel.） Step2 : Press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to select the serial number you want to number the channel as. Step3 : Press <⑨OK>...
- Page 13 4) How to Select and Play the Stored Channels? A. Press the Button “P” Step1 : Press <⑪P>. Step2 : Press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to select the stored channel you like. Step3 : Press <⑨OK> to confirm and play the channel. Preset Recall <4: 90.50MHz >...
- Page 14 3. DAB Channel 1) How to Search the DAB Channel Automatically? Press <⑰MODE> to change to “DAB” mode. Scanning… Way1: When the radio is switched to DAB mode, the radio will search the DAB channels automatically. Scanning… Way2: Long press <⑯SCAN> to automatically search the DAB channels.
- Page 15 2) How to Search the DAB Channel Manually? Step1 : Press <⑬MENU>. Step2 : Press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to choose “Manual tune”. Step3 : Press <⑨OK> to enter central frequency selection. Step4 : Press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to select a central frequency. Step5 : Press <⑨OK>...
- Page 16 3) How to Save the Channel Manually on DAB? A. Save with Button “P” Step1 : Long press <⑪P> to saving mode. Step2 : Press <⑧Previous/Rewind> or <⑩Next/Fast-forward> to select the serial number you want to number the channel as. Step3 : Press <⑨OK>...
- Page 17 B. Save with Long Pressing the Number Button Directly E.g. If you want to number a channel as “P6” , you just need to Long press the number button “6” . Then the channel will be stored as P6 successfully. Note : This method is only suitable for number 1-6.
- Page 18 4. How to Get Better Reception? 1) Adjust the telescopic antenna. 2) Reposition the radio, or approach it to the window and try to keep it away from the electronic devices, such as computer, TVs, refrigera- tors, mobile phones, etc. 3) Hold the radio in hands, but the reception will be weak again when ...
- Page 19 5. Silent Mode On FM/DAB mode, pressing <⑨OK> can mute the radio. Pressing it again can cancel the silent mode. MUTE...
- Page 20 6. Music Played by USB Flash Drive / TF Card Insert the USB Flash Drive / TF card loaded with MP3 files into the<③ USB Port> or <④TF Card Slot>. Once the MP3 files are detected, the radio will play automatically. ③USB Port ④TF Card Slot Tips :...
- Page 21 7. Lock Button Press <⑭Lock Button> to lock the other buttons, then a lock icon will appear on the display and other buttons cannot work until you press this button again to cancel the lock. 90.50MHz LOCK...
- Page 22 8. Earphones In order not to disturb others around you, you can listen to the radio with earphones. 1) Plug the earphones into <②Earphone Jack>, and the radio will automatically switch to earphone listening mode and the speaker will be muted.
- Page 23 Ⅴ SOLUTION FOR POSSIBLE PROBLEM Malfunction Solution Reason: The battery is dead Unable to power on Solution: Charge the radio C h e c k i f y o u h a v e p re s s e d t h e button “OK”...
- Page 24 Ask a question” and log into Amazon to contact us. We will provide you with the best service. 2. You can also send your messages to our customer service e-mail: prunus-technik@hotmail.com 3. America Local Customer Support Number: (805) 712-2661...
