Summary of Contents for MEANReal ELF 100B

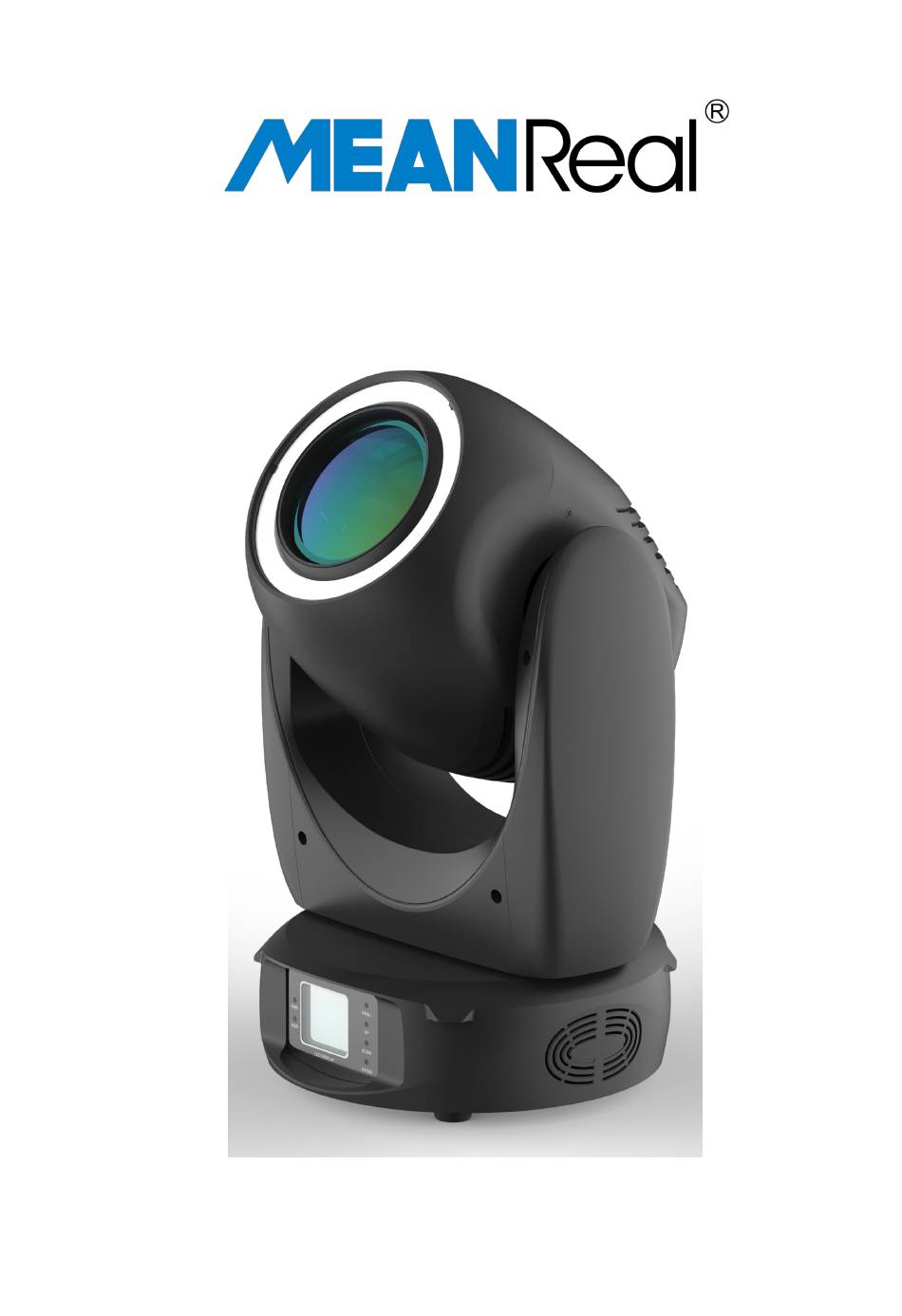

- Page 1 ELF 100B USER MANUAL Please read the instruction manual carefully before use...
- Page 2 1.Safety guidance: Thank you for using our product. In order to use this product safely and effectively, you use this product,Please read the entire contents of this manual carefully before.This manual contains: an introduction to this product and Important information such as safe installation and use, please keep it for reference.
- Page 3 ●Do not touch the wires when the lamp is running to prevent electric shock. ●Avoid twisting the power cord with other wires. ●A serious operational failure has occurred, please stop using it immediately. ● Do not operate the machine by yourself. Operation by non-professional personnel will cause damage to the equipment or malfunction.
- Page 4 3.Wiring method： A ： In order to reduce signal errors and avoid signal attenuation and interference during transmission, the DMX input of the last machine can be used.Out Add a 120 OHM 1 / 4W resistor between the 2 and 3 pins on the end. B：...
- Page 5 4.Installation Precautions In order to ensure the stability of the installation site during the installation of the lamp, it is necessary to ensure the firmness of the connection between the lamp pole and the lamp hook when reversing the installation, and use a safety rope to assist the suspension;...
- Page 6 ①Main interface Two LED indicators on the left: Green --- (DMX signal indicator) Blue --- (host self-propelled voice-activated indicator) The three buttons in the upper right corner are used for: CN：Chinese, language switch EN：English, language switch 180：Screen display rotated 180 °, upside down ②Set interface Option Description...
- Page 7 correct position Not corrected NO DMX Signal KEEP Keep the current state CLEAR Reset to initial position and stop running Screen saver Turn off the backlight after 30 seconds of inactivity Backlight always on Load Default NO/YES Select "Yes" to confirm and restore the default settings ③Info interface Option Description...
- Page 8 6：DMX 512 Channel table： This light has 2 channel modes: 16-channel mode and 20-channel mode, as shown below: 16-channel mode, as follows： function Function description Channel number CH 1 0-255 Rotate horizontally：0-540° CH 2 TILT 0-255 Vertical rotation：0-270° CH 3 PAN Fine 0-255 Fine horizontal：0%-100%...
- Page 9 56-63 Color 7 CH 9 Colour 64-71 Color 8 72-79 Color 9 80-87 Color 10 88-95 Color 11 96-103 Color 12 104-111 White light+Color 1 112-119 Color 1+Color 2 120-127 Color 2+Color 3 128-135 Color 3+Color 4 136-143 Color 4+Color 5 144-151 Color 5+Color 6 152-159...
- Page 10 104-111 gobo 13 112-119 gobo 1 shake Slow-fast 120-127 gobo 2 shake Slow-fast 128-135 gobo 3 shake Slow-fast 136-143 gobo 4 shake Slow-fast 144-151 gobo 5 shake Slow-fast 152-159 gobo 6 shake Slow-fast 160-167 gobo 7 shake Slow-fast 168-175 gobo 8 shake Slow-fast 176-183 gobo 9 shake Slow-fast 184-191...
- Page 11 130-139 Red + Blue Strobe Fast to slow 140-149 Green + Blue Strobe Fast to slow 150-159 Transient 160-169 Gradually 170-179 Pulse 180-189 running water 1 190-199 running water 2 200-209 running water 3 210-219 running water 4 220-229 running water 5 CH 13 Light strip Macro 230-239...
- Page 12 20-channel mode, as follows： function Function description Channel number CH 1 0-255 Rotate horizontally：0-540° CH 2 TILT 0-255 Vertical rotation：0-270° CH 3 PAN Fine 0-255 Fine horizontal：0%-100% CH 4 TILT Fine 0-255 Fine vertical：0%-100% CH 5 PAN/TILT Speed 0-255 From fast to slow CH 6 Dimmer 1 0-255...
- Page 13 CH 9 Colour 64-71 Color 8 72-79 Color 9 80-87 Color 10 88-95 Color 11 96-103 Color 12 104-111 White light+Color 1 112-119 Color 1+Color 2 120-127 Color 2+Color 3 128-135 Color 3+Color 4 136-143 Color 4+Color 5 144-151 Color 5+Color 6 152-159 Color 6+Color 7 160-167...
- Page 14 112-119 gobo 1 shake Slow-fast 120-127 gobo 2 shake Slow-fast 128-135 gobo 3 shake Slow-fast 136-143 gobo 4 shake Slow-fast 144-151 gobo 5 shake Slow-fast 152-159 gobo 6 shake Slow-fast 160-167 gobo 7 shake Slow-fast 168-175 gobo 8 shake Slow-fast 176-183 gobo 9 shake Slow-fast 184-191...
- Page 15 70-79 All on CH 17 Light strip Macro 80-89 Full bright strobe 90-99 Red strobe Fast to slow 100-109 Green strobe Fast to slow 110-119 Blue strobe Fast to slow 120-129 Red + Green Strobe Fast to slow 130-139 Red + Blue Strobe Fast to slow 140-149 Green + Blue Strobe Fast to slow 150-159...
- Page 16 7：Troubleshooting The following are some of the problems that often occur during operation, with some suggestions for troubleshooting: The light does not work, there is no light, and the fan does not turn. ①Check power contacts and fuses. ②Detection voltage. ③Check the power switch indicator.
- Page 17 Use a soft brush, tissue paper, air cleaner, or air to blow the dust at the fan and the air inlet. Clean the dust from the fan and air holes to keep the air duct open. GUANGZHOU MEANREAL LIGHTING LIMITED ADD:NO.6 XINHE AVE.HUASHAN TN.HUADU DIST.GUANGZHOU,CHINA...
