Summary of Contents for SAINTWAY V7S

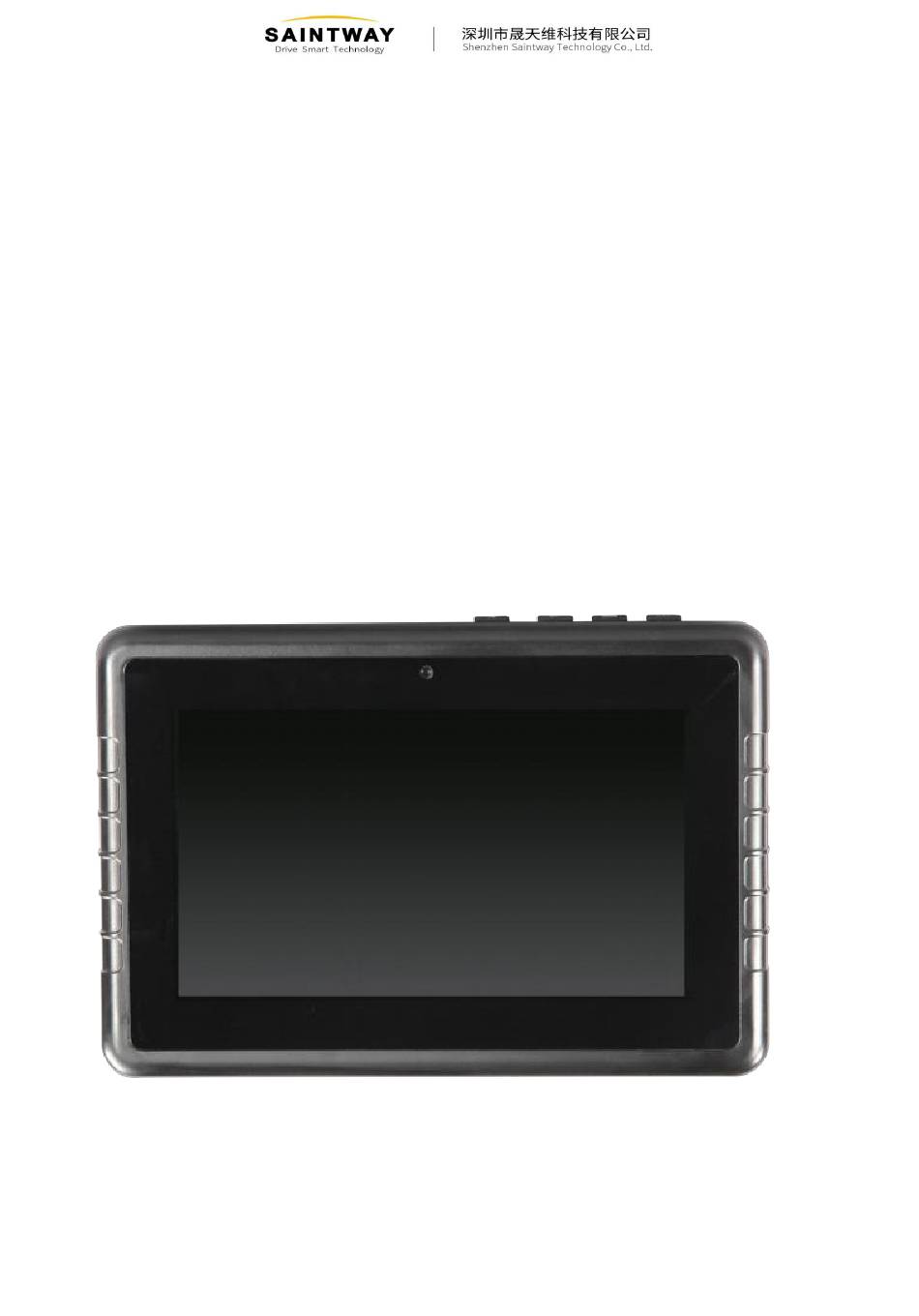

- Page 1 V7S User Manual Ver:001...
- Page 2 Amendment Records Establish/ Version Reason for Product Person The major change contents number in charge amend date change name Nancy 2024- 8-15 Note: 1. Please fill the form if there is any update. 2. For the first time saving the file, note “ N/A” in the “ reason for change” and “ major change contents” line.
- Page 3 Safety maintenance: Please maintain your system properly to make sure its service life and reduce the damage risk. It should avoid the humidity and extreme temperature when being used. Avoid prolonged exposure of the unit to direct sunlight or strong ultraviolet light. ...
- Page 4 Contents 1. Product Description 1.1 Brief Introduction 1.2 Optional Functions 1.3 Basic Parameters 2. Structure Function Explanation 2. 1 Interface 3. Extended Cable Definition 3.1 Definition 3.2 Serial Port 3.3 CAN test interface 4. Micro SIM Card & Memory Card Instructions 5.
- Page 5 1. Product Description 1.1 Brief Introduction Android 11 operating system 7-inch 1024x600 TFT-LCD screen WiFi, 1000Mbps Ethernet port and 4G high speed internet surfing Built-in high-sensitivity receiving module and active GPS antenna 2MP front camera ...
- Page 6 1.3 Specifications Specifications Description Processor 64bit RK3568 Quad-core Cortex-A55, up to 2.0GHz Mali-G52-2EE, 800MHz Graphic Core 2GB(4GB optional) LPDDR4 16GB(32GB optional) eMMC Android 11 7 inch TFT-LCD, LED backlight LCD panel 1024x600 Resolutions 500nits (typical) Brightness Display 800:1 Contrast Ratio View Angle (º) 75/75(L/R), 70/75(U/D) G+G multi-touch capacitive touch panel...
- Page 7 1 x TF card slot(up to 128GB) Onboard I/O ports 1 x SIM card slot 1 x USB 3.0 Host 1 x DC in 1 x RJ45(10/100/1000 Mbps) (support POE) 1 x RS422/485 Cable 1 1 x RS232 1 x OTG 2.0 Extended I/O ports (on pigtail cable) 1x DC in...
- Page 9 Accessory 1. Power Key: Short Key:sleep/ wake up V7S Length Key: boot, power off 2. Menu: Enter the menu interface 3. Volume +: Increase the volume 4. Volume -: Decrease the volume 5. TF Card: Extended to 128G TF card 6.
- Page 10 9. Front camera 10. Microphone interface 11. Reset key: used in mechanical down without reset operation 12. 38mm*30mm RAM mounting screw holes 75mm*75mm VESA mounting screw holes 13. Speaker 3 Extended Cable 3.1 Definition： Cable 1...
- Page 11 Cable 2...
- Page 12 3.2 Serial port RS232/ RS422 test: Connect RS232 or RS422 with DB9 testing jig and click Device_test_RS232, and print the data as below: RS232 /dev/ttyS5Test B RS422 /dev/ttyS0Test A...
- Page 13 3.3 CAN test interface...
- Page 14 4.Micro SIM Card & Memory Card Instructions In order to avoid damaging of the 3G/4G card & memory card, please insert the card smoothly and push slightly before you draw it out. The memory card will be heat after long time working. ...
- Page 15 6.MENU 6.1 Icon Bar Icon bar shows on the top of screen:...
- Page 16 6.2 Menu Setting Scroll up to enter application list...
- Page 17 6.2.1 Drop down from the top of the screen to enter notification bar. The notification bar shows system, running and error notice. 6.2.2 Click ‘Settings’ to launch setting in the application list Setting according to users ’ needs. Click search icon to search function options on the upper right corner of screen.To set Wi-Fi, Bluetooth, mobile network VPN , Hotspot , Ethernet functions in ‘Network &...
- Page 18 View RAM in the ‘About tablet’ option 6.2.4 To manage language& input and reset options in ‘System’ option. Add new language is available. 6.2.5 When unrecovered problems occurred, try to click ’Backup’ & ‘reset’ and ‘Factory data reset’ then follow the instructions. Device will delete settings and applications after restart, and restore to factory defaults.
- Page 19 7. Accessories 7.1 Standard accessories: DC 12V adapter 1pc ● Extension Cable 1pc ● 7.2 Optional accessories: Sunshade ● 8. Update firmware 8.1 Supported host OS Windows XP (32/64bit) ● Windows 7 (32/64bit) ● Windows 8 (32/64bit) ● Windows 10 (32/64bit) ●...
- Page 20 Uncompress DriverAssitant.zip, then run DriverInstall.exe inside. 8.3 Connect Device 8.3.1 Use USB OTG cable to connect host and V7S together. 8.3.2 Plug in the power 8.3.3 Run AndroidTool.exe: (Note: If using Windows 7/8, you'll need to right click it, select to run it as Administrator) If AndroidTool defaults to display in Chinese.
- Page 21 9. Trouble Shooting 9.1 Power Problem Cannot boot up Wrong cable connection: ● Connect Extended cable with device first, and connect the AC end of DC adapter with DC input port of Extended cable, then the other end of DC adapter connect with power plug socket.
