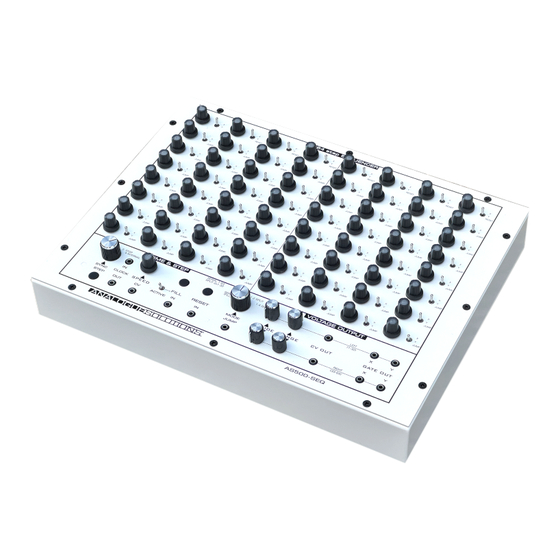

Analogue Solutions COLOSSUS Manual

64 step cv / gate sequencer
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
COLOSSUS 2/5/2024
ANALOGUE SOLUTIONS
Page
1
of
5
AS500-Seq

Advertisement

loading
Need help?

Need help?

Do you have a question about the COLOSSUS and is the answer not in the manual?

Questions and answers

Related Manuals for Analogue Solutions COLOSSUS

Summary of Contents for Analogue Solutions COLOSSUS

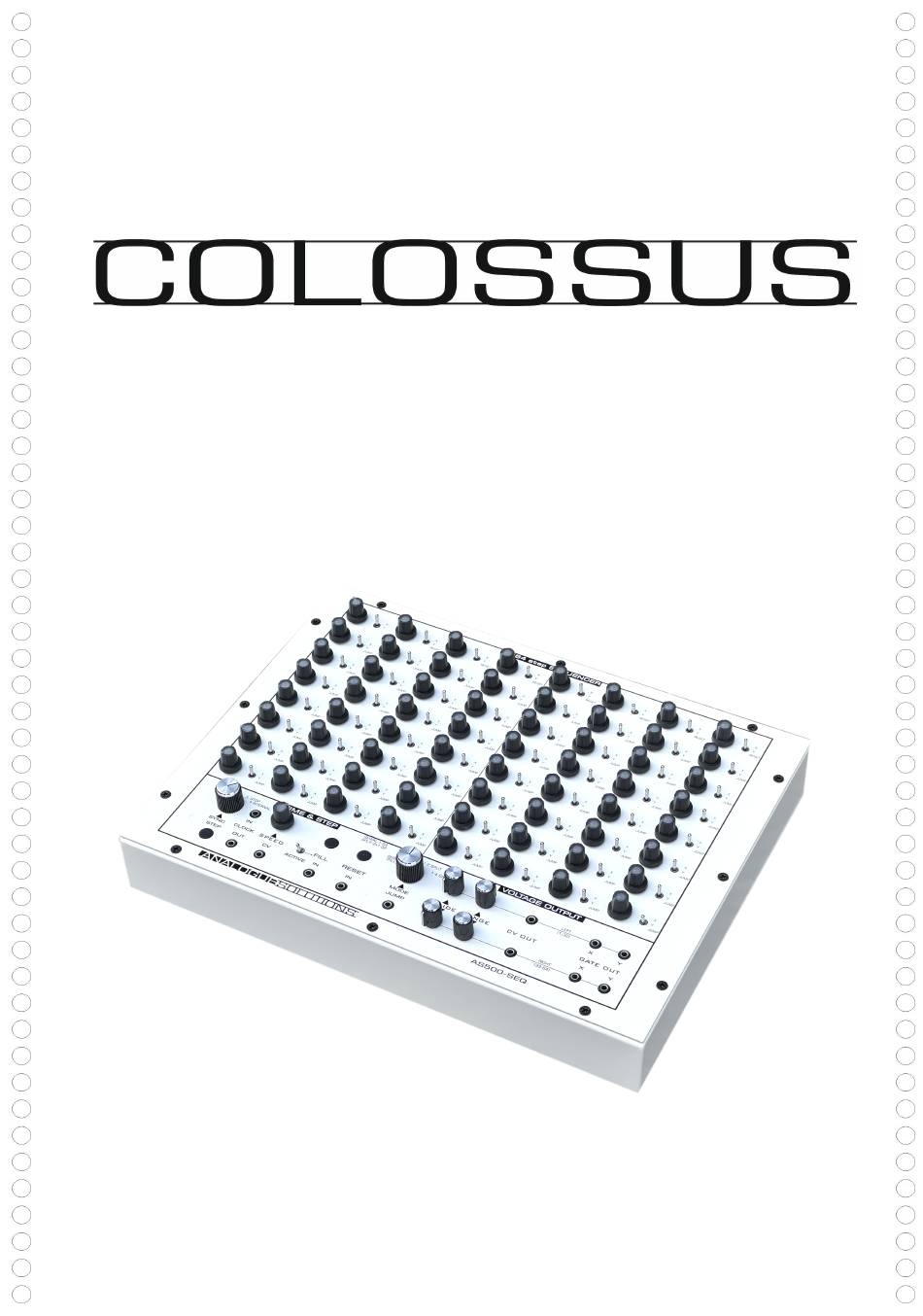

  • Page 1 COLOSSUS 2/5/2024 ANALOGUE SOLUTIONS Page AS500-Seq...
  • Page 2 COLOSSUS 2/5/2024 ANALOGUE SOLUTIONS Page 64 Step CV / Gate Sequencer The sequencer is 64 steps in Serial mode, or split into two parallel sequences of 32 steps. VERY STRAIGHT FORWARD TO USE, SO THIS MANUAL IS BRIEF! THE SIMPLICITY IS PART OF THE DESIGN. YET, THIS MACHINE IS EXTREMELY FLEXIBLE.
...

  • Page 3: Playback Mode

    COLOSSUS 2/5/2024 ANALOGUE SOLUTIONS Page STEP SWITCH Pressing this advances the sequencer one step forward. SYNC SWITCH This selects the sync source: External clock - from the IN jack STOP STOP Internal - from the internal clock TEMPO Sets the speed of the internal clock. IN AND OUT JACKS Clock in and out! CV Use a CV into here to change the clock speed. You will need to lower the TEMPO control setting first if using the CV input. FILL The sequencer has a fill-in feature. This is only active if the sequencer is set to Mode 1 - Serial mode, and, the Fill Active switch is on (down).
  • Page 4 COLOSSUS 2/5/2024 ANALOGUE SOLUTIONS Page The left and right sequences each have their own CV Glide and CV Range controls. GLIDE This adds portamento to the CV output. RANGE This sets the voltage range of the output. CV OUT This is the CV out for the Left or Right sequence. GATE X / Y This is a trigger/gate output for the Left / Right sequences. 64 STEPS Each step has its own CV level control. Also a X/Y/Reset-Jump toggle switch: A trigger is sent to the X jack socket. A trigger is sent to the Y jack socket. Jump The sequencer order will jump to the start of the next column to the right. Reset The sequencer will jump to the first step of the first column. Note: the CVs are not quantised - this is a purely analogue CV sequencer.

  • Page 5: Physical Specification

    COLOSSUS 2/5/2024 ANALOGUE SOLUTIONS Page Physical Specification SIZE: 382mm width, 292mm depth, 85mm high. WEIGHT: Classic : 2.2Kg. POWER: External regulated mains adaptor included. Input voltage: 110-240V AC Output voltage: 12 to 18V DC Min. 500mA Centre positive 2.1mm barrel connector. JACK SOCKETS: Use 3.5mm mono ‘mini jack’ cables.

This manual is also suitable for:

As500-seq
