- Page 1 INFORMATION FOR FIRST AND SECOND RESPONDERS EMERGENCY RESPONSE GUIDE Chevrolet BrightDrop 400/600 3 Door Panel Van FWD/AWD BrightDrop 400 BrightDrop 600 Version: 1...
- Page 2 CONTENTS 0. Rescue Sheet – BrightDrop 400 Page 0. Rescue Sheet – BrightDrop 600 Page 1. Identification / recognition Page 2. Immobilization / stabilization / lifting Page 3. Disable direct hazards / safety regulations Page 4. Access to the occupants Page 5.

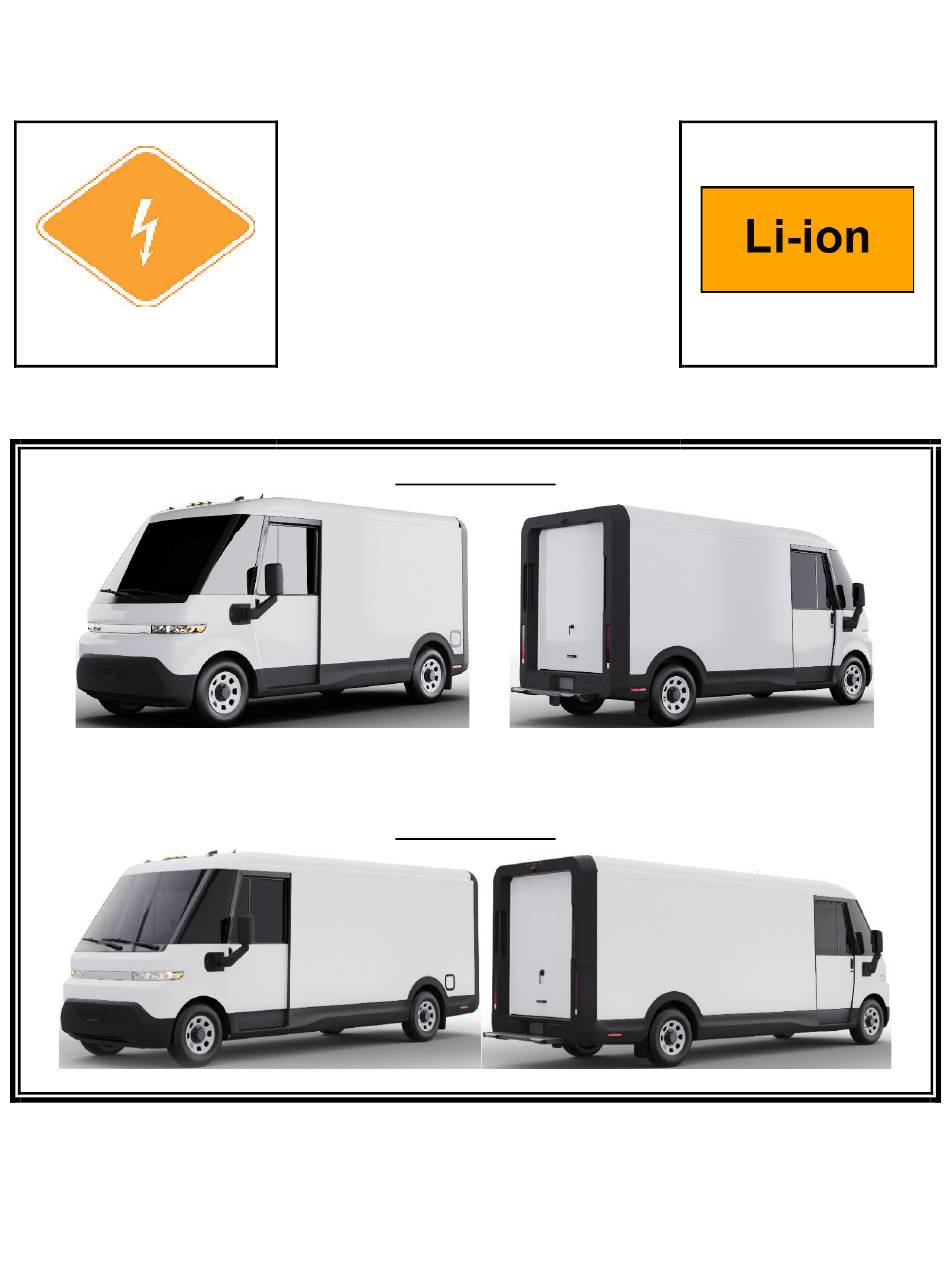

- Page 3 0. Rescue Sheet - BrightDrop 400 Airbag Stored gas Seat belt SRS control unit Gas strut/ inflator pretensioner Preloaded spring High strength Battery low High voltage High voltage Cable Cut power cable voltage battery pack Location zone component...
- Page 4 0. Rescue Sheet - BrightDrop 600 Airbag Stored gas Seat belt SRS control unit Gas strut/ inflator pretensioner Preloaded spring High strength Battery low High voltage High voltage Cable Cut voltage battery pack power cable Location zone component...
- Page 5 1. Identification / recognition Advise Dispatch and all responders that an electric vehicle is involved. Lack of engine noise does not mean vehicle is off: vehicle movement capability exists until vehicle is fully shut down. Always wear appropriate PPE. Emblems and Badging Hood Emblem Side Badging Rear Badging...
- Page 6 2. Immobilization / stabilization / lifting IMMOBILIZE VEHICLE • Block the wheels. • Follow procedures for conventional vehicles. Electric Parking Brake (EPB) Applying the Electric Parking Brake Press the EPB switch momentarily. The red parking brake status light will flash and then stay on once the EPB is fully applied. Releasing the Electric Parking Brake Turn the vehicle on.
- Page 7 Lifting Points – BrightDrop 400 There are features on the body of the vehicle, for use as primary lifting points. The lifting point features should only be used for lifting the vehicle. Do NOT use these features as attachment points to move or tie the vehicle down.
- Page 8 3. Disable direct hazards / safety regulations Thermal Runaway Alert and Mitigation The vehicle is equipped with a 12v battery management system with internal fault detection, including thermal runaway alert and mitigation for the high voltage battery. To keep thermal runaway alert and mitigation available, DO NOT disable the 12v battery. Automatic safety systems are enabled when low voltage power is available.
- Page 9 First Responder Loop Access Remove the outside rearview mirror cover: 1. Start at the bottom of the cover and pry out. 2. Release the tabs at the front and top of the cover. 3. Slide the cover forward to remove. Double cut the first responder loop on both sides of the yellow tape and remove the cut section of cable from the vehicle.
- Page 10 4. Access to the occupants Refer to the vehicle Rescue Sheet for illustrations that show the locations of High Strength Structural Components, High Voltage Components, and Safety Components. Vehicle Glass - The windshield is made of Laminated Glass - The front quarter and side pocket door windows are made of Tempered Glass Passenger Compartment Door Access The side access and bulkhead doors are pocket door designs.
- Page 11 Driver Seat Controls Fore and Aft Adjuster Height Adjuster Recline Adjuster Passenger Jump Seat Occupant Restraint Systems BrightDrop 400 and 600 models are equipped with five airbags: • Steering wheel mounted. • Driver side impact (seat mounted) • Passenger side impact (body pillar mounted) •...
- Page 12 High Strength Steel Structure – BrightDrop 600 The passenger compartment is protected using high strength steel in the pillars, rocker panels, door reinforcement beams, and floor structure. As with any occupant extrication, exercise caution. The vehicle’s high voltage cables and components may be energized with high voltage.
- Page 13 6. In case of fire High Voltage Warning, potential for electric shock A battery on fire will not explode A battery on fire will not explode. If battery cells reach high enough temperature, they vent and release electrolyte. Battery electrolyte is flammable. Gases emitted from the battery pack are toxic Skin contact may cause irritation.
- Page 14 8. Towing / transportation / storage Tow Hooks Carefully open the cover in the fascia by using the small notch that conceals the tow eye socket. Install the tow eye into the socket and turn it until it is fully tightened. When the tow eye is removed, reinstall the cover with the notch in the original position.
- Page 15 9. Important additional information This vehicle is supported by OnStar, where available. 10. Explanation of pictograms used Electric Vehicle General Warning Warning, Electricity Battery Technology Lifting Points Thermal Imaging Camera Flammable Toxic Corrosive Front Compartment Injury Risk Use Water Release High Voltage Cable Cut Location Disconnect...
