LiftMaster strongly recommends the installation of the Surge Protection
Module to protect the gate operator from harmful surges caused by lightning
strike phenomenon.
It is important to recognize that the surge protection module may not prevent
damage to the gate operator in the event of a direct lightning strike.
The success of the surge protection will be based in the proper installation of
the Surge Protection Module and the proper grounding of both the surge
protector module and the gate operator itself.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov

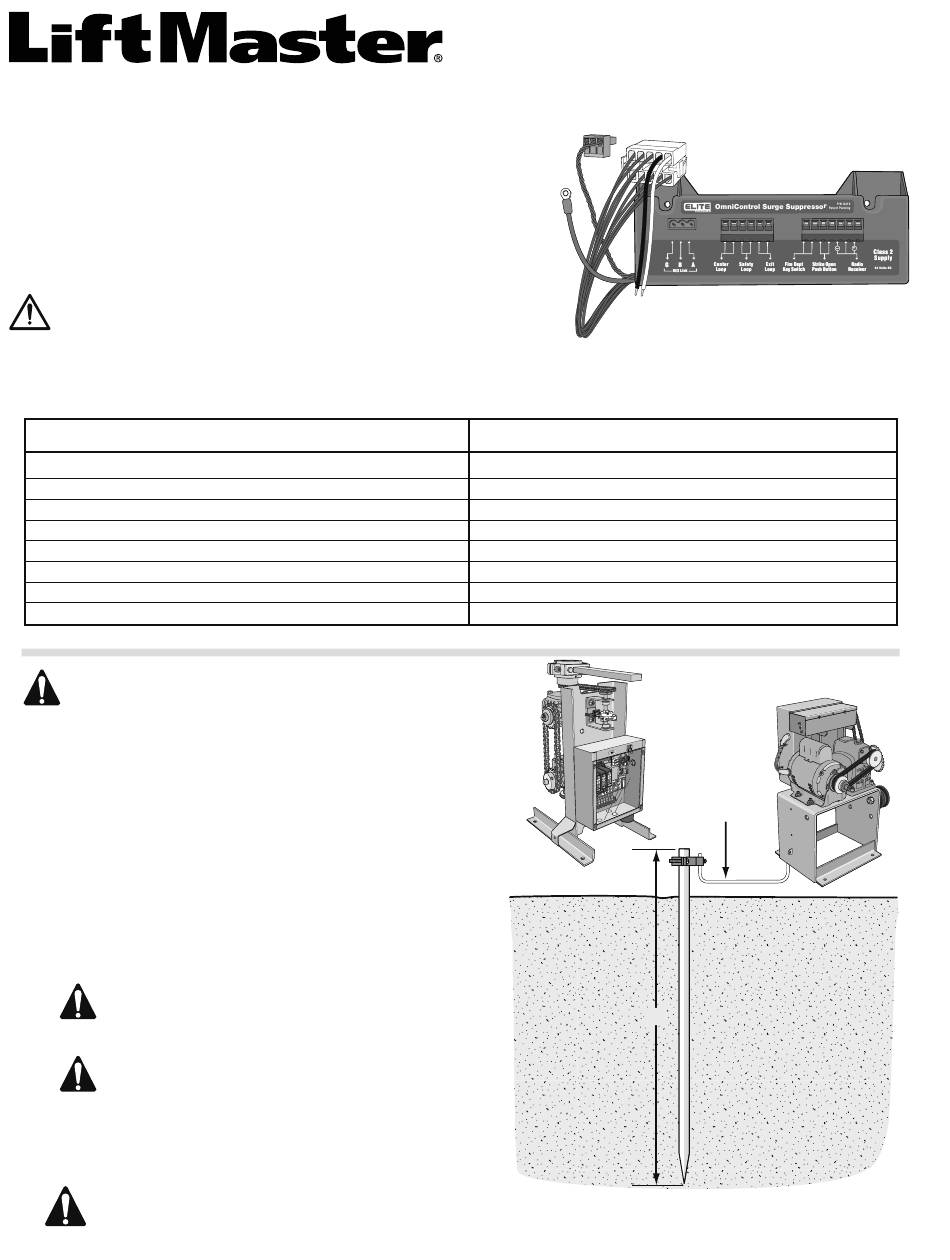

The Surge Protection Module will provide protection for the following input commands.
Name of Lines Protected
M/S Link, all three wires (G, B, A)
External Center Loop "Command" input
External Safety Loop "Command" input
External Exit Loop "Command" input
Fire Department or Key switch "Open" command
Strike Open or Push Button to open command
Radio receiver "Command" input
Ground reference and +24 VDC supply
Earth Ground Rod Installation
Proper grounding gives an electrical charge, such as from an
electrical static discharge or a near lightning strike, a path from
which to dissipate its energy safely into the earth.
Without this path, the intense energy generated by lightning could be
directed towards the gate operator. Although nothing can absorb the
tremendous power of a direct lightning strike, proper grounding can
protect the gate operator in most cases.
Avoid damaging gas, power, or other underground
utility lines.
The earth ground rod must be located 2 to 3 feet
from the gate operator.
The ground wire must be a single, whole piece
of wire. Never splice two wires for the ground
wire. If you should cut the ground wire too
short, break it, or destroy its integrity, replace it
with a single wire length.
Not responsible for improper installation or
failure to comply with all necessary local
building codes.
Inputs protected by the Surge Protection Module.
1
SURGE PROTECTION MODULE
For OmniControl™ Gate Operators
®
Number of Lines Protected
3
1
1
1
1
1
1
2
12 gauge wire
8 ft
OmniControl ™
