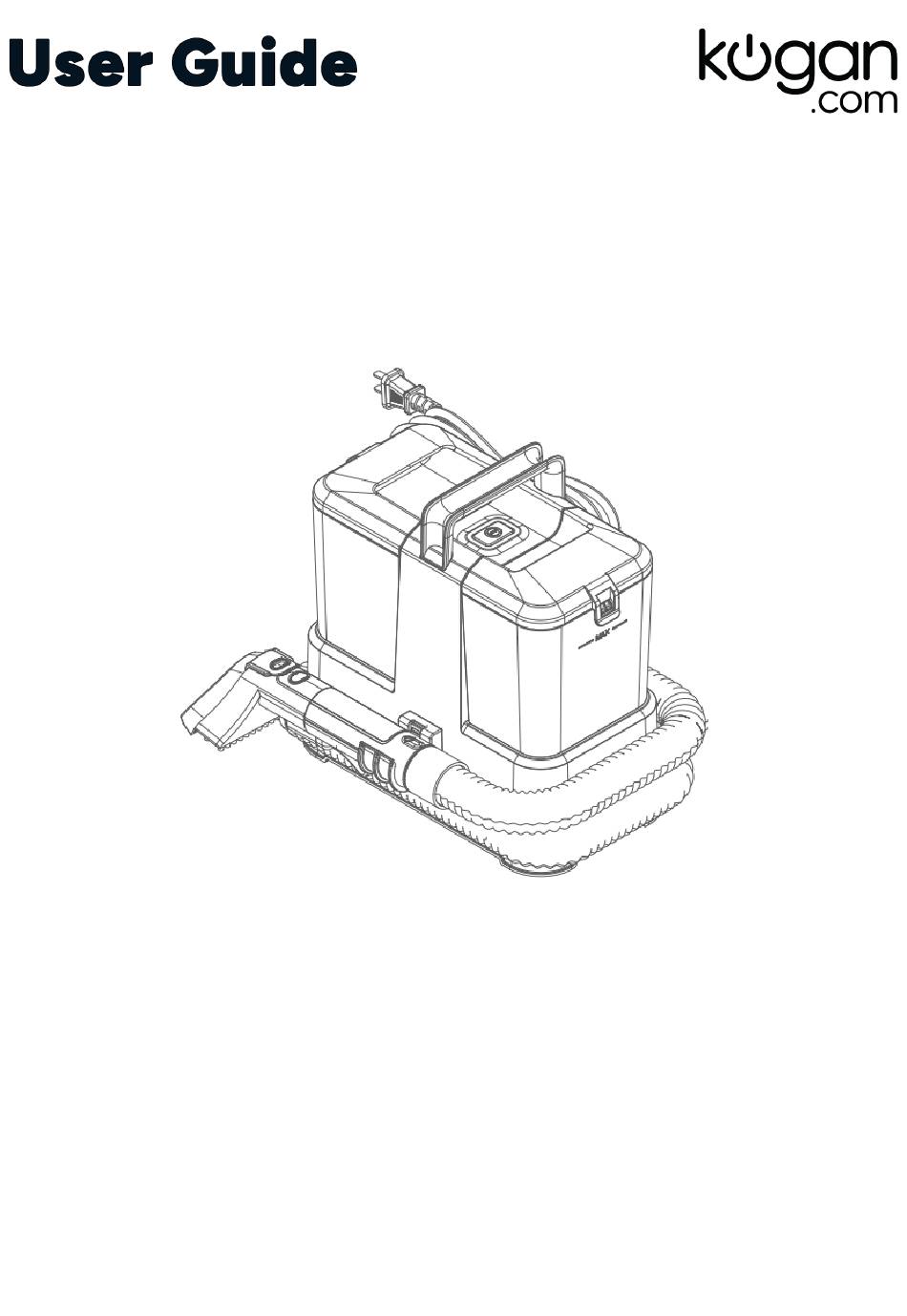

- Page 1 Lightweight Stain Clean Carpet and Upholstery Spot Cleaner KAVACCPT04A...
- Page 2 Safety & Warnings Accessories Overview Assembly Operation Cleaning & Care Specifications Troubleshooting...
- Page 3 This appliance is for domestic household use only and should not be used for any other purpose, such as commercial use. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • This appliance can be used by individuals with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge if they have been given supervision or instruction on safe use and understand the associated hazards.
- Page 4 • Do not use the appliance with any openings blocked; keep it free of dust, lint, hair, or anything that may reduce airflow. • Do not use the appliance to pick up the following items: • Dry dust. • Large plastic bags. •...
- Page 5 Accessories Tough stain brush Upholstery cleaner Overview Handle Power cord Power button Clean water tank Wastewater tank Hose handle Hose hook Notes: • The pump is assembled in the body of appliance. • Hose should be wrapped on the appliance (showed as figure above) when the appliance is being moved.
- Page 6 Assembly Insert the hose hook into the designated slot on the appliance. Hose hook Slot Remove the clean water tank from the appliance. Clean water tank...
- Page 7 Open the upper cover of the clean water tank and fill it with water. After filling, close and lock the top cover securely. Water Upper cover Notes: • To avoid leaks, ensure the top cover is tightly locked. • The maximum water capacity is 0.8L. •...
- Page 8 Connect the hose handle to your chosen accessory. Secure the hose and power cord before moving the appliance.
- Page 9 Operation Insert the plug into the electrical outlet. Press the ‘Power’ button to start the appliance. Power button...
- Page 10 Press the ‘Spray’ button on the hose handle to spray water onto the stain, allowing it to surface on the fabric. Spray button While spraying water, move the accessory over the stain to absorb the dirty water. Spray water to loosen the stain, and the accessory will draw the dirty water up. Spray button Release the spray button, then move the accessory over the dirty water to remove it.
- Page 11 Press the ‘Power’ button to turn off the appliance. Power button Unplug the power cord from the electrical outlet. Clean both the wastewater tank and clean water tank. Wastewater tank Clean water tank...
- Page 12 Note • If water enters the appliance, stop operation immediately. Clean and dry the interior, including the body, tube, and tank. • If the appliance is used when the water level is above the maximum line, it must be stopped immediately, as the suction power will decrease or be lost due to the action of the buoy.
- Page 13 Removing Stubborn Dirt Apply the solvent to the carpet and use the brush attachment to lift the dirt. Refer to the solvent's user guide for correct usage and quantity. Use it carefully and correctly. Dirt Dirt Solvent Absorb the dirt and ensure no solvent remains on the carpet.
- Page 14 Cleaning & Care • Power off the appliance and unplug the power cord before performing maintenance. • To avoid electric shock, do not immerse the appliance in water or expose it to rain during cleaning and maintenance. • Do not use detergents, diluents, benzene, or other chemical agents to clean the appliance.
- Page 15 Cleaning the Wastewater Tank 1. Turn off the appliance and unplug the power cord from the electrical outlet. 2. Detach the wastewater tank from the appliance as indicated by the arrow in the figure below. Note: To avoid overflowing, do not tilt or shake the wastewater tank while moving it.
- Page 16 Remove the top cover of the wastewater tank, tilt the tank, and pour out the sewage. Clean the wastewater tank body, top cover, and sealing ring. Sealing ring Top cover Wastewater tank body Note: To prevent bacteria or unpleasant odours, clean the wastewater tank body and related parts promptly and allow them to dry after cleaning.
- Page 17 Reassemble the wastewater tank: a. Insert the sealing ring into the groove in the top cover. b. Insert the rib in the top cover into the slot in the wastewater tank body. c. Rotate the top cover until you hear a ‘click’, indicating the wastewater tank is securely assembled.
- Page 18 Clean the Clean Water Tank Remove the clean water tank from the appliance. Clean water tank Open the top cover of the clean water tank and pour out any remaining water. Top cover Clean water tank Insert the rib of the top cover into the slot in the clean water tank body and rotate the top cover until you hear a ‘click’...
- Page 19 Tilt the appliance to pour out any remaining water from the body, and wipe with a cloth if necessary. Insert the empty clean water tank back into the appliance body and press it firmly, as shown by the arrow in the figure below. Clean water tank (empty) Power on the appliance and press the ‘Spray’...
- Page 20 Cleaning the Accessories After use, remove the tough stain brush or upholstery brush from the appliance, wash thoroughly, and air dry. Do not place them in direct sunlight. Upholstery cleaner Tough stain brush Clean water tank Wastewater tank Disassembling the Tough Stain Brush Pull the cover upwards to remove it.
- Page 21 Assembling the Tough Stain Brush Insert the rib in the brush body into the slot in the brush cover. Rotate the cover until you hear a ‘click’, indicating that the brush is securely assembled. Slot Cover Body Cleaning the Nozzle If the nozzle is blocked, clean it immediately using a pin or needle.
- Page 22 Inspecting the Hose Periodically check the hose for holes or damage. Air leaking Cleaning the Inlet Air Sponge and Filter Sponge The inlet air sponge and filter sponge are replaceable parts that should be cleaned or washed periodically. Replace them if necessary.
- Page 23 Solution Turn off the power, unplug Poor contact due to a loose the power cord, and re-plug it plug or incorrect plugging. securely. Damaged internal/external Contact help.Kogan.com for Working power cord. support. abnormally Power is off. Press the ‘Power’ button.
- Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
