Summary of Contents for THORLABS SB5X6

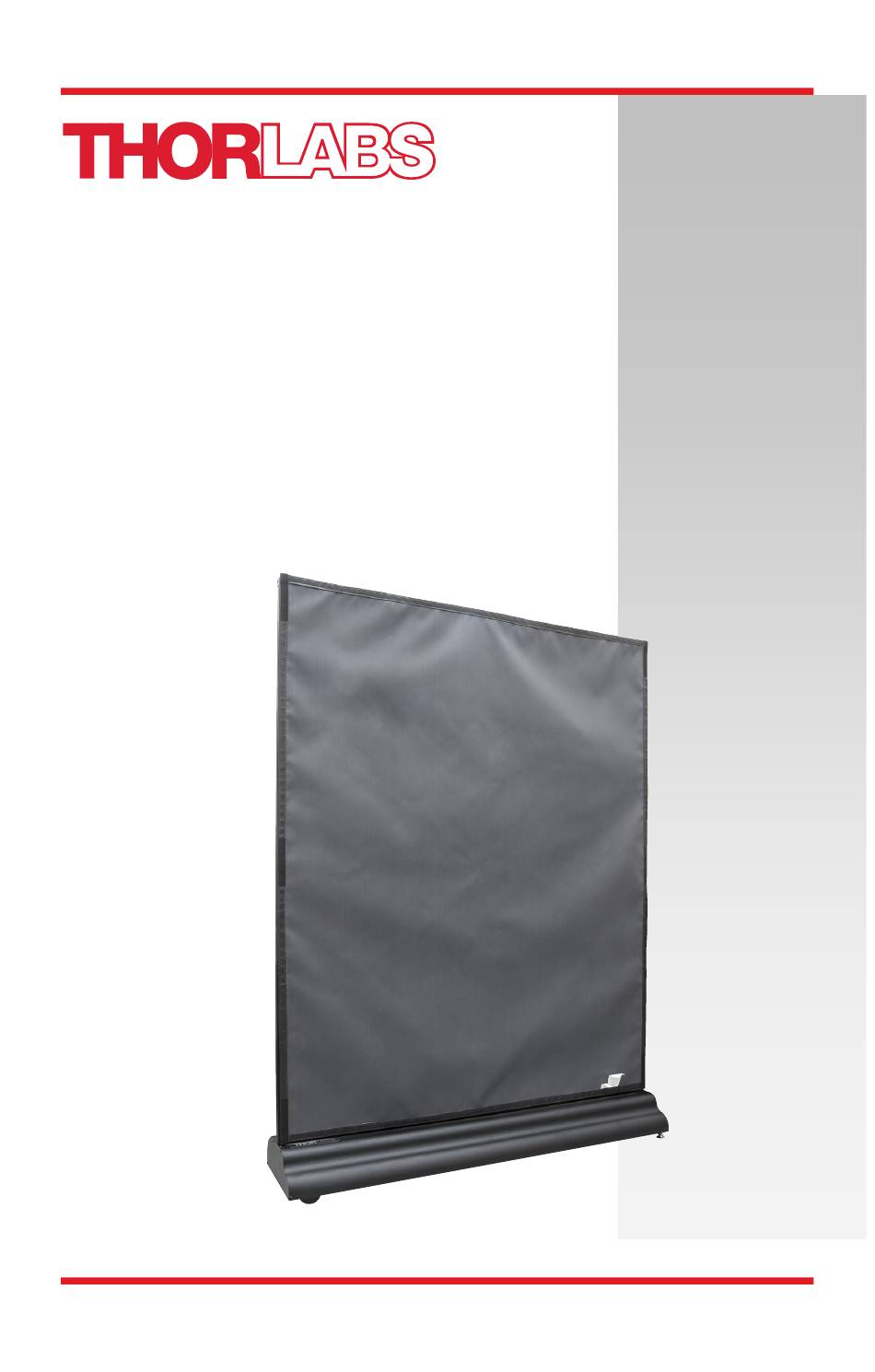

- Page 1 SB5X6 Laser Safety Barrier Assembly Guide...
- Page 2 Chapter 1: Safety Table of Contents Chapter 1 Safety ................. 2 Chapter 2 Assembly Instructions ............. 2 2.1. Unpacking .............. 2 2.2. Assembly ............... 4 Chapter 3 Thorlabs Worldwide Contacts........10 Page 1 Rev E, December 14, 2016...
- Page 3 2.1. Unpacking The SB5X6 base serves as a storage compartment for the panel and its assembly components when not in use. Remove SB5X6 from packaging and placing the two casters and leveling feet on the ground. Pull up on the quarter circle cover panel.
- Page 4 Laser Safety Barrier Chapter 2: Assembly Instructions Remove all of the components from the base. Figure 2 shows all of the parts. Figure 2 (1) Laser Curtain Base (1) Fabric Barrier Panel (1) Top Rail Support (4) Side Rail Support (2) 1/4"-20 Low Profile Socket Head Cap Screw 3/8"...
- Page 5 Laser Safety Barrier Chapter 2: Assembly Instructions 2.2. Assembly Observe the ends of the (4) Side Rail Supports. Notice that one end has a tapped hole while the other end is does not (Figure 3a). A red dot also depicts what side has the tapped hole. Orient side rail support so the tapped hole is facing down and the hook-and-loop fastener is facing the front of the base.
- Page 6 Laser Safety Barrier Chapter 2: Assembly Instructions Hook-and-Loop-Fastener Side Insert screw into center hole. Figure 3c Repeat Step 1 for the left side of the barrier. The assembly should look like Figure 4 when finished. Make sure that both sides with hook-and- loop fastener are facing the front of the unit.
- Page 7 Laser Safety Barrier Chapter 2: Assembly Instructions 3. Locate the Top Rail support (longest rail) and the remaining two side rail supports (shorter rails). Align the tapped hole in one of the side rail supports with the smaller of the two holes in cube on the end of the Top rail support (either side). Also, align the supports so the hook‐and‐loop fastener is facing the same direction. See Figure 5a. Insert one 1/4"‐20 Low Profile Socket Head Cap Screw into the large counter bored hole and thread it into the tapped hole in the side rail support, secure the rail to the cube by tightening down the screw with the 1/8" hex key. See Figure 5b. Hook-and-Loop Fastener Sides are Up Figure 5a Figure 5b 19878-D02 Page 6...
- Page 8 Laser Safety Barrier Chapter 2: Assembly Instructions 4. Repeat Step 3 for the remaining side of the top rail support. The assembly should look like Figure 6 below when complete. Hook-and-Loop-Fastener Sides Up Figure 6 5. Insert one rail joint clamp into the internal slot of the side rail support in the base assembly (Steps 1 – 2) as shown in Figure 7. Figure 7 Page 7 Rev E, December 14, 2016...
- Page 9 Laser Safety Barrier Chapter 2: Assembly Instructions 6. Repeat step 5 with the remaining rail joint clamp on the remaining side rail support in the base assembly. 7. Place the side rail and top rail support assembly on top of the base assembly so the side rail supports on each assembly are aligned with one another. The hook‐and‐loop fastener on the side rails should be on the same side. Slide the two rail joint clamps up to the point where the side rail clamps meet one another and tighten the clamps using the 1/8" hex key so it locks both rails together. See Figure 8. Figure 8 19878-D02 Page 8...
- Page 10 Laser Safety Barrier Chapter 2: Assembly Instructions 8. Unroll the fabric barrier panel. Notice there is hook‐and‐loop fastener on three edges of the fabric. Align the barrier panel so the edge without a hook‐and‐loop‐fastener strip is on the bottom near the base. Now, attach one side of the panel to the hook‐and‐loop fastener on one the side rail supports. Stretch the material across the front of the frame and attach the other side of the panel to the hook‐and‐loop fastener on the remaining side rail. Finally, attach the panel to the hook‐and‐ loop fastener at the top of the panel. See Figure 9. Completed Front View of Two SB5X6 Units Figure 9 Page 9 Rev E, December 14, 2016...
- Page 11 Laser Safety Barrier Chapter 3: Thorlabs Worldwide Contacts Chapter 3 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
- Page 12 www.thorlabs.com...
