READ INSTRUCTIONS CAREFULLY: READ AND FOLLOW ALL INSTRUCTIONS. PLACE INSTRUCTIONS IN
A SAFE PLACE FOR FUTURE REFERENCE.
ONLY USE IN A WELL VENTILATED AREA
USER MANUAL
FOR

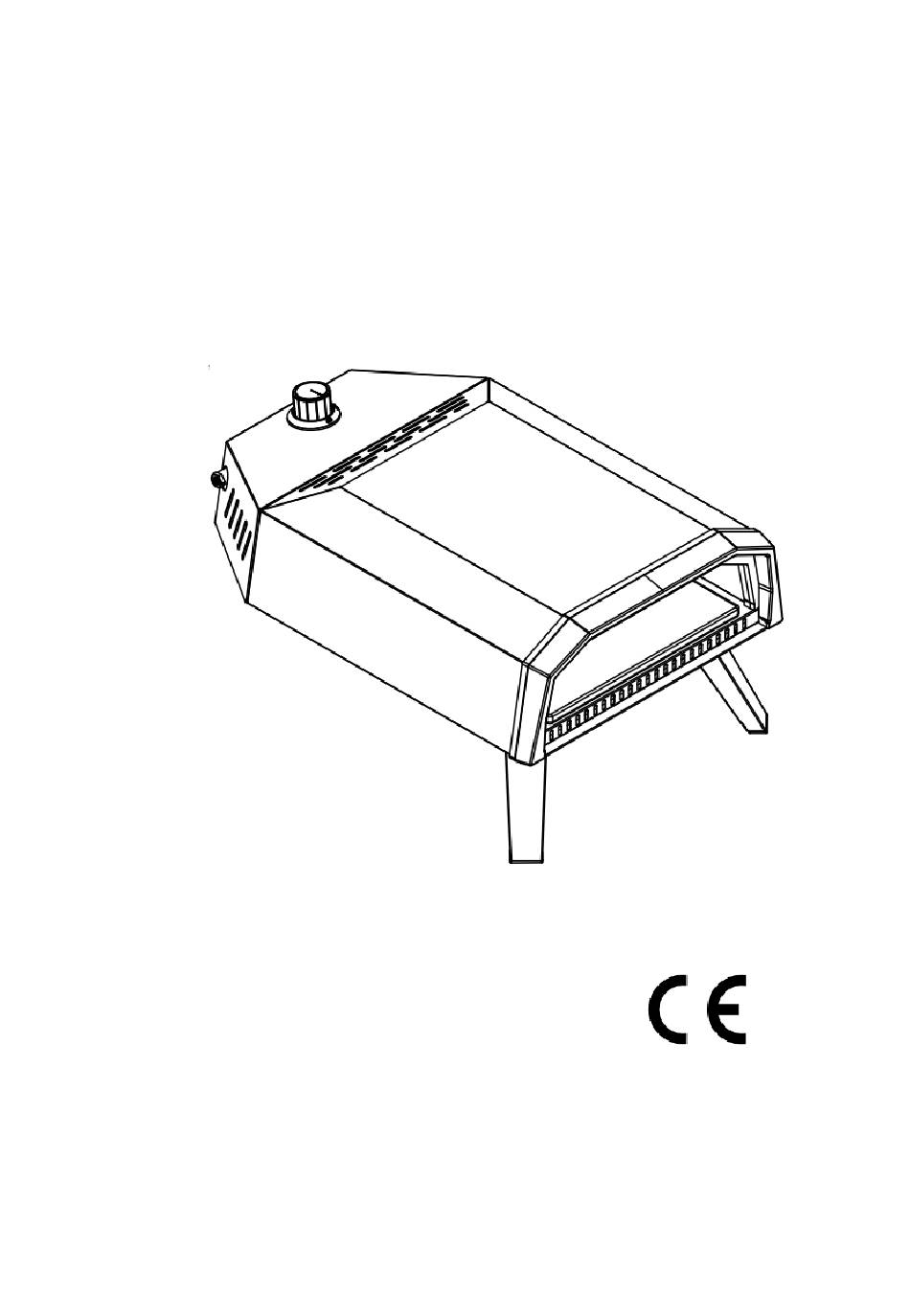

Gas pizza oven
KF-PZ01
）// 994900
（
P.I.N.: 2531DN-0131
2531/22
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY. A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE. PERSONAL
INJURY OR LOSS OF LIFE
Manufacturer: Kingfer Industial Co., Ltd.
Address: 1
F, 1
Building, No 7, Damei Road, Gangkou Town Zhongshan City
st
st
Guangdong Province, China
0
Advertisement
Summary of Contents for Kingfer Industrial KF-PZ01
- Page 1 READ INSTRUCTIONS CAREFULLY: READ AND FOLLOW ALL INSTRUCTIONS. PLACE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. ONLY USE IN A WELL VENTILATED AREA USER MANUAL Gas pizza oven KF-PZ01 ）// 994900 （ P.I.N.: 2531DN-0131 2531/22 WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY. A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE.
- Page 2 11) This appliance requires hose and regulator, check with your gas supplier. Brief: The pizza oven installed with Automatically shut off gas device(Flame failure protection Device) and Piezo ignition. Manufacturer: Kingfer Industial Co., Ltd. Model: KF-PZ01 EN 498 -2012, Product: Gas pizza oven For outdoor use only.
- Page 3 WARNINGS WARNING WARNING To reduce the risk of fire, burn hazard or other injury, When using a match to light the appliance, make sure to use read this safety manual carefully and completely before the included matchstick holder. using this appliance. WARNING WARNING Do not store this appliance indoors unless the gas...
- Page 4 Warning: The parts which have been sealed by the manufacturer should not be adjusted by the user. When the appliance is using LPG, a LPG cylinder (between 2-15kgs) should be used. The recommend LPG cylinder sizes between: 2kgs to 15kgs. The appliances is to be installed in outdoors, Donot use indoors.
- Page 5 PARTS LIST 1. pizza oven, Model KF-PZ01 X 1PC 2. 12” pizza Stone x 1PC 3. Pizza peel x 1PC ASSEMBLY Before assembly, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the appliance.
- Page 6 3a. connecting gas hose directly to KF-PZ01, A). The hose connection thread direction may be different according to different region. B). Should you use two spanners to tighten the hose connection. C). Holding the spanner 2, and twist the spanner 3, until the connection is tighten.
- Page 7 5b) This is push-on gas fitting. Ensure that the block switch is in the horizontal position or (OFF Position). Depress the button located below the black switch and press the regulator on to the cylinder valve until it locks into place.
- Page 8 USING THE OVEN The burner is nominated heat input rated at 4.1KW, and 3KW at minimum. To begin: 1. Make sure the oven has been leak tested and properly placed. 2. Remove any remaining packing material. 3. Light the burner using the LIGHTING INSTRUCTIONS below LIGHTING INSTRUCTION TO LIGHT THE BURNER 1.
- Page 9 WARNING As Fig 7 shown, The working surfaces, body(1), gate frame(2), pizza stone (3), Base(4) and pizza stone supporter(5) are very hot during working and turn off the oven after use, in order to avoid of get burned or injured, please wear heat resistance gloves (6, donot include) while operation and cooking pizzas etc.
- Page 10 TROUBLESHOOTING Problem Possible Cause Prevention/Solution Burner will not light 1. No gas flow 1. Check to see if propane tank is empty 2. Coupling nut and regulator not fully 2. Turn the coupling nut about one- half to connected three quarters additional turn until 3.
