Summary of Contents for Telos LRF

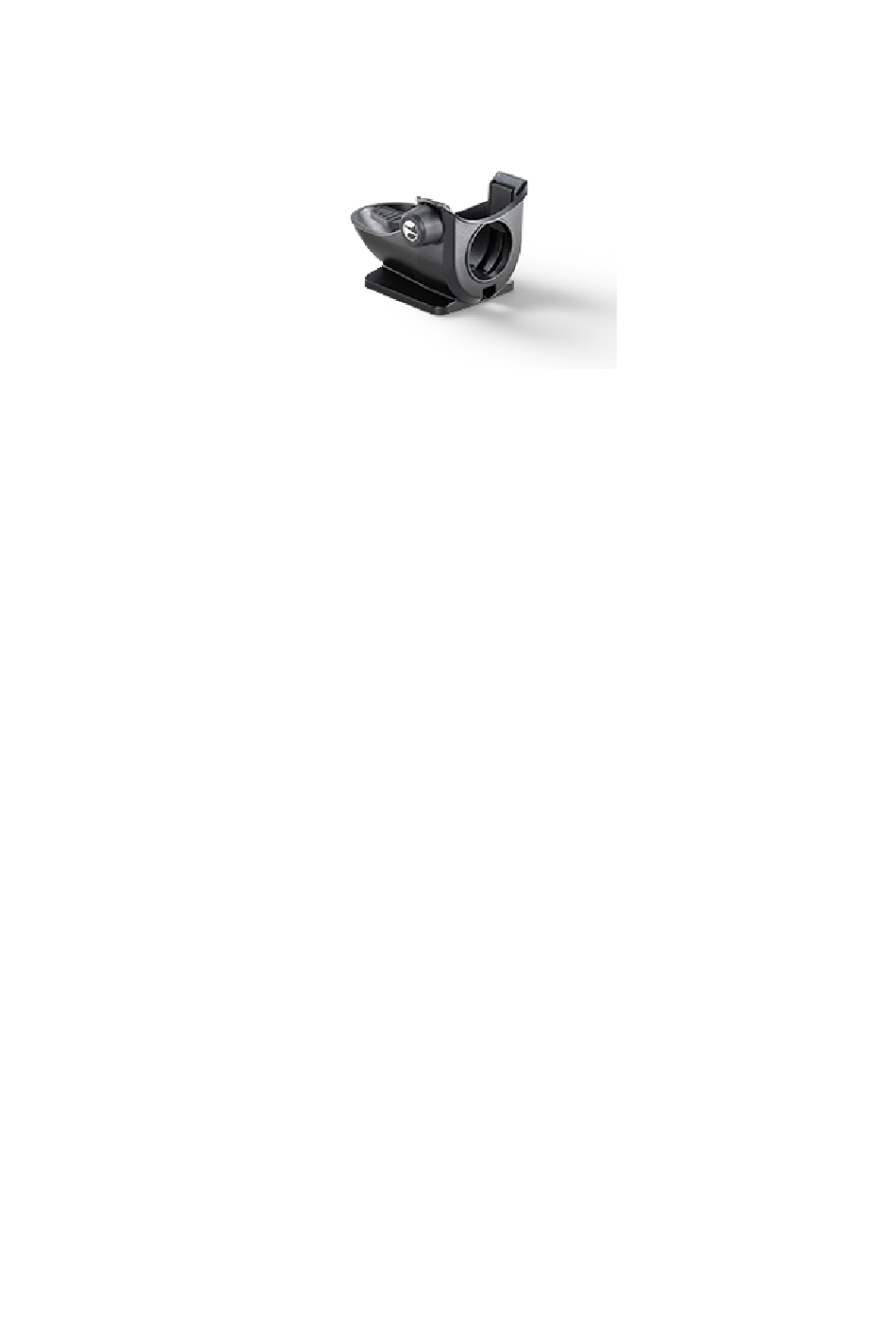

- Page 1 Telos LRF Tripod Adapter Manual...
- Page 2 Content Description Installing on a Tripod...
- Page 3 Description The Telos LRF tripod adapter is compatible with all Telos LRF models. The adapter is designed for fixing your Pulsar Telos LRF monocular on the tripod and for leveling the device horizontally and vertically using the tripod mounting plate.
- Page 4 Installing on a Tripod...
- Page 5 1. Screw the tripod adapter (2) onto the tripod mounting plate until it stops. 2. Attach the mounting plate (3) to the tripod. 3. Install the Telos LRF (1) device into the tripod adapter (2)so that the rangefinder lens aligns with the hole on the front of the tripod adapter (2).
