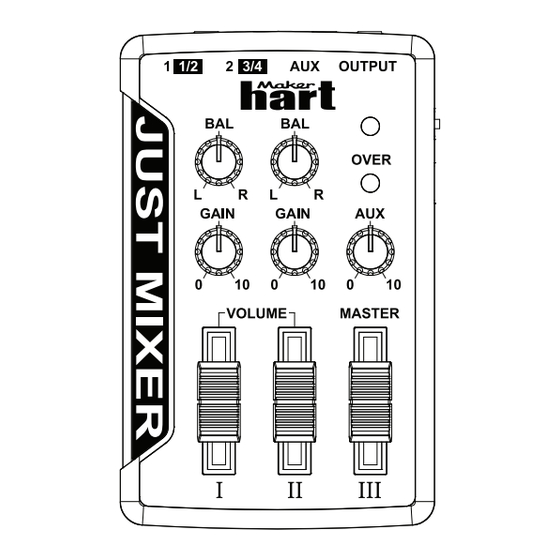

Maker Hart JUST MIXER Owner's Manual

3 STEREO / 5 MONO CHANNEL MIXER
*G6037087R0*
G6037087R0
IMPORTANT NOTES
NOTES CONCERNING BATTERIES
If you heard noise, it may because battery power is running low.
Please replace the battery.
The life of the supplied batteries may be limited, since its primary
purpose was to enable testing.
When installing or replacing batteries, always turn this unit off
and disconnect any other devices you may have connected.
This way, you can prevent malfunction and damage.
If used improperly, batteries or rechargeable batteries may
explode or leak and cause damage or injury. In the interest of
safety, please read and observe the following precautions.
Carefully follow the installation instructions for batteries, and
make sure you observe the correct polarity.
Remove the batteries whenever the unit is to remain unused for
an extended period of time.
Used batteries must be disposed of in compliance with whatever
regulations for their safe disposal that may be observed in the
region in which you live.
PLACEMENT
Do not subject the unit to temperature extremes (eg., direct sunlight
in an enclosed vehicle).
Avoid using or storing the unit in dusty or humid areas, or areas that
are subject to high levels of vibration.
Using the unit near power amplifiers (or other equipment containing
large power transformers) may induce hum.
3
JUST MIXER
Owner's Manual
Thank you for purchasing the JUST MIXER. To take full advantage of the
JUST MIXER, and to ensure Proper operation, please read this owner's
manual carefully.
FEATURES
Stereo 3 in/1 out Configuration
3 stereo devices on JUST MIXER can connect up to 5 mono device.
Microphone Setup
By Gain knob adjustment, input signal level is adjusted to input signal
level of microphone. (Recommend to use high sensitive microphone)
Overload lndicator
The OVER LED allow you to set the best signal level for optimum audio
performance.
Phones Jack
Stereo headphones can be connected to this jack for convenient mix
monitoring.
SPECIFICATIONS
3 stereo / 5 mono input
1 stereo output
L / R Balance control
Gain control : Max 20 dB
1.5V(AAA) x 2 or 5V Power bank
It is recommended not to use power bank with other
＊
devices to avoid noise.
MAINTENANCE
For everyday cleaning wipe the unit with a soft, dry cloth or one that has
been slightly dampened with water. To remove stubborn dirt, use a mild,
nonabrasive detergent. Afterwards, be sure to wipe the unit thoroughly
with a soft, dry cloth.
Never use benzene, thinners, alcohol or solvents of any kind, to avoid he
possibility of discoloration and/or deformation.
ADDITIONAL PRECAUTIONS
When the following situation occur please turn the power off Immediate-
ly:
Objects have fallen into, or liquid has been spilled onto the unit; or The
unit has been exposed to rain(or otherwise has become wet);or The unit
does not appear to operate normally or exhibits a marked change in
performance.
Dimensions : 68 x 105 x 24mm
Weight : 90g (no battery)
Accessory : Owner's Manual,
1.5V(AAA) x 2
