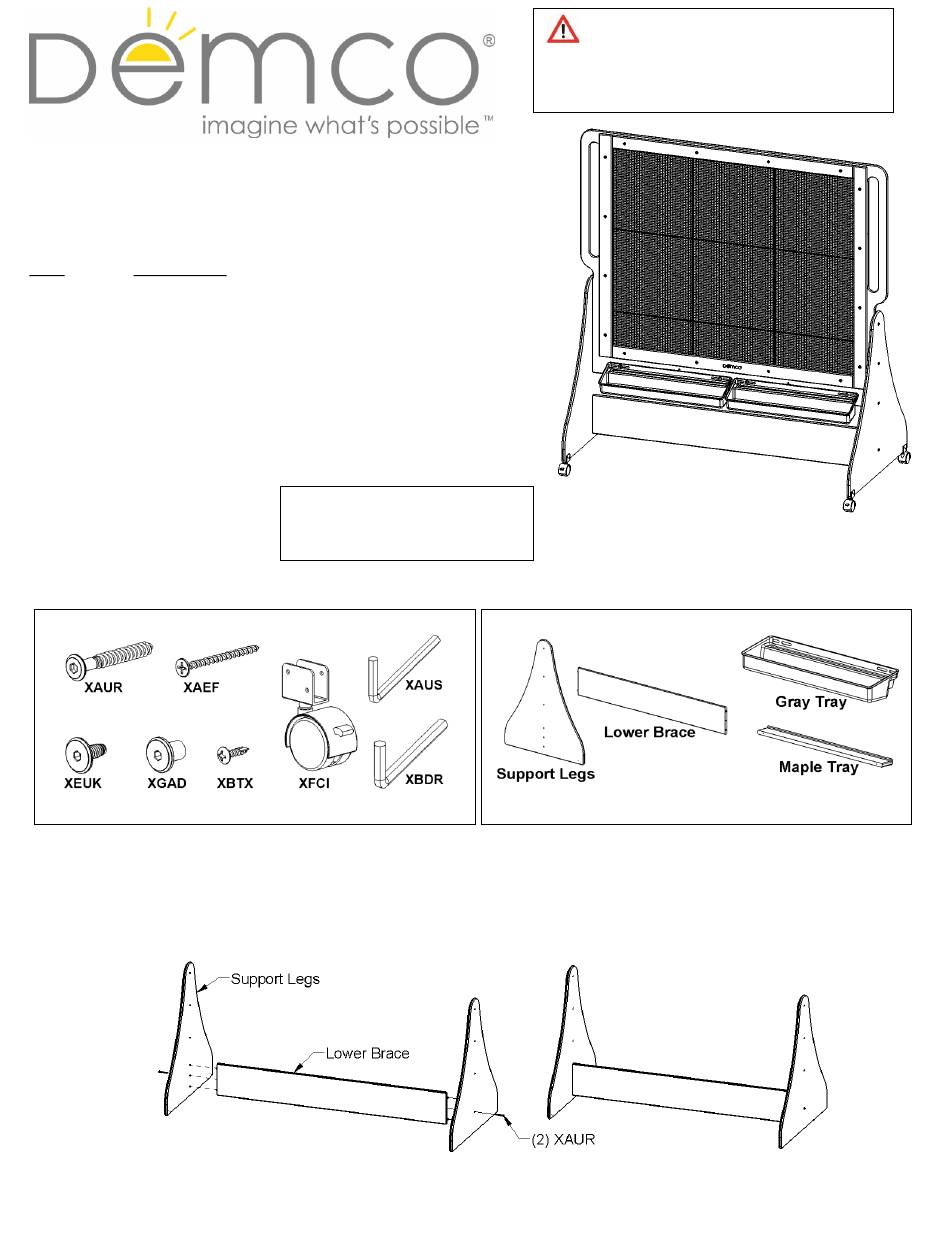

Demco 3717DM Assembly Instructions

3717DM, 3718DM, 3719DM
Instructions for Assembling the Mobile
Build 'N Write Board
Hardware Package HCIN
Qty. Description
(8) XAUR 2" Decorative Screw
(2) XAEF 2" Drywall Screw
(4) XEUK Connector Bolt
(4) XGAD Connector Nut
(4) XFCI Locking Caster, U-Stem
(16) XBTX #6 X 5/8" Truss head Screw
(1) XAUS 4mm Hex Wrench
(1) XBDR 5mm Hex Wrench
Also Included:
(1) Lower Brace
(2) Support Legs
(2) Plastic Gray Tray
(1) Maple Easel Tray
*Pictures may vary from actual unit.
Hardware Package:
Not Actual Size
Assembly Instructions:
1. Begin with 2- Side Supports (BKSN) and 1- Lower Brace (BKSM). Align the dowels on each
end of the Lower Brace with corresponding holes in each Side Support.
Attach with 2- 2" Decorative Screws (XAUR), 1 each end using 4mm Hex Wrench (XAUS).
Do not tighten completely, these should be tightened in the next step.
DHCIN – 20 May 2019
Tools Required:
-4mm Hex Wrench, (Provided)
-Medium Phillips Screwdriver
Page 1 of 3
WARNING:
CHOKING HAZARD- Assembly hardware
contains small parts.
Adult assembly required.
Included:
Not Actual Size
