Bottom Menu Side Menu Sub-Menu
r-— Operation ——|_ Type
Region Shift... ————|- Shift Scale Value
r-- Horizontal Zoom in Contig...
[Horizontal Zoom out 3
[-- Horizontal Zoom fit °3
[~~ Horizonial Pan *3
h-~ Zoom
h-~ Vertical Zoom in
t-- Vertical Zoom out "4
r-~ Vertical Zoom fit "4
r-— Setting Clock"
bo Cursor Link to...°1 tS Waveformxx
"——— Link Off
bene Grid
p—~ Undo
r— Type
—_ "6
Standard oe cle 6
[Waveform po Frequency
r-- Write and Close
—— Clase/Write ————+--~_ Close without Writing

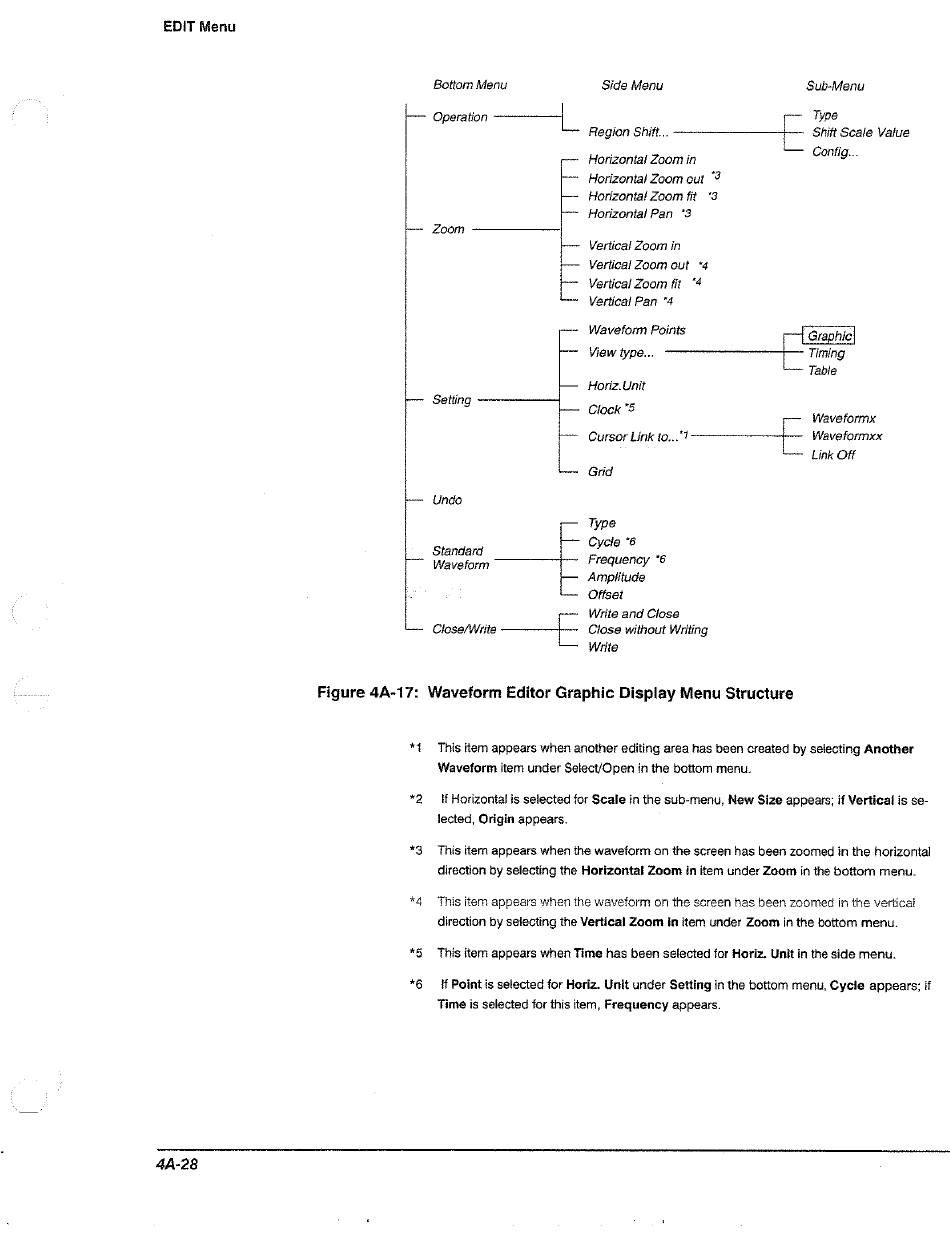

Figure 4A-17: Waveform Editor Graphic Display Menu Structure
*{ This itern appears when another editing area has been created by selecting Another
Waveform iter under Select/Open in the bottom menu.
*2 If Horizontal is selected for Scale in the sub-menu, New Size appears; if Vertical is se-
lected, Origin appears.
*3 This item appears when the waveform on the screen has been zoomed in the horizontal
direction by selecting the Horizontal Zoom in item under Zoom in the bottom menu.
*4 This item appears when the waveform on the screen has been zoomed in the vertical
direction by selecting the Vertical Zoom in item under Zoom in the bottom menu.
*§ This item appears when Time has been selected for Horiz. Unit in the side menu.
*6 if Point is selected for Horiz. Unit under Setting in the bottom menu, Cycle appears: if
Time is selected for this item, Frequency appears.
4A-28
