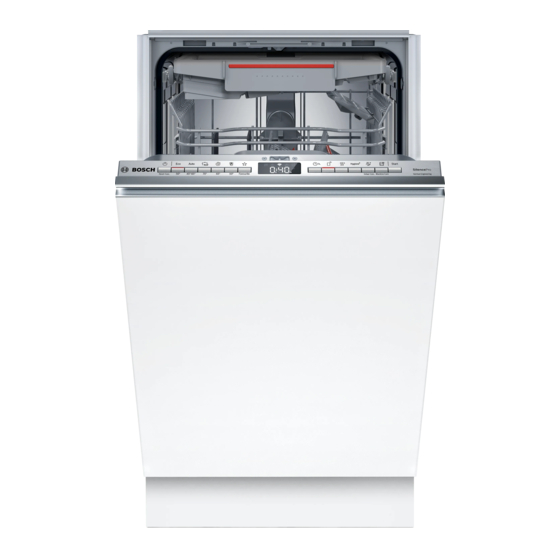

- Page 1 Dishwasher SPV4HMX65Q [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
- Page 2 Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Additional functions .... 20 1.1 General information.... 4 9 Features........ 20 1.2 Intended use...... 4 9.1 Top basket....... 21 1.3 Restriction on user group.. 4 9.2 Etagere ........ 21 1.4 Safe installation ......
- Page 3 21 Customer Service.... 51 14.2 Arrange tableware .... 30 21.1 Product number (E-Nr.), 14.3 Removing tableware.... 31 production number (FD) 15 Basic operation ....... 31 and consecutive numbering (Z-Nr.) ........ 51 15.1 Opening appliance door .. 31 21.2 AQUA-STOP guarantee .. 51 15.2 Switching on the appliance ...
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
- Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
- Page 6 en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines.
- Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
- Page 8 en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
- Page 10 en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses.
- Page 11 Childproof lock en So as not to scratch the finish on Pull the catch of the childproof ▶ the appliance, do not use sponges lock forwards and close the ap- with a rough surface or abrasive pliance door . cleaning agents. To prevent corrosion, do not use ▶...
- Page 12 en Installation and connection 4.2 Saving energy 5.2 Installing and connecting the appliance If you follow these instructions, your appliance will use less electricity and You can position your built-under or less water. integrable appliance in a fitted kit- chen between wooden and plastic Use the Eco 50°...
- Page 13 Installation and connection en When doing so, check that the Insert the mains plug of the appli- wastewater hose is not kinked, ance's power cable in a socket crushed or twisted. nearby. Also check that there is no cover The connection data of the appli- in the drainage system preventing ance can be found on the rating the wastewater from being dis-...
- Page 14 en Familiarising yourself with your appliance 6 Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 51. The data you need for Customer Service → Page 51.
- Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 27 Bottom basket Bottom basket → Page 22 Filter system Filter system → Page 40 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 24 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
- Page 16 en Familiarising yourself with your appliance 6.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button...
- Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 36 Remote Start → "Remote Start ", Page 37 Timer programming Setting timer programming → Page 32 Door handle Open the appliance door. → Page 31 Display The display shows information about the remaining running time or the ba-...
- Page 18 en Programmes 7 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
- Page 19 Programmes en Programme Programme se- quence Tableware: Time-optimised: ¡ Mixed tableware and cutlery ¡ Cleaning 65 °C Express 65° - 1h Level of soiling: ¡ Intermediate rinse ¡ Common household food rem- ¡ Final rinse 69 °C nants lightly dried on ¡ Dry Use only if appliance is unloaded.
- Page 20 en Additional functions 8 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
- Page 21 Features en Raise or lower the basket evenly to 9.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top a The basket clicks into position.
- Page 22 en Features 9.3 Bottom basket 9.4 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Large plates up to a diameter of You can fold the prongs down to po- 31 cm can be arranged in the bottom sition pans, bowls and glasses basket as shown.
- Page 23 first time en 9.5 Cutlery drawer first time 10 Before using for the Arrange cutlery in the cutlery drawer. first time first time 10.1 Performing the initial configuration On initial start-up or after a reset to the factory settings, you will need to make settings. Tip: Connect your appliance to a mo- bile device.
- Page 24 en Water softening system To ensure good dishwashing results, 11 Water softening sys- you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E Hard water leaves limescale on the must be softened.
- Page 25 Water softening system en To save the settings, press Note: Only use special salt for for 3 seconds. dishwashers. Do not use salt tablets. Do not use table salt. 11.3 Special salt Add the special salt to the dis- You can use special salt to soften penser.
- Page 26 en Rinse aid system ¡ The water hardness is 0 - 8 °E. Add rinse aid up to the max mark. You do not need to use special salt. Press . To open the basic settings, press for 3 seconds. a The display shows Hxx. a The display shows ...
- Page 27 Detergent en To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 12.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g.
- Page 28 en Detergent With powder and liquid detergent the 13.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- ¡...
- Page 29 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
- Page 30 en Tableware 14.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer.
- Page 31 operation en ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 14.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin.
- Page 32 en operation If the childproof lock is activated, 15.4 Setting additional func- press the catch of the lock to the tions right and open the appliance door . You can set additional functions to complete the washing programme selected. Note: The additional functions which can be used depend on the pro- gramme selected.
- Page 33 operation en ¡ You can only change a pro- Press gramme when running if you can- Tip: If you press during the wash cel it. cycle, the programme currently run- → "Terminate programme", ning will be interrupted. When you Page 33 switch the appliance back on, the ¡...
- Page 34 en Basic settings 16 Basic settings You can configure the basic settings for your appliance to meet your needs. 16.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness.
- Page 35 Basic settings en Basic setting Display text Selection Description InfoLight I00 - I01 Switch InfoLight on or off. While the programme is run- ning, a spot of light is pro- jected onto the floor below the appliance door. This light will not be visible if the appli- ance is installed at eye level with the cabinet front fitted flush.
- Page 36 en Home Connect Basic setting Display text Selection Description Remote Start rc0 - rc2 Activate or deactivate → "Remote Start ", Page 37. The following settings are possible: ¡ With the setting "rc0", the function is permanently deactivated. ¡ With the setting "rc1", the function can be selected via the button.
- Page 37 Home Connect en depends on the availability of Start the Home Connect app and Home Connect services in your coun- set up access for Home Connect. try. You can find information about The Home Connect app guides this at: www.home-connect.com. you through the entire login pro- To be able to use Home Connect, cess.
- Page 38 en Cleaning and servicing Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app.
- Page 39 Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which...
- Page 40 en Cleaning and servicing ¡ Make sure that there are no alu- 18.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically.
- Page 41 Cleaning and servicing en Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ...
- Page 42 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
- Page 43 Troubleshooting en 19 Troubleshooting Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. Only use genuine spare parts when repairing the appliance.
- Page 44 en Troubleshooting Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 45 Troubleshooting en Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 46 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Select a more intensive washing programme. ▶ tableware. → "Programmes", Page 18 Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. Only remove large remnants of food and do not ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶ Salt content in washing water is too high. Remove any spilled special salt from the tub. Screw the cap of the special salt dispenser on tight.
- Page 49 Transportation, storage and disposal en Insert the pump cover and press 19.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned.
- Page 50 en Transportation, storage and disposal 20.2 Protect appliance from 20.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely.
- Page 51 Customer Service en ¡ The liability guarantee is valid for 21 Customer Service the service life of the appliance. ¡ A claim can only be made under Detailed information on the warranty the guarantee if the appliance has period and terms of warranty in your been correctly installed and con- country is available from our after- nected with Aqua-Stop according...
- Page 52 en Technical specifications 22 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 10 place settings and additional documents).
- Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
