AVCLINK P430X
User Manual
AVCLINK P430X
PTZ-камера для видеоконференций
Руководство по эксплуатации

Advertisement

loading
Need help?

Need help?

Do you have a question about the P430X and is the answer not in the manual?

Questions and answers

Summary of Contents for AVCLINK P430X

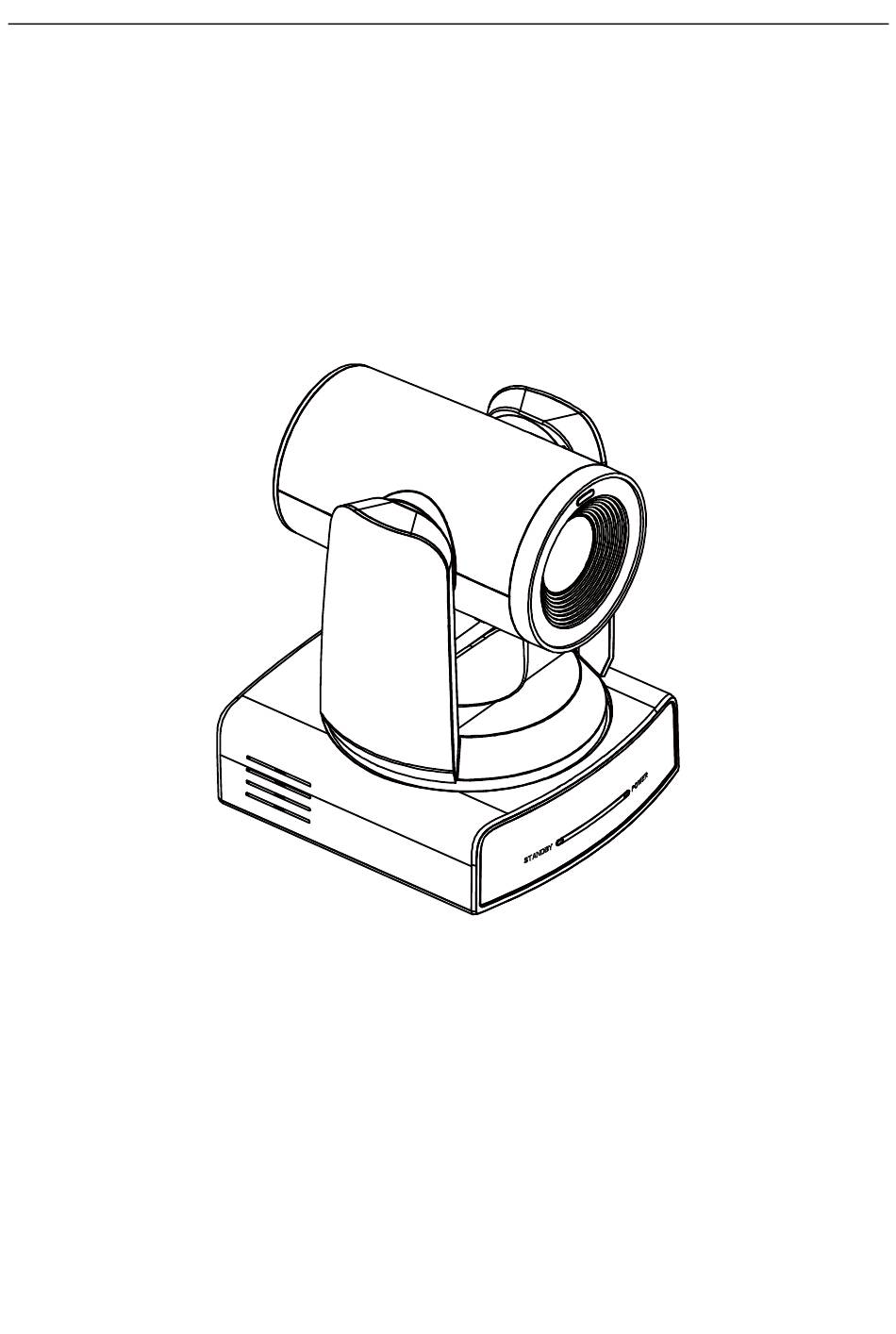

  • Page 1 AVCLINK P430X User Manual AVCLINK P430X PTZ-камера для видеоконференций Руководство по эксплуатации...
  • Page 2 AVCLINK P430X User Manual Copyright All contents of this manual, whose copyright belongs to our corporation, cannot be cloned, copied or translated without the permission of our corporation. Notice Product specifications and information which were referred to in this document are for reference only.
  • Page 3 AVCLINK P430X User Manual Catalogue Safety Precautions ..............................1 Packing List ................................1 Product Connection ............................. 1 Video Format ................................2 About Product ................................ 2 Features ....................................2 Specifications ..................................3 Interface and Switch ................................. 4 Dimension ..................................... 4 Installation ................................... 5 Remote Control ...................................
  • Page 4 AVCLINK P430X User Manual 7.5.5 Noise ..................................... 14 Audio Settings .................................. 14 System Settings ................................14 7.7.1 Initialize ....................................14 7.7.2 User ....................................... 14 7.7.3 U Disk Record ..................................14 7.7.4 Online Upgrade................................. 15 Network Settings ................................15 7.8.1 Lan ......................................15 7.8.2 Port ......................................
  • Page 5 AVCLINK P430X User Manual ⚫ If the device emits smoke, smells, or makes Safety Precautions noises, please turn off the power immediately and unplug the power cord, and ⚫ During the installation and use of the contact the dealer in time.
  • Page 6 AVCLINK P430X User Manual 2) After the camera is powered on, it starts to ⚫ NDI|HX2 (Optional) initialize, right up to the limit position, and NDI|HX2 has the characteristics of low delay then both horizontal and vertical go to the...
  • Page 7 AVCLINK P430X User Manual 5.2 Specifications PoE+ Support Preset Position Camera Preset Accuracy 0.1° HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, USB Features (USB 3.0 Optional) 4KP29.97, 1080P60, Windows 7/8/10, Mac OS X, 1080P50, 1080P59.94, Operate System Linux, Android 1080P30, 1080P29.97,...
  • Page 8 AVCLINK P430X User Manual 5.3 Interface and Switch Interfaces 1 x LINE IN: 3.5mm Audio Input Interface Audio Interface 1 x LINE OUT: 3.5mm Audio Output Interface 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/ Pelco-P 1 x RS232 IN: 8pin Min DIN,...
  • Page 9 AVCLINK P430X User Manual 5.5 Installation Ceiling Mount The above installation diagram is for reference only, please refer to actual product for the installation accessories. Note...
  • Page 10 AVCLINK P430X User Manual 7. ZOOM Keys 5.6 Remote Control ⚫ SLOW: Zoom In [+] or Zoom Out [-] slowly ⚫ FAST: Zoom In [+] or Zoom Out [-] fast 8. L/R SET Key ⚫ Standard: Simultaneously press [L/R SET] + CAMERA SELECT ⚫...
  • Page 11 AVCLINK P430X User Manual Gain Limit: 0~15 (Effective only in Auto, SAE, AAE, Bright mode). GUI Settings Anti-Flicker: Off, 50Hz, 60Hz (Effective only in Auto, AAE, Bright mode). 6.1 MENU Meter: Average, Center, Smart, Top (Effective Press [MENU] key to display the main menu on only in Auto, SAE, AAE, Bright mode).
  • Page 12 AVCLINK P430X User Manual AF-Sense: High, Low, Normal. 6.4 IMAGE L/R Set: STD, REV. Move the main menu cursor to [Image], and Display Info: On, Off. press [HOME] key enter the image page, as Image Freeze: On, Off. shown in the following figure.
  • Page 13 AVCLINK P430X User Manual Video Mode: Press the [HOME] key to confirm V_Address: 1~7 (Effective only in Auto, enter the "Video Mode" page and set SDI-3G VISCA protocol). Mode, Video Output. V_AddrFix: On, Off (When set to On, useless in SDI-3G Mode: LEVEL-A, LEVEL-B.
  • Page 14 AVCLINK P430X User Manual 1) Pan and Tilt Control 7.2 Control Camera The direction arrows and HOME button allow All pages include two menu bars: you to manually drive the camera to desired Real Time Monitoring: Video image displaying position.
  • Page 15 AVCLINK P430X User Manual 6) Bit Rate 7.3 Video Settings The user can specify the bit rate. Generally Video Settings speaking, the larger of the bit rate, the clearer of the image. However, the configuration of the bit HDMI/SDI Output...
  • Page 16 AVCLINK P430X User Manual 1) Auto Zoom/Auto Tilt 7.5 Image Settings When Auto Zoom or Tilt is off, camera stops 7.5.1 Exposure zooming in/out or tilting automatically. Determine the zoom size and tilt position based on the tracking start position you choose. When auto zoom is off, camera stops zooming In/Out automatically.
  • Page 17 AVCLINK P430X User Manual 1) Luminance 7.5.2 Color Luminance: 0~14. 2) Contrast Contrast: 0~14. 3) Sharpness Sharpness: 0~11. 4) Flip-V Turn On/Off the Flip-V function. 5) Flip-H Color Exposure Image P/T/Z Noise Turn On/Off the Flip-H function. WB Mode Auto RG Tuning 6) B&W-Mode...
  • Page 18 AVCLINK P430X User Manual 7.7 System Settings 7.5.5 Noise 7.7.1 Initialize 1) Reboot Click “Reboot” to restart system. Noise Exposure Color Image P/T/Z 2) Factory Default Click the “Factory Default”, and the “Please press 3D NR OK to reset the camera.” dialog box pops up.
  • Page 19 AVCLINK P430X User Manual 1) Record Settings 7.8.2 Port Set up the File Format and Packed Time. 2) USB Flash Disk Information HTTP Port View the Capacity and Free Space of the USB RTSP Port Flash Disk. TCP Port 5678 7.7.4 Online Upgrade...
  • Page 20 AVCLINK P430X User Manual 6690 is the multicast port of the second stream). 7.8.4 SRT Settings 7.8.8 FreeD SRT Mode Listener SRT Server 192.168.100.1 SRT Port 4578 SRT Encryption None SRT Password 1234564913131 SRT Bandwidth Overhead SRT Variable Latency Turn On/Off FreeD Data Output, set up the...
  • Page 21 AVCLINK P430X User Manual 2) Time Enable The operation steps are as follows: Enable or disable the Time. Step 1 Enter the current IP address, account, 3) Title Enable and password of the camera through the Enable or disable the Title.
  • Page 22 AVCLINK P430X User Manual Step 3 We can consider how long the Target Retention Time will take, with a default of 6 seconds and a maximum of 10 seconds. Auto Zoom: Usually remains the default. When “Auto Zoom” is turned off, the camera lens can still move, but can only maintain the current magnification and cannot zoom.
  • Page 23 AVCLINK P430X User Manual Step 4 Select the desired close-up effect. ⚫ Figure Size By selecting different modes, users can customize the proportion of characters in the close-up screen, which is a very important feature. The modification here takes effect immediately.
  • Page 24 AVCLINK P430X User Manual ⚫ Tracking Start Position The user can choose the position of the camera lens when starting and stopping tracking. Two Mode: Current Location/Preset 1 If you choose “Current Location”, the camera position when tracking is turned on is the current position;...
  • Page 25 AVCLINK P430X User Manual Step 6 Turn on tracking, press the arrow keys to select the tracking target, and then press Home to confirm.
  • Page 26 AVCLINK P430X User Manual ⚫ Area Tracking (Zone) Function: Divide the frequently active areas of the tracking target into several areas (A, B, C, D) as needed, and set corresponding preset positions and save them. When the tracking target enters this area, the camera will automatically call the preset position corresponding to the area to achieve tracking.
  • Page 27 AVCLINK P430X User Manual Step 3 Use the web interface's directional keys and Zoom In/Out to adjust the lens position, and set multiple preset positions such as Zone A successively, and click “Save”. The number of preset positions to be used in actual application scenarios can be considered by users...
  • Page 28 AVCLINK P430X User Manual ⚫ Tracking Start Area Tracking Start Area: You can select any Zone position as the tracking start or end position. When tracking is turned on, the camera will first move to this Zone position. If someone enters the video screen at this time, the camera will automatically track.
  • Page 29 AVCLINK P430X User Manual Function: This method can quickly achieve on/off tracking and select tracking targets. ⚫ Single Person Scenario Press the F3 key on the remote control to start tracking, and press F4 key to exit tracking mode. When there is only one person in the scene, press the F3 key on the remote control to start tracking, and the camera will lock the target for direct tracking.
  • Page 30 AVCLINK P430X User Manual Troubleshooting Image ⚫ The monitor shows no image 1) Ensure that the camera power supply is connected, the voltage is normal, and the power indicator is always on. 2) Turn off the power switch to check that the camera is self-testing.
