ATR585M(ATR3CMOS08300KMA) User Manual

ATR585M User Manual

Version 1.0

Nov 2024

All materials related to this publication are subject to change without notice and its copyright totally belongs to

ToupTek Photonics.

Please download the latest version from touptek-astro.com.

Need help?

Do you have a question about the ATR585M and is the answer not in the manual?

Questions and answers

Summary of Contents for ToupTek ATR585M

Page 1 ATR585M(ATR3CMOS08300KMA) User Manual ATR585M User Manual Version 1.0 Nov 2024 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
Page 2 ATR585M(ATR3CMOS08300KMA) User Manual Contents ATR585M User Manual............................... 1 Description and Features............................1 ATR585M Specifications and Performance ....................... 1 Camera Specifications ............................. 1 Sony IMX585 Sensitivity ..........................2 12bit ADC and ROI ............................2 DDR3 Buffer..............................2 Binning ................................3 Conversion Gain Switch ..........................3 Power and Cooling System for Precise Temperature Regulation ..............

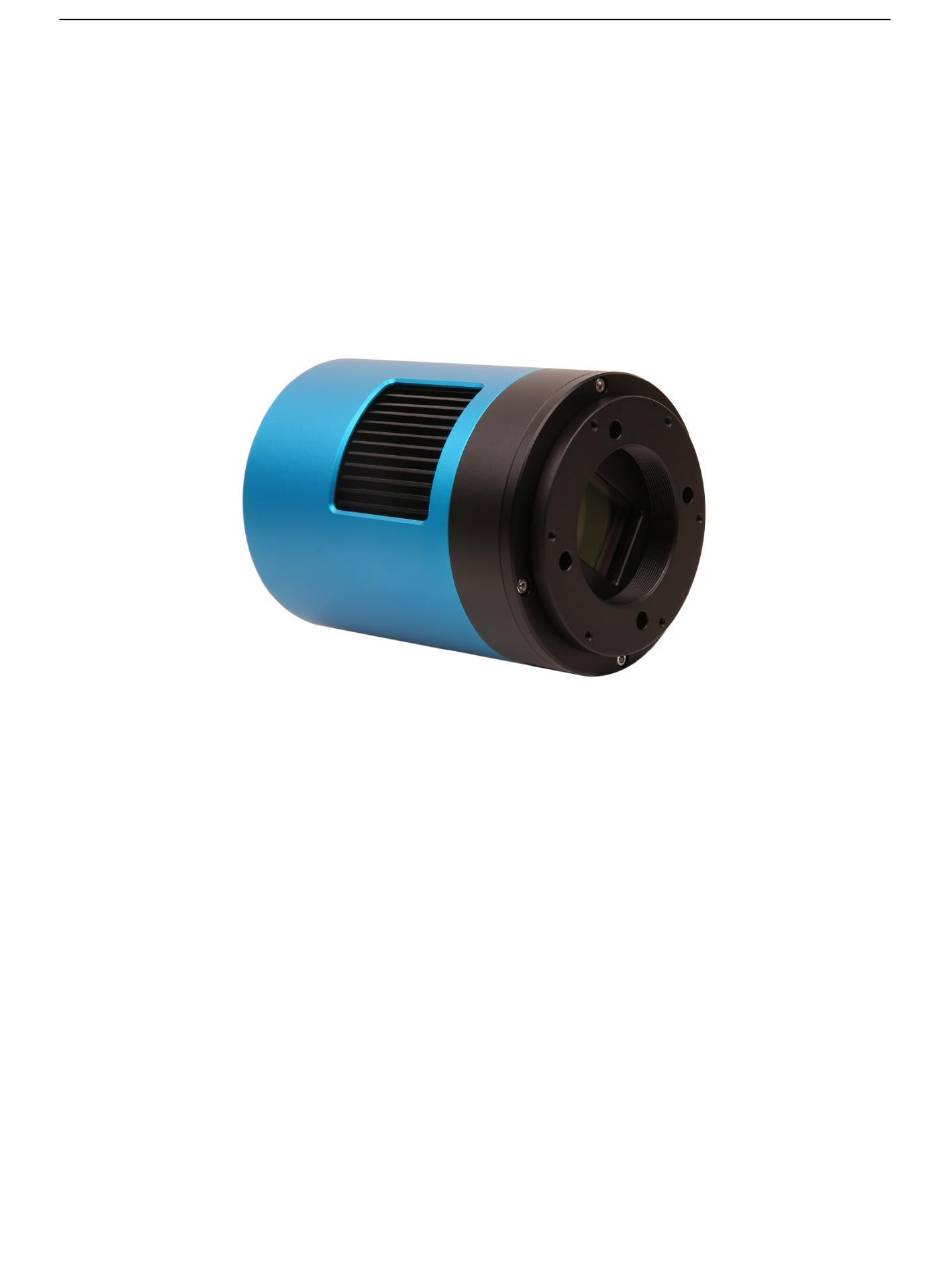

Page 3 ATR585M(ATR3CMOS08300KMA) User Manual 1 Description and Features The ATR585M(ATR3CMOS08300KMA) camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting.
Page 4 ATR585M(ATR3CMOS08300KMA) User Manual...
Page 5 ATR585M(ATR3CMOS08300KMA) User Manual 2 ATR585M Specifications and Performance 2.1 Camera Specifications Table 1 ATR585M Technique Specifications. Sensor Sony IMX585 back illuminated sensor Diagonal 12.85 mm Image Resolution 8.3 mega pixels (3840*2160) 2.9m  2.9m Pixel Size 11.2mm  6.3mm Image Area...
Page 6 2.3 12bit ADC and ROI ATR585M has built in 12bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is.
Page 7 ATR585M(ATR3CMOS08300KMA) User Manual 2.5 Binning ATR585M supports digital binning from 11 to 88 in either stacking or averaging method, and hardware binning from 11 to 22 in averaging method. Hardware pixel binning is much faster than software binning. 2.6 Conversion Gain Switch HCG 、LCG...
Page 8 ATR585M(ATR3CMOS08300KMA) User Manual the same conditions such as noise and A/D converter quality, the greater full well capacity a sensor has, the wider dynamic range the sensor has. As there is a limit to the depth to which pixels can be made, the full well capacity is often proportional to the frontal area of the light gathering element of the pixel.
Page 9 Camera setting used for HCG performance analysis is shown below: ⚫ Full resolution ⚫ RAW 12-bit mode ⚫ Temperature: -10C Figure shows the curves of the camera analysis data in Table 3 Figure 5 e/ADU, Read Noise, Full Well and Dynamic Range for ATR585M...
Page 10 ATR585M(ATR3CMOS08300KMA) User Manual The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1778 3162 5623 10000 15000 Rel Gain (dB) 5.11 10.21 14.98 20.03 25.14 29.78 34.71 39.74 43.35 e-/ADU 1.01...
Page 11 Camera setting used for LCG performance analysis is shown below: ⚫ Full resolution ⚫ RAW 12-bit mode ⚫ Temperature: -10C Figure 6 shows the curves of the camera analysis data in Table 4 Figure 6 e/ADU, Read Noise, Full Well and Dynamic Range for ATR585M...
Page 12 ATR585M(ATR3CMOS08300KMA) User Manual The camera analysis data is shown in Table 4: Table 4 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1778 3162 5623 10000 15000 Rel Gain (dB) 4.82 9.95 14.76 19.85 24.95 29.77 34.79 39.79 43.33 e-/ADU 9.51...
Page 13 ATR585M(ATR3CMOS08300KMA) User Manual Camera setting used for HDR performance analysis is shown below: ⚫ Full resolution ⚫ RAW 16-bit mode ⚫ Temperature: -10C Figure shows the curves of the camera analysis data in...
Page 14 ATR585M(ATR3CMOS08300KMA) User Manual The camera analysis data is shown in Table 5: Table 5 Figure 7 e/ADU, Read Noise, Full Well and Dynamic Range for ATR585M...
Page 15 ATR585M(ATR3CMOS08300KMA) User Manual The camera analysis data is shown in Table 5: Table 5 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1778 3162 5623 10000 15000 Rel Gain (dB) 4.82 14.84 19.96 25.02 29.79 34.87 39.87 43.48 e-/ADU 0.44...
Page 16 ATR585M(ATR3CMOS08300KMA) User Manual 3 Product Package and Connections 3.1 Packing List Figure 8 Packing Information of ATR585M Table 6 ATR585M Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm , not shown in the photo ATR series camera (M42x0.75 Mount+2”...
Page 17 ATR585M(ATR3CMOS08300KMA) User Manual 3.2 Camera Dimension and Its Mount Figure 9 Dimension and Mount of ATR585M Table 6 Dimension and Mount of ATR585M Item Specification 80mm Diameter Height 107.1mm Mount M42Fx0.75mm...
Page 18 The female flange to the sensor is 17.5mm. ATR585M comes with M42x0.75 mount and can connect to telescope with the M42x0.75 thread in a direct way. ATR585M can also connect to the telescope who use 1.25” or 2” eyepieces by M42M-1.25”...
Page 19 ATR585M(ATR3CMOS08300KMA) User Manual or M42M-2” adapter. Figure shows the connection of the camera and the adapter. After the adapter is screwed to the camera, the camera can insert into the telescope’s eyepiece tube. Table 8 list the details of the camera and adapter parameters.
Page 20 3.6 Camera Electric Connection with Accessories On the back side of ATR585M, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. Due to the significantly larger power cunsumption of IMX585, ATR585M (including the cooling system) is now booted up only by 12V/3A power supply.
Page 21 ATR585M(ATR3CMOS08300KMA) User Manual Figure 4 Camera Electric Connection Table 10 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable...
Page 22 4 ATR585M and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https://touptek-astro.com/downloads/, to download the latest ToupSky. The ATR can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software.
Page 23 ATR585M(ATR3CMOS08300KMA) User Manual Figure 5 ToupSky and Its Video Window Figure 6 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain...
Page 24 ATR585M(ATR3CMOS08300KMA) User Manual Color Balance Advanced single-click intelligent white balance setting, temperature and tint can be manually adjusted; Color Adjustment Hue, saturation, brightness, contrast, gamma initialization adjustment; Frame Rate Adjustment of frame rate available for different computer configurations; Flip Check the “horizontal” or “vertical” option to correct the sample direction;...
Page 25 Display:17” or larger CD-ROM 4.2 ATR585M and Dshow DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: ⚫ x86: XP SP3 or above; CPU supports SSE2 instruction set or above ⚫ x64: Win7 or above Supported Camera: ⚫...
Page 26 ATR585M(ATR3CMOS08300KMA) User Manual 4.3.9 AstroArt Famous full functional CCD Control/Image Process software. Popular used in Europe. 4.3.10 FireCapture Great free planetary capture software. Support part of AstroCam series telescope camera. 4.3.11 SharpCAP A nice free planetary capture software support WDM cameras includes AstroCam series telescope camera.
Page 27 ATR585M(ATR3CMOS08300KMA) User Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: astro@touptek.com.
