Summary of Contents for Qomo QShare 20

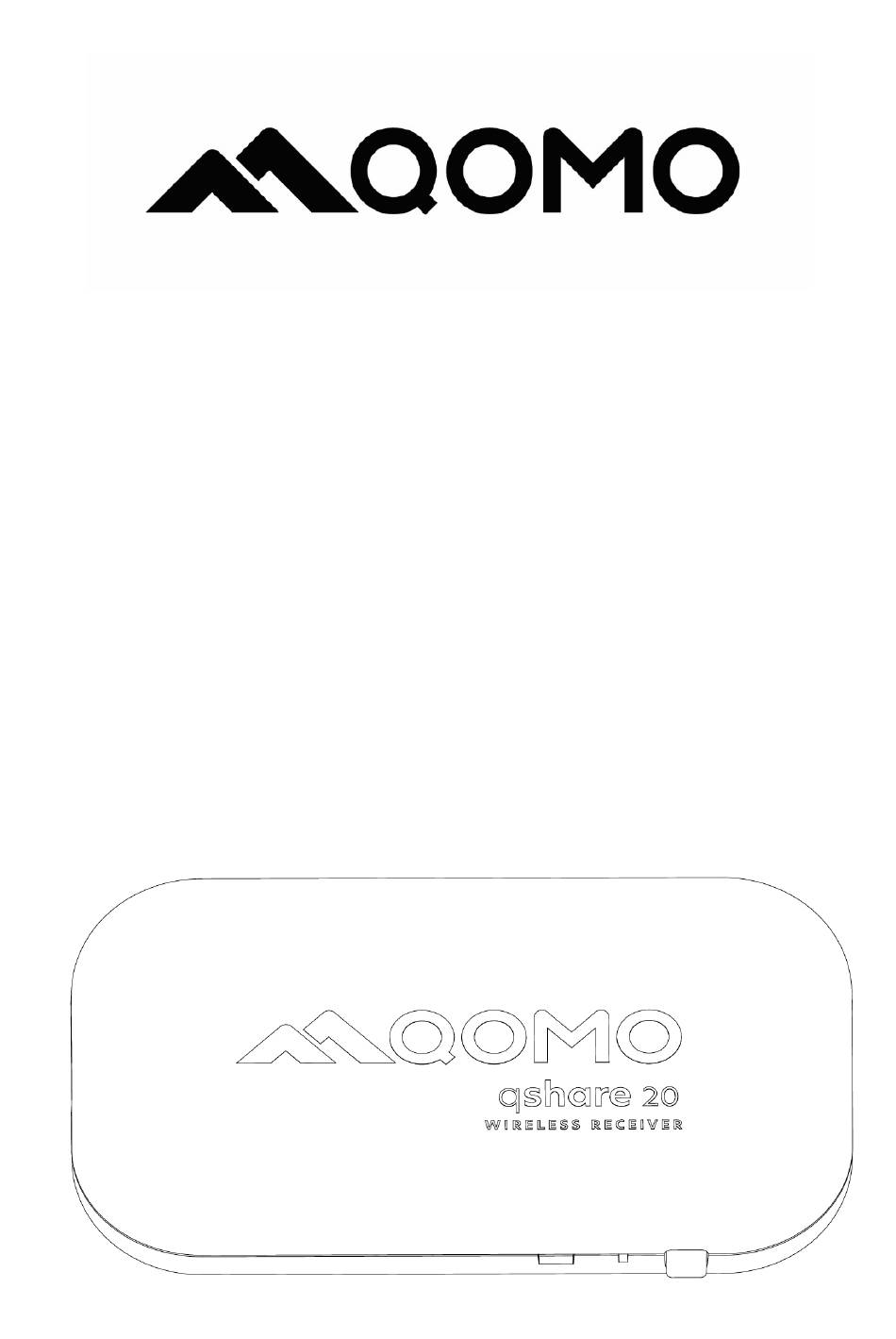

- Page 1 QShare 20 Wireless Receiver User Manual...

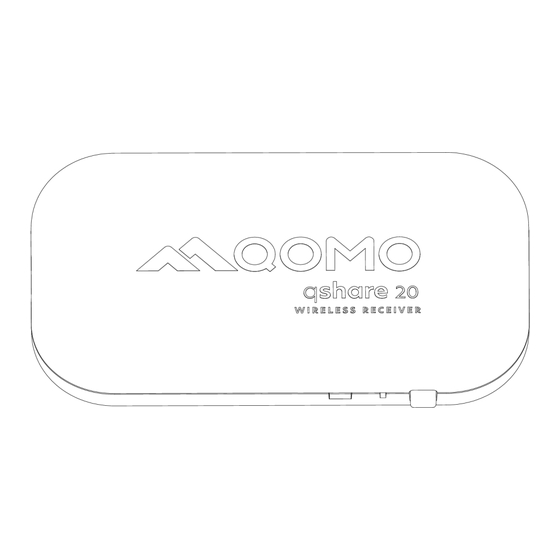

- Page 2 Product introduction QShare 20 is an innovative and powerful device designed to wirelessly receive video streams from your device and convert them into wired UVC video and HDMI video output. It supports QOMO's QD5000, QPC80H3, QPC100W, and any future products that support wireless video streaming.
- Page 3 3. Product Details...
- Page 4 •Short press: Switch HDMI output resolution. Instructions for use A. Pairing 1) Quick Pairing: a) Place QShare 20 next to the document camera to be paired. b) Ensure the document camera is in AP mode and uses the default SSID and password.
- Page 5 Download the QShare20 Wireless Receiver Setting Utility from qomo.com/qshare20. b) Open QShare20 Wireless Receiver Setting. c) Connect the QShare 20 to the PC via USB. d) Wait for the device to start up and the program interface will display the pairing settings of the current device.
- Page 6 Wait for QShare 20 to start, connect the document camera, and display the picture on the monitor. *Note: If the resolution output by QShare 20 is 4K and the display supports only 1080P, no picture will display. Short press the function button to switch to the appropriate resolution.*...
- Page 7 3. HDMI output no screen: a) The monitor may not support the current resolution, switch the HDMI output rate through the function buttons on QShare 20. b) The RTSP service output of the paired devices is limited, disconnect the connected devices and reconnect them, e.g., QD5000/QPC80H3 only supports single device...
- Page 8 Specification Model QShare 20 Frequency Band 2.4Ghz,5Ghz Transmission Technology Wireless Transmission Range Best results within 8 meters Image Quality 4K@30Hz/1080P@60Hz Delay As low as 260ms Working Temperature 0℃~60℃ Working Voltage Working Current 0.5A Interface Type Standard HDMI and Type-c Product Dimensions...
