M2M alula RE616X Quick Start Manual

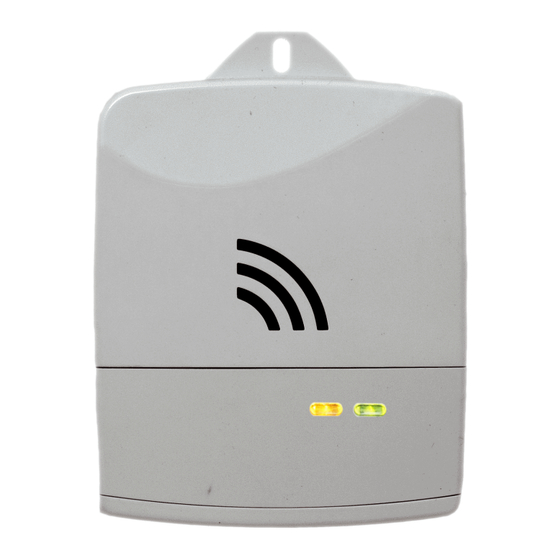

Description
The wireless siren produces security system sounds.
Features
Sounds are synchronized with the panel's on-board siren
85 dBA minimum at one meter
LEDs display status and blink in synchronization with sounds
Wall-powered with battery backup
Partition support
Sensor repeater functionality
Compatibility
The siren is compatible with all Alula security panels.
Sounds
Sounds produced include chime, alarm, entry-delay, exit-delay, protest, status & trouble. See the configuration sections below for
more details. If more than one partition requests sound, the siren will play the highest priority sound. For example, an alarm sound
has priority over exit-delay beeps.
Enrollment
To enroll a siren, put the panel in enrollment mode and then either power-up or tamper the siren. Enrollment typically completes in a
few seconds. If enrollment is unsuccessful, put the panel in enrollment mode, and then raise the siren's DIP-switch-1. Leave the
switch in the ON position until enrollment completes, then lower it. If enrollment is still unsuccessful, try again with the siren closer
to the panel.
Another enrollment approach is to manually type the siren ID into
Refer to the below tables
Upon enrollment the panel will beep, and the siren LEDs will then behave according to the
Test the siren in the desired location after enrollment and configuration.
LED Behavior when NOT Enrolled
Behavior
ORANGE and RED alternate blinks
BLUE and GREEN alternate blinks
ORANGE flickers
(included)
for LED behaviors.
Meaning
Siren is not in enroll mode
Siren is in enroll mode
Siren received a panel packet
RE616X
Wireless Siren
Connect+™ Encrypted
AlulaConnect.com
1
under the Peripherals tab.
LED Behavior when Enrolled
Note
This mode times out after ~5 minutes
table below.
