NCE UTP-DIN Quick Start Manual

Cab bus fascia panel

Advertisement

Quick Links

Cab Bus Fascia Panel
Model # UTP-DIN
FRONT
+
-
REAR
NCE Corporation
1260 Creek Street 105
Webster, NY 14580

Advertisement

loading
Need help?

Need help?

Do you have a question about the UTP-DIN and is the answer not in the manual?

Questions and answers

Summary of Contents for NCE UTP-DIN

  • Page 1 Cab Bus Fascia Panel Model # UTP-DIN FRONT REAR NCE Corporation 1260 Creek Street 105 Webster, NY 14580...

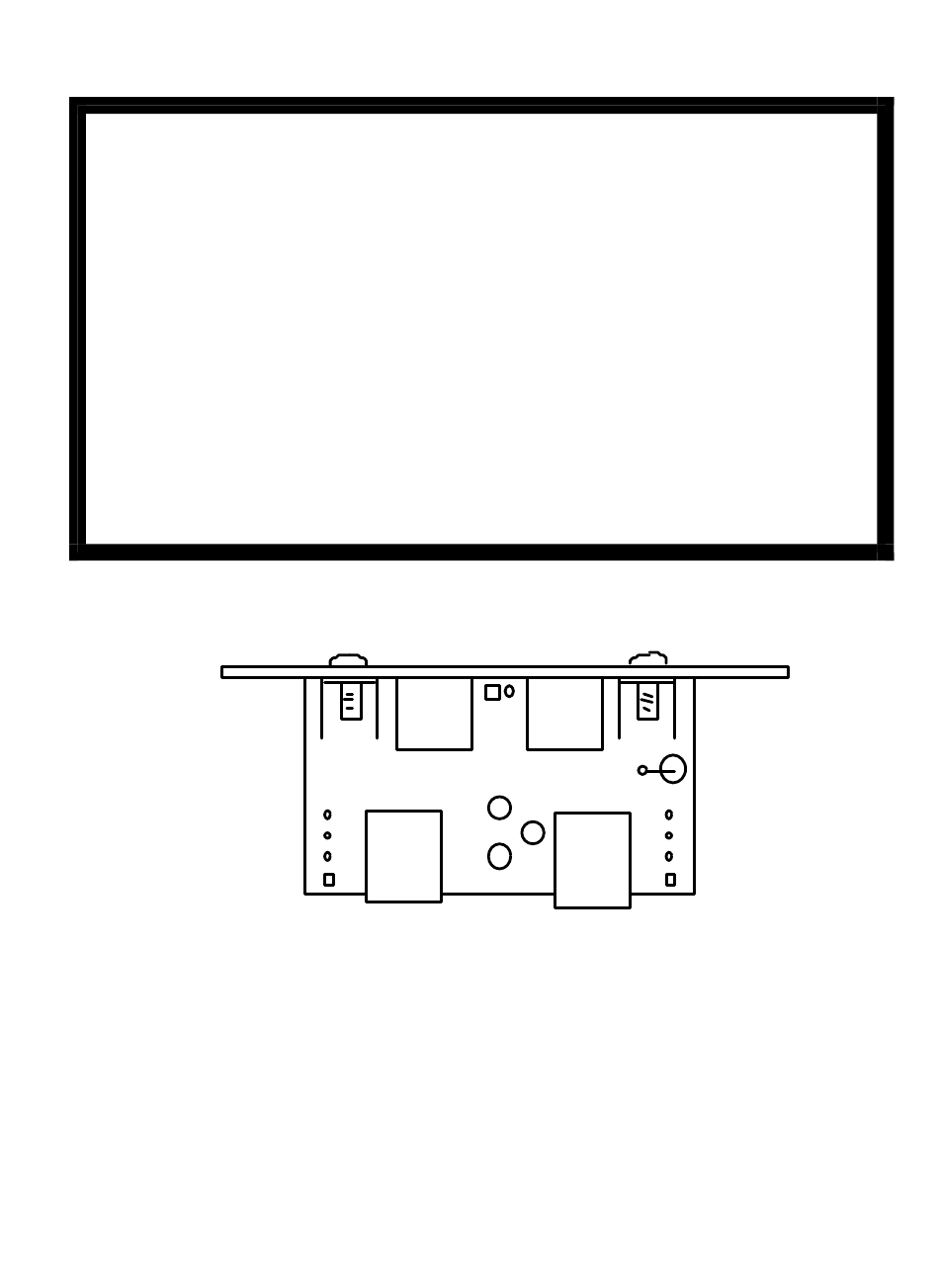

  • Page 2 The UTP-DIN cab bus panel provides a means of adding walk around capability to your layout using DIN plugs. Two screws are provided to attach the panel fascia plate to the printed circuit board as illustrated in figure 1. The panel has 2 RJ-12 connectors wired in parallel on the rear and two 5 pin DIN jacks on the front.
  • Page 3 connector (see figure 2). Please note that this is not the normal telephone cable wiring. Proper orientation of the RJ-12 connectors on cab bus cables Figure 2 Correct wiring of RJ-12 Cable The normal wire gauge for RJ-12 cables is #28 or #26. This wire size is sufficient for cab bus lengths of up to about 30 or 40 feet (10-13 meters).
  • Page 4 #22 or #24 AWG stranded wire with an outer shield is recommended for the best noise immunity. The square solder pad on the UTP-DIN panel is ground and pin #4 is +12 volts DC. The outer shield should be connected to pin 2 at each end of the cable.
