Summary of Contents for TREX smart TXM99

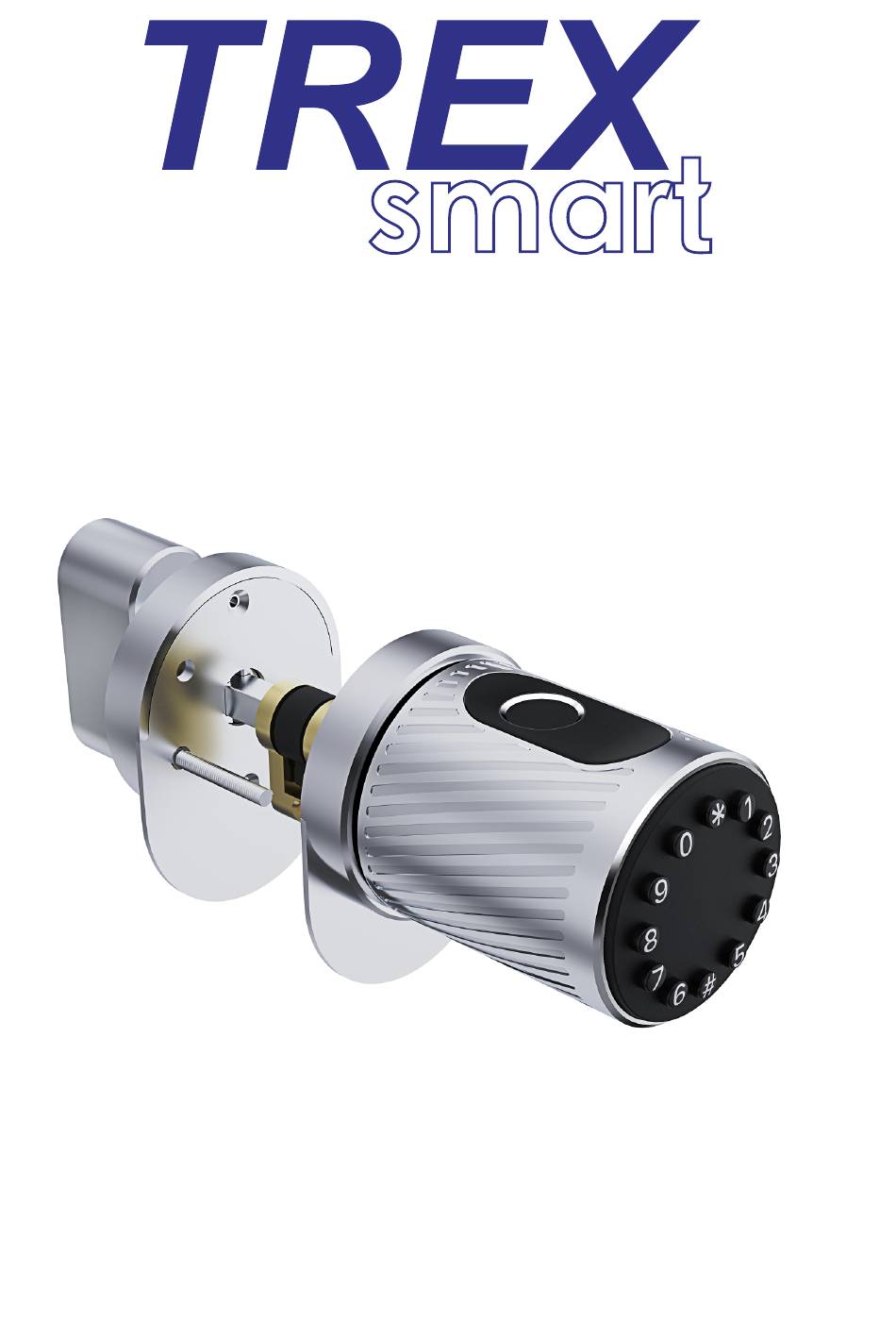

- Page 1 Smart Lock User Manual TXM99 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please remove the battery when low wattage alarm. 3. Read this manual carefully before installation, and keep it for future reference.
-
Page 2: Packing List
1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts. Name Name Mortise Screws:10*5 Front Panel (For Aluminum Door) Mortise Screws:25*4mm Back Panel (For Wooden Door) Sliding Screws:16*5mm Mortise:latch M4*30 Screw for Card Door Thickness 35-65mm Mechanical Key... -
Page 3: Specifications
1.3.Specifications Aluminum door Doors Suitable for TXM99 Wooden door Applicable Models Working Handle：Zinc Alloy Materials 6V/4x AAA Batteries Voltage Panel：SS304 Door Thickness 35-65mm Lock Weight to Fit Bluetooth Fingerprint Fingerprint：200 Password Unlocking Password：150 Data Capacity Card Card：200 Mechanical key Gateway(option) Silver Working -10℃-55℃... -
Page 4: Installation
2.Installation Step 1 Install Mortise and PIN Step 2 Install Front Pane Step 3 Install Back Panel Step 4 Installation completed Step 5 Install the battery 1.Insert the key and rotate counterclockwise to unlock 2. Remove the digital button panel 3.Install batteries 4.Replace the battery during use, and reverse the steps as shown in the figure... -
Page 5: Operation
3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account. -
Page 6: Setting Passcode
3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " " to unlock.(the phone must be within 5 meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. - Page 7 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.
-
Page 8: Add Gateway
3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. - Page 9 4.FAQ 1) How to read operation records? In the Records of the main interface. 2) Whether to download unlock records? Non-Bluetooth: can not download. You need to perform an unlock verification in 3) Why can’t I unlock it after open the any method, than the passage mode will take passage mode effect.
- Page 10 Guarantee Customer Name： Customer Contact： Purchase Date： Product Name： Product Model： Serial Number： Note: Please keep this card so that you can use it when you need warranty service. We provide you with a 2 years warranty from the date of purchase. This warranty service is valid for customers in Malaysia only.
