Vixen Air VXF7C3B Installation Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS

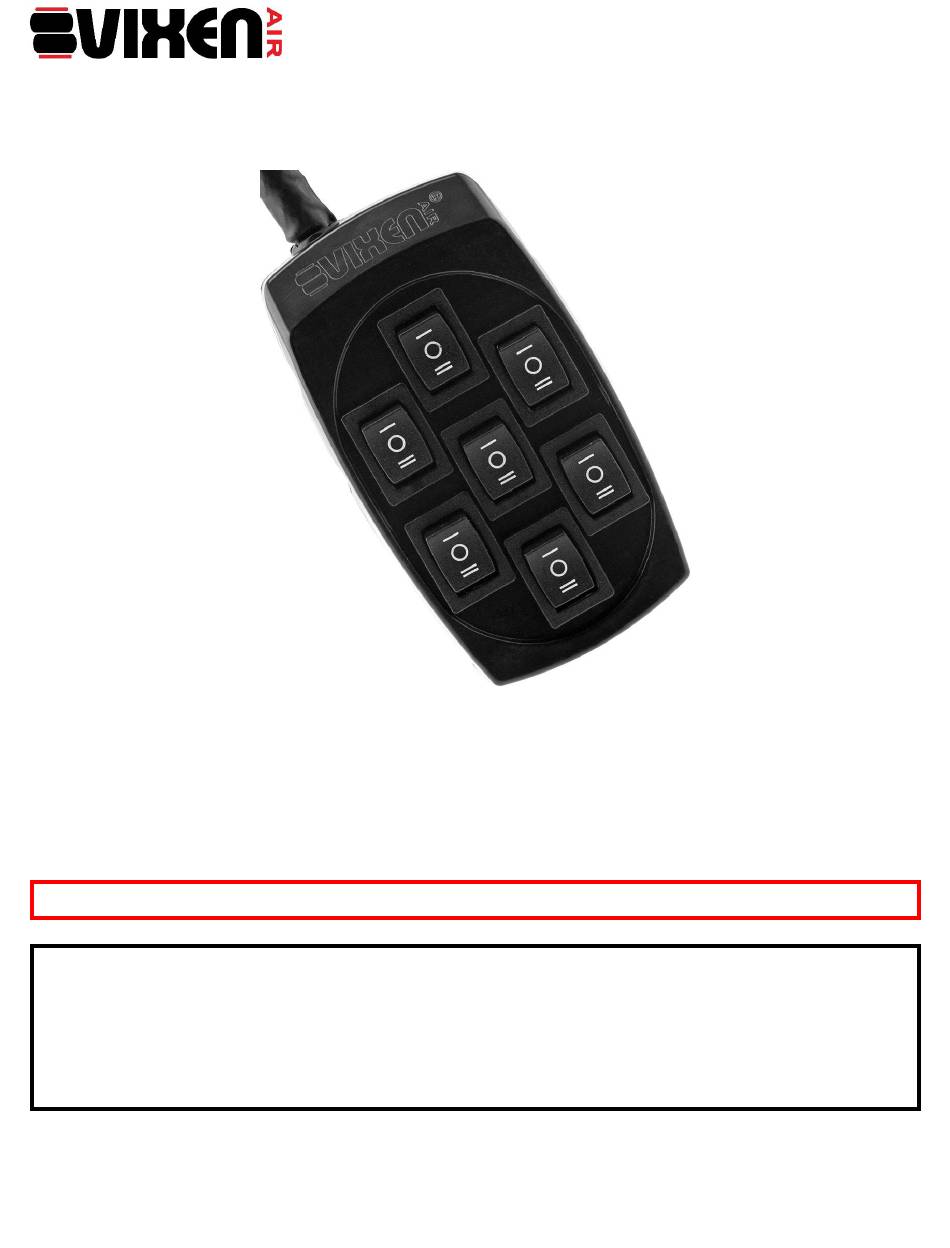

 7-switch Controller with 8 Feet Fused Harness (Black)
SAFETY INSTRUCTIONS
 Never install this air valve to an air tank that controls the air brakes or any other important part on your vehicle.
 Make sure your battery ground is detached before getting your installation started.
 Ensure that your air system has no pressure before starting the installation.
Direct replacement for the controller included with VXF4CM14B suspension manifold (four corners) air valve.
WIRING
 Connect the wire harness of the controller to the manifold, ensure that the two guides of the harness match
the position of the guides in the receptacle.
 Connect BLACK wire to GROUND, can be the chassis (unpainted surface) or route a wire directly to the
negative side of the vehicle's battery.
 Connect RED wire to the 12V power source, a 5A fuse is already installed on this cable,
 IMPORTANT: Do not remove or install a larger fuse as doing this may damage the unit.
PAGE 1 of 2
VXF7C3B
INSTALLATION GUIDE
