INSTRUCTION AND MAINTENANCE MANUAL
READ THIS MANUAL CAREFULLY BEFORE CARRYING OUT ANY OPERATIONS ON THE DRYER.
CONTENTS
PART A: INFORMATION FOR THE USER
1.0 GENERAL CHARACTERISTICS
2.0 INTENDED USE
3.0 OPERATION
4.0 GENERAL SAFETY STANDARDS
5.0 DESCRIPTION OF DANGER SIGNALS
6.0 DANGER ZONES
7.0 SAFETY DEVICES
8.0 POSITION OF PLATES
9.0 DRYERS ROOM
10.0 TRANSPORT AND HANDLING
ATTENTION: THERE IS A COPY OF THE WIRING DIAGRAM INSIDE THE ELECTRIC PANEL
ADDRESSES OF ASSISTANCE CENTRES
In the event of breakdown or malfunction of the dryer, switch it off and do not tamper with it. If repairs are needed, apply only to a technical
assistance centre approved by the manufacturer and insist on the use of original spare parts. Failure to comply with the above may
endanger the safety of the machine.
INTRODUCTION
Keep this manual with care for future consultation; the use and maintenance manual is an integral part on the dryer. Read this
manual carefully before carrying out any operations on the dryer.
The installation of the dryer and all operations involving it must be performed in conformity with the regulations in force
concerning electric plants and personal safety.
DRYERS
COOL15-100 (C0 - C6)
11.0 UNPACKING
12.0 INSTALLATION
13.0 DIMENSIONS AND TECHNICAL DATA
14.0 MACHINE ILLUSTRATION
15.0 PARTIAL ROUTINE MAINTENANCE
16.0 SCRAPPING THE DRYERS
17.0 TROUBLE-SHOOTING AND EMERGENCY REMEDIES
PART B: INFORMATION RESERVED FOR TECHNICALLY SKILLED
PERSONNEL
18.0 STARTING UP
9828093120
Cod. 9828093120 00 - Edition 05/2017 - 1
ENGLISH
Code
00
Edit. 05/2017
Advertisement
Summary of Contents for ABAC COOL15-100

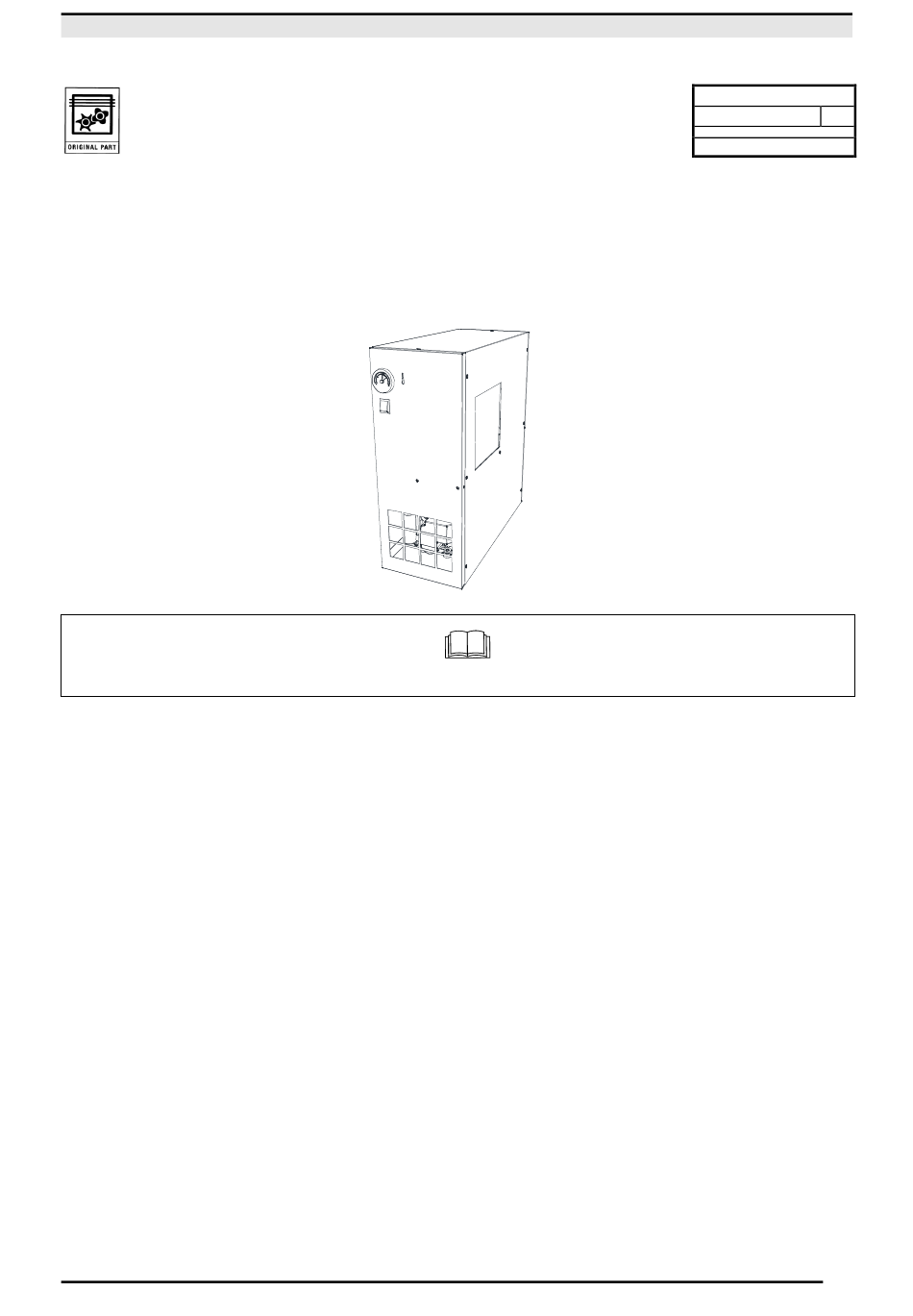

- Page 1 ENGLISH Code 9828093120 Edit. 05/2017 INSTRUCTION AND MAINTENANCE MANUAL DRYERS COOL15-100 (C0 - C6) READ THIS MANUAL CAREFULLY BEFORE CARRYING OUT ANY OPERATIONS ON THE DRYER. CONTENTS PART A: INFORMATION FOR THE USER 11.0 UNPACKING 1.0 GENERAL CHARACTERISTICS 12.0 INSTALLATION 2.0 INTENDED USE...
- Page 2 ENGLISH CHARACTERISTICS AND SAFETY PRECAUTIONS BEFORE REMOVING THE PROTECTIVE GUARDS TO CARRY OUT ANY MAINTENANCE ON THE MACHINE, SWITCH OFF THE ELECTRIC POWER SUPPLY AND DISCHARGE THE RESIDUAL PRESSURE INSIDE THE UNIT. ALL WORK ON THE ELECTRIC PLANT, HOWEVER SLIGHT, MUST BE CARRIED OUT BY PROFESSIONALLY SKILLED PERSONNEL. The manufacturer does not accept responsibility for damage caused as a result of negligence of failure to abide by the instructions given above.
- Page 3 ENGLISH 4.0 GENERAL SAFETY STANDARD The appliance may be used only by specially trained and authorized personnel. Any tampering with the machine or alterations not approved beforehand by the Manufacturer relieve the latter of responsibility for any damage resulting from the above actions. The removal of or tampering with the safety devices constitutes a violation of the European Standards on safety.
- Page 4 ENGLISH 8.0 POSITION OF PLATES 8.1 POSITION OF THE DANGER PLATES (Fig. 4) The plates fitted on the compressor unit are part of the machine; they have been applied for safety purposes and must not be removed or spoiled for any reason. Warning label Code 1079 9926 55 FIG.
- Page 5 ENGLISH ONLY PROFESSIONALLY SKILLED PERSONNEL MAY HAVE ACCESS TO THE ELECTRIC PANEL. SWITCH OFF THE POWER BEFORE OPENING THE DOOR OF THE ELECTRIC PANEL. COMPLIANCE WITH THE REGULATIONS IN FORCE CONCERNING ELECTRIC PLANTS IS FUNDAMENTAL FOR OPERATOR SAFETY AND FOR THE PROTECTION OF THE MACHINE. 12.3 CONNECTION TO THE COMPRESSED AIR NETWORK Fit a manual interception valve between the machine and the compressed air network so that the dryer may be isolated during maintenance operations.
- Page 6 ENGLISH 13.0 DIMENSIONS AND TECHNICAL DATA (B) AIR OUTLET CONDENSATE (A) AIR INLET DRAINING ELECTRICAL CABLE Refrigerant gas 100 (2) MODD. DIMENSIONS mm (in) COOLMOD 15-65 R-134a 1300 1/2” GAS (CE) 1/2” GAS (CE) (C0-C4) 1/2” NPT (cULus) 1/2” NPT (cULus) 15-100 According to ISO 817 233 (9,17)
- Page 7 ENGLISH 14.0 MACHINE ILLUSTRATION 14.1 GENERAL LAY-OUT FIG. 8 Refrigerant compressor Condenser Motor fan Evaporator Condensate drain Hot gas by-pass valve Refrigerant filter Expansion capillary tube 14.2 COMMAND AND CONTROL PANEL BEFORE CARRYING OUT THE OPERATION TEST, READ CAREFULLY AND ACQUIRE A GOOD KNOWLEDGE OF THE COMMAND FUNCTIONS.
- Page 8 ENGLISH 15.2 CLEANING OF THE AUTOMATIC CONDENSWATER DISCARGER FILTER (Fig. 10) Clean the filter of the steam trap. Proceed as follows: - Close the cock Ref. 1 Fig. 10 - Release the pressure in the dryer by pressing the condensate drain “TEST” pushbutton locate on the steam trap Ref.
- Page 9 ENGLISH 17.0 TROUBLE-SHOOTING AND EMERGENCY REMEDIES ALL WORK MUST BE CARRIED OUT BY PROFESSIONALLY SKILLED PERSONNEL. BEFORE CARRYING OUT ANY MAINTENANCE JOBS IT IS OBLIGATORY TO STOP THE MACHINE AND DISCONNECT IT FROM THE POWER MAINS. N.B. OPERATIONS MARKED MUST BE CARRIED OUT BY PROFESSIONALLY SKILLED PERSONNEL APPROVED THE MANUFACTURER FAULT FOUND POSSIBLE CAUSES...
- Page 10 ENGLISH PRESSURE DISCHARGE PROCEDURE (Fig. 10) Proceed as follows: - Close the taps Ref. 1 Fig. 10 - Release the pressure in the dryer by pressing the condensate drain “TEST” pushbutton locate on the steam trap Ref. 2 Fig. 10 - Switch off the machine by pressing the STOP button Ref.
