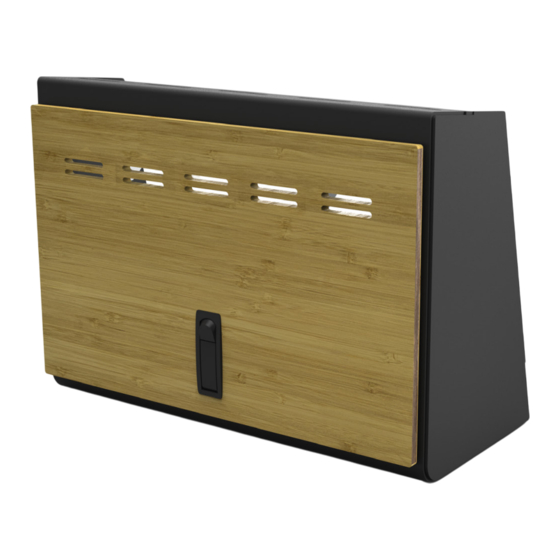

S PRI NTER VAN 2 0 " S HALLOW UPP ER CAB I N ET
SP5007 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
+
PHILLIPS SCREWDRIVER
+
RIVET NUT TOOL
+
POWER DRILL
+
IMAPCT DRIVER
+
MARKER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
(NOT INCLUDED)
0 1
Advertisement
Related Manuals for FVC SPRINTER VAN SP5007B
Summary of Contents for FVC SPRINTER VAN SP5007B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN 2 0 ” S HALLOW UPP ER CAB I N ET SP5007 B TOOLS REQUIRED (NOT INCLUDED) PHILLIPS SCREWDRIVER RIVET NUT TOOL POWER DRILL IMAPCT DRIVER MARKER INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps.
- Page 2 BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 PACKAGE CONTENTS CABINET DOOR CABINET SHELL QTY: 1 QTY: 1 LATCH BRACKET QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 4 HARDWARE 6-32 X 0.375 ROUND HEAD #6 X 0.4375 ROUND HEAD M5-0.8 X 16 ROUND HEAD PHILLIPS DRIVE SCREW PHILLIPS DRIVE SCREW PHILLIPS DRIVE SCREW CABINET LATCH QTY: 1 QTY: 4 QTY: 4 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: TAPE MEASURE 144” HIGH ROOF + LOW ROOF SPRINTER VAN STEP | 01 LAYOUT & INSTALL PREP Determining where you’d like to install your cabinet is up to you, however there are some tips that make choosing the location a little easier.
- Page 6 RIVET NUT METHOD TAPPING SCREWS METHOD TOOLS REQUIRED FOR THIS STEP: POWER DRILL POWER DRILL 3/16” DRILL BIT 3/16” DRILL BIT RIVET NUT TOOL IMPACT DRIVER 1/4” MANDREL 7/16” SOCKET STEP | 02 DIY INSTALL The upper and lower mounting surfaces of the Cabinet have multiple horizontal slots to accept hardware for wherever and however you’d like to install them.
- Page 7 TOOLS REQUIRED FOR THIS STEP: PHILLIPS SCREWDRIVER STEP | 03 DOOR ASSEMBLY 3.1 Install the Cabinet Latch to the Cabinet Door in the orientation as shown in FIG 7. Start with clearing the end of the latch that houses the adjustment screw through the front slot and it should seat neatly into place.
- Page 8 TOOLS REQUIRED FOR THIS STEP: PHILLIPS SCREWDRIVER STEP | 04 DOOR INSTALL 4.1 After mounting the Cabinet in the van and installing the Latch to the door, carefully pull on the Cabinet Hinges into the open position as shown in FIG 9. 4.2 Mount the Door to the Hinges with (2ea) 6-32 Machine Screws in the hinge slots as pictured in FIG 10.
- Page 9 TOOLS REQUIRED FOR THIS STEP: PHILLIPS SCREWDRIVER STEP | 05 ALIGNMENT 5.1 Close the door and verify alignment. Adjust as needed by loosening screws and re-positioning door(s). Repeat as necessary. 5.2 Once alignment is achieved, add (2ea) #6 Wood Screws into the setting hinge slots as pictured in FIG 11.
- Page 10 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
