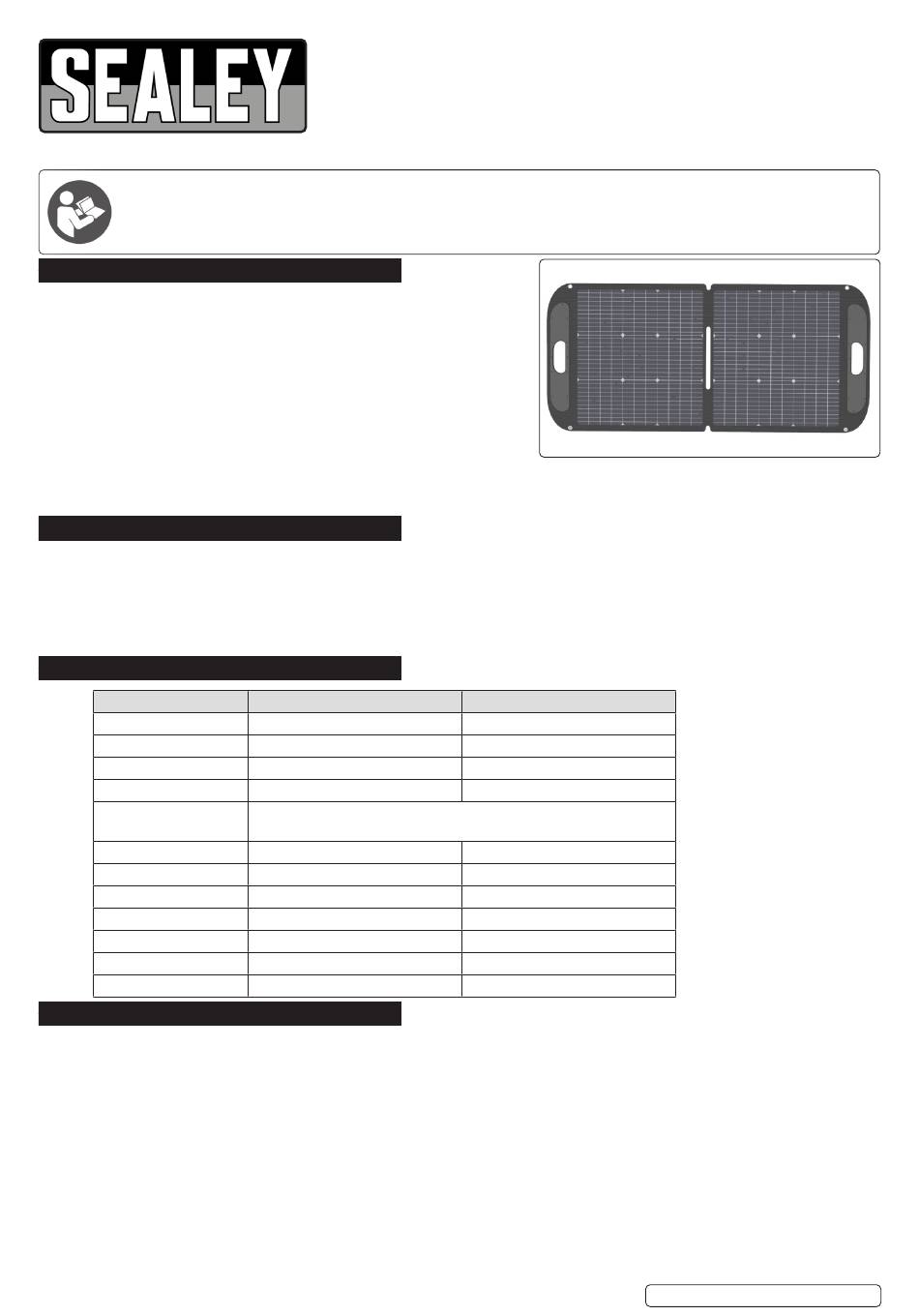

Sealey SPP110 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
DO NOT flex or bend the folding solar panels.
8
DO NOT place folding solar panels in shaded areas.
8
DO NOT soak the solar panels in water.
8
Clean with a damp cloth only.
9
DO NOT use or store near open flames or flammable materials.
8
DO NOT scratch the surface of the solar panels with sharp objects.
8
DO NOT use corrosive substances to clean the solar panels.
8
DO NOT step on, or place heavy objects on the solar panels.
8
DO NOT disassemble the product.
8
The output circuit must be correctly connected to the equipment.
9
DO NOT short-circuit the positive and negative terminals.
8
Ensure there is no gap between the connector and the insulated connector in order to avoid electric shock.
8
Check all connections, including cables, wires and plugs.
9
2. INTRODUCTION
Monocrystalline silicon solar cells are highly efficient, with a conversion rate of up to 23.5%. This provides better performance than
traditional solar panels. Supplied with 4 outputs: MC-4, Anderson, XT60 and DC5521 8-piece set of Connectors, these can be used to
connect to a multitude of devices and power stations, including the Sealey SPB2200W Portable Power Station. ETFE laminated solar
panels are IP65 rated, making them suitable for use outdoors. Features handles for easy transportation and eyelets for hanging or
suspending off the ground while in use. Built-in kickstands to optimise the angle and absorb as much sunlight as possible. Foldable,
allowing for compact storage.
3. SPECIFICATION
MODEL NO.
Folded (W x D x H):
IP Rating:
Nett Weight:
Wattage:
Output:
Peak Power:
Working Voltage:
Working Current:
Open Voltage:
Short Circuit Current:
Supply:
Unfolded (W x D x H):
4. MAINTENANCE
4.1. CLEANING
4.1.1. Wipe clean with a soft damp cloth. DO NOT use corrosive substances.
4.2. STORAGE
4.2.1. Store in a clean, dry environment away from children.
NOTE: This product is NOT designed to be disassembled and should be replaced if damaged.
© Jack Sealey Limited
ETFE FOLDABLE SOLAR PANELS
MODEL NO:
SPP110
650mm x 600mm x 35mm
IP65
5.56Kg
110W
MC4, Anderson, XT60, DC5521 Adaptor Set Including Sizes: DC6014,
DC5525, DC5521, DC5517, DC5010, DC4817, DC7406 and DC7909.
110W
19V DC
5.79A
22.8V
6.07A
DC - Direct Current
1310 x 600 x 20mm
Original Language Version
SPP110, SPP220
SPP220
655mm x 600mm x 50mm
IP65
8.72Kg
220W
220W
19V DC
11.57A
22.8V
12.15A
DC - Direct Current
2430 x 600 x 20mm
SPP110 SPP220 Issue 2 03/04/24
