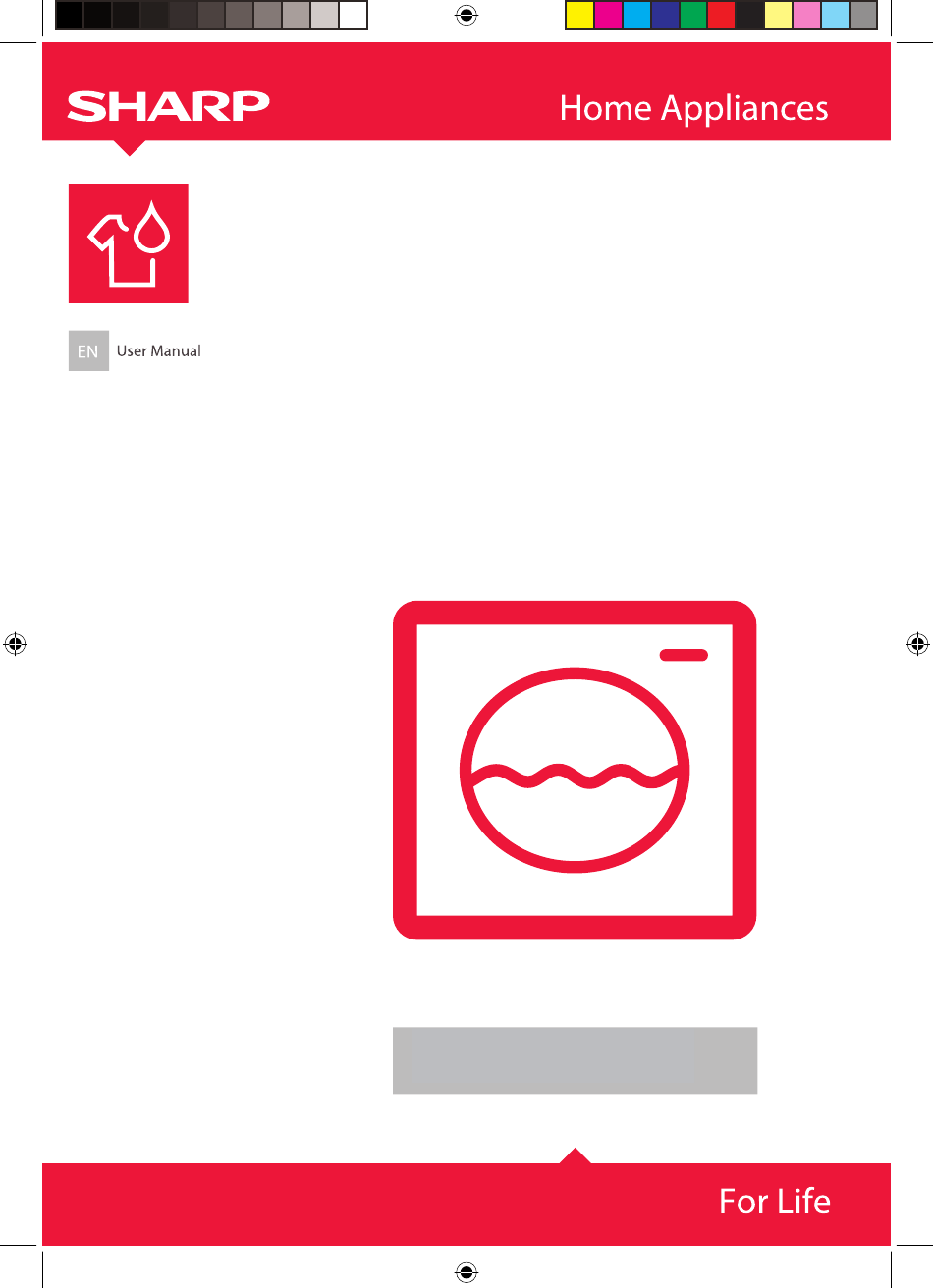

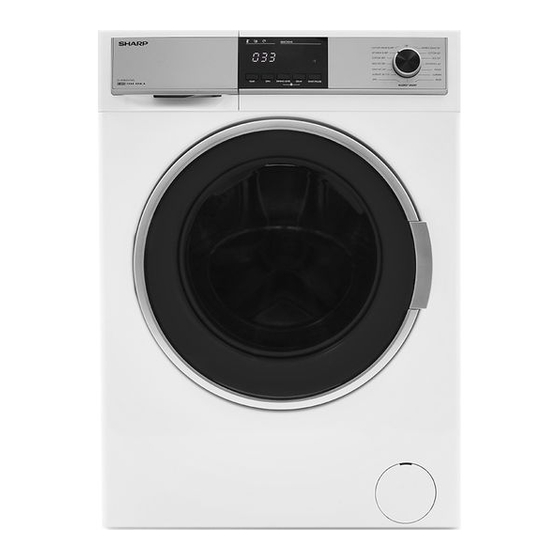

- Page 1 Washer/Dryer Washer/Dryer ES-HDB8147W0-EN ES-HDB8144W0-EN ES-HDB8647W0 EN 52241755_D4_EN_new_reg.indd 1 24.05.2018 09:07:06...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
- Page 3 CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................2 1.2. During Use ........................7 1.3. Packaging and Environment..................8 1.4. Savings Information .......................8 2. TECHNICAL SPECIFICATIONS ..................10 3. OVERVIEW OF YOUR MACHINE ...................11 3.1. General Appearance....................11 4. SETTING UP YOUR MACHINE ..................11 4.1.
- Page 4 1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0.1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) Maximum drying capacity (kg) 6.0 • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
- Page 5 NOTE: For softcopy of this user manual, please contact following address: “washingmachine@ standardtest.info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. To ensure your safety and the safety of others, please read the following safety precautions before using or installing your Washer Dryer.
- Page 6 softener or detergent in the drawer at the beginning of each wash. • Unplug your Washer Dryer and switch off the water supply if the Washer Dryer is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washer Dryer.
- Page 7 have to do so, quickly remove all of your laundry and immediately spread the items on an appropriate surface to allow them to cool. • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
- Page 8 • Never remove the plug from the socket by pulling the cord. Always hold the plug. • Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. • Do not touch your Washer Dryer if your hands or feet are wet.
- Page 9 rubber or rubber-like parts and accessories. • Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the drying process of the appliance.
- Page 10 • The door glass and machine surface can become extremely hot during operation. Do not allow children to touch the machine; it may damage their skin. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washer Dryer.
- Page 11 appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. • Installation of your machine must only be carried out by an authorised service agent. Installation by anyone other than an authorised agent will void your warranty.
- Page 12 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
- Page 13 2. TECHNICAL SPECIFICATIONS Maximum washing capacity (dry laundry) (kg) * Maximum drying capacity (kg) Spin speed (rpm) 1400 Number of programmes Operation voltage / Frequency (v/hz) 220-240 / 50 Maximum: 1 Water pressure (mpa) Minimum: 0.1 Dimensions (HxWxD) (mm) 845x597x582 * You should not put dry laundry in your machine for drying.
- Page 14 3. OVERVIEW OF 6. Pump Filter Cover YOUR MACHINE 7. Power Cord 8. Drain Hose 3.1. General Appearance 9. Transport Screws 10. Adjustable Feet 11. Plastic Drain Hose Holder: (Do not remove the holder; the operation of the machine will be affected). 4.
- Page 15 4. Insert the plastic blanking caps from the machine. accessories bag into the gaps left by the • Once the machine is level, tighten the transit screws. plastic adjustment nut. 4.2. Placing the Machine and Adjusting the Feet • Never insert cardboard, wood or other similar materials under the machine to 1.
- Page 16 to be restricted. • Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at 4.4. Water Inlet Connection optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).
- Page 17 5. CONTROL PANEL OVERVIEW 5.1. Detergent Drawer General View 1. Detergent drawer 2. Additional Function Buttons: Use these buttons to select additional functions for the laundry programme. See Additional Functions for more information. 3. Programme Dial: Use the programme dial to select the washing / drying programme for your laundry.
- Page 18 5.2. Sections 5.3. Programme Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid • To select the desired programme, turn detergent level plate is supplied inside your the programme dial either clockwise or machine.
- Page 19 pockets; if so, remove them. 6.3. Placing Laundry Into the Machine WARNING: Any malfunction occurring due to foreign materials damaging your machine are not covered by the warranty. • Open the loading door of your machine. • Close zips and fasten any hooks and •...
- Page 20 7. Additional Functions Follow the instructions on the detergent packaging when determining the amount of detergent to use for your laundry. • The higher the degree of hardness of the water, the more detergent you will need. • The amount of the detergent you will use will increase as the amount of your laundry increases.
- Page 21 7.1. Half-Load Detection System maximum spin speed for that programme is automatically selected. Your machine features a half-load detection system. To adjust the spin speed, press the spin speed adjustment button until the desired If you put less than half the maximum spin speed is displayed on the digital load of laundry into your machine it will display.
- Page 22 option, press the drying option button until the “ ” symbol is displayed. NOTE: If one of the above drying option symbols is not displayed when you press the Dry Option button, that drying option is not available for the selected programme.
- Page 23 4. Drying option selection: SELECTABLE/ DRYING FACTORY PROGRAMME SELECTABLE OPTIONS PROFILE PRESET SELECTABLE Cotton Cotton dry Option 1 Option 2 Option 3 Cotton eco Cotton dry Option 1 Option 2 Option 3 Eco 20°C Cotton dry Option 1 Option 2 Synthetics Gentle dry Option 1...
- Page 24 5. Delayed Start 7. Child Lock Delay Timer The Child Lock function allows you to lock • Press the Delay button once. the buttons so that the wash cycle you have chosen cannot be changed unintentionally. • “1 h” will appear on the display. To activate child lock, press and hold •...
- Page 25 7.3. Finishing Programme Your machine will stop by itself as soon as the programme you have selected finishes. • “END” will flash on the electronic display. • You can open the machine’s door and remove the laundry. • Leave the door of your machine open to allow the inner part of your machine to dry.
- Page 26 8. PROGRAMME TABLE Programme Laundry type / Descriptions Heat resistant, cotton and linen textiles. COTTON 90° C 90° 8.0 / 6.0 (Underwear, bed sheets, tablecloths (towels, max. 4.0 kg) Heat resistant, cotton and linen textiles COTTON ECO 60°e 8.0 / 6.0 (Underwear, bed sheets, tablecloths (towels, max.
- Page 27 9. MAINTENANCE 9.2. Water Inlet Filters AND CLEANING OF YOUR MACHINE 9.1. Warning Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open.
- Page 28 accumulated residue. filter every 2 months. To remove the detergent drawer: The pump filter is located behind the cover on the front-lower right corner. • Pull the drawer forwards until it is fully extended. To clean the pump filter: 1. You may use the washing powder spade •...
- Page 29 10. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2.
- Page 30 11. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •...
- Page 31 FAULT POSSIBLE CAUSE TROUBLESHOOTING There is detergent residue Non-dissolving particles of some Perform an extra rinse, or clean your laundry with on your laundry after detergents may appear on your a brush after it dries washing laundry as white spots. There is detergent residue There is untreated oil, cream or Use the amount of detergent as instructed on the...
- Page 32 13. DESCRIBING THE ENERGY your daily laundry in short programmes. Make sure you clean your machine and LABEL AND SAVING ENERGY perform maintenance periodically and use your machine at lower-cost times as specified by your electricity vendor. 1. Brand 2. Model 3.
