THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER'S MANUAL

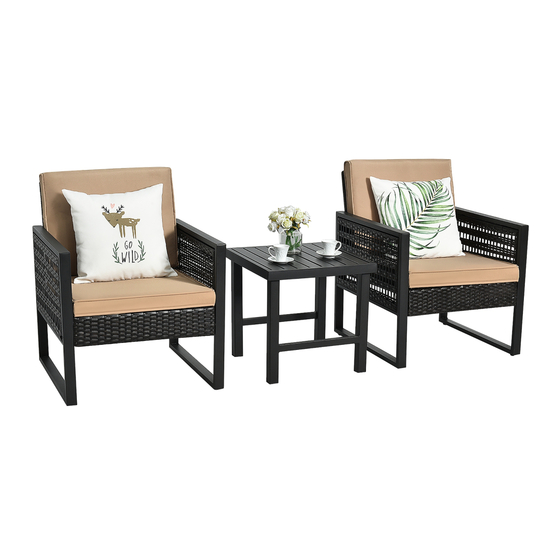

3 Pcs Wicker Set
HW64402
FLOOR AREA
2MX2M
ASSEMBLED BY 2 ADULTS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Costway PATIOJOY HW64402
Summary of Contents for Costway PATIOJOY HW64402
- Page 1 USER’S MANUAL 3 Pcs Wicker Set HW64402 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Please give us a chance to make it right and do better！ FLOOR AREA 2MX2M Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP! ASSEMBLED BY 2 ADULTS...
- Page 2 Contact Us! Do NOT return this item. Contact our friendly customer service department for help first. E-mail US: cs.us@costway.com UK: cs.uk@costway.com Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur.
- Page 3 Not actual size Left Arm x 2 Right Arm x 2 Back x 2 Seat x 2 Back Cushion x 2 Seat Cushion x 2...
- Page 4 Not actual size...
- Page 5 Hardware List Actual size M6 x 15mm M6 x 25mm BOLT BOLT M6 x 35mm BOLT WASHER 4 x 4 ADJUSTABLE ALLEN WRENCH LEVELLERS...
- Page 6 STEP 1 Insert adjustable levellers (M) to bottom of each Arm(A) by turning clockwise until secure. Adjust height as desired. Repeat step for the other side arm(B).
- Page 7 STEP 2 Attach the seat(D) to the arm (B) by inserting bolts (H & I) with washers (K) through the pre-drilled holes on the seat into the pre-welded nuts on the arm. Repeat step for the other side arm(A). assembly is completed.
- Page 8 STEP 3 Attached the back(C) to the seat (D) by inserting bolts(I) with washers (K). STEP 4 Attached the back(C) to the arm (A&B) by inserting bolts (G) with washers (K).
- Page 9 STEP 5 Tighten all the bolts with the allen wrench, and turn the chair to the upright position. place the cushions(O&N) onto the chair seat. Your chair is now ready for use.
- Page 10 Maximum Loads 250 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
- Page 11 Not actual size Table Top x 1 Table Leg x 2...
- Page 12 Not actual size...
- Page 13 Hardware List Actual size M6 x 15mm M6 x 55mm BOLT BOLT 4 x 4 ALLEN WRENCH WASHER...
- Page 14 STEP 1 Attached the Table Leg(F) to the Table Top (E) by inserting bolts (J&G) with washers (K).
- Page 15 STEP 2 Tighten all the bolts with the allen wrench, and turn the table to the upright position. Your coffee table is now ready for use.
- Page 16 Maximum Loads 25 lbs This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
- Page 17 Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish.
