olympia electronics GR-43 Manual

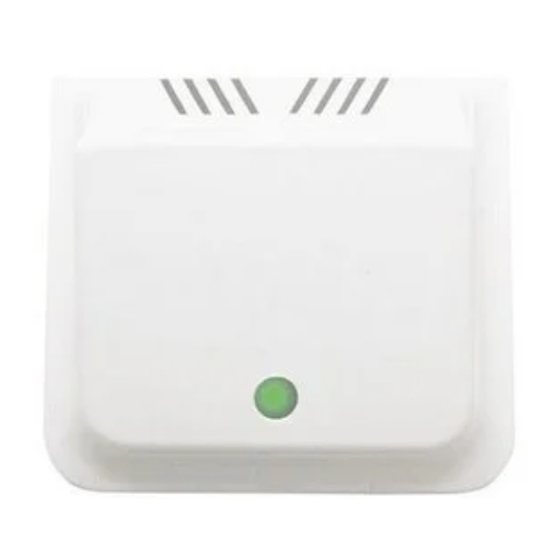

MAGNETIC CARD SWITCH FOR ACTIVATING
GR-43
GR-45/A, GR-56/A & GR-57/A DEVICES
Thank you for your trust in our products
Olympia Electronics - European manufacturer
GENERAL
It is mostly used in hotels and rented room. It 's main purpose is to control the mains
power supply that is used to operate the room lighting and the air-conditioner in a room.
This device co-operates with the GR-45/A, GR-56/A or GR-57/A. The connection between
these 2 devices requires 3 wires and is shown in the figure below.It has a built-in indication
LED which is used to locate the device in the dark. The device operates only with GR-
44 magnetic cards.
Max. cross section 1,5mm²
Max. cross section 6mm²
If it's required, connect
the card switch GR-43
8 9 10 11 12 13 14
according to the bellow
diagram, or any other
card switch with open
contact to the points 2
and 3.
GR-43
Magnetic
Switch
1 2 3

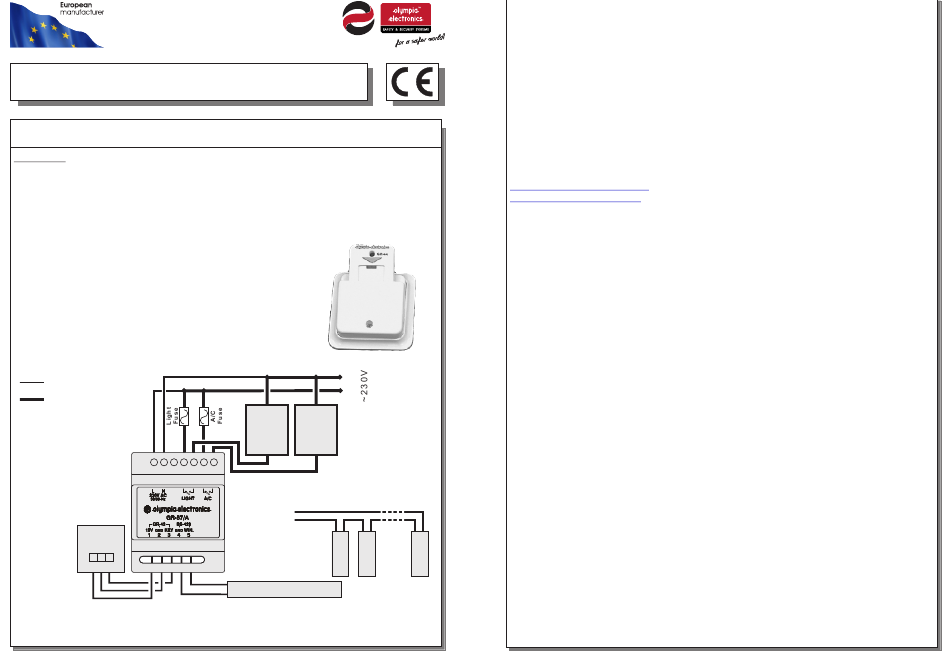

Connection diagram between a GR-43 and a GR-45/A, GR-56/A or GR-57/A.
Page 1 from 2
N
L
Room
Air
lighting
Conditioner
circuit
If it's required to connect more than 1
magnetic trap, they must be connected as
follows.
BS-429
Window or Porch
magnetic trap
930043000_23_008
930043000_09_012
