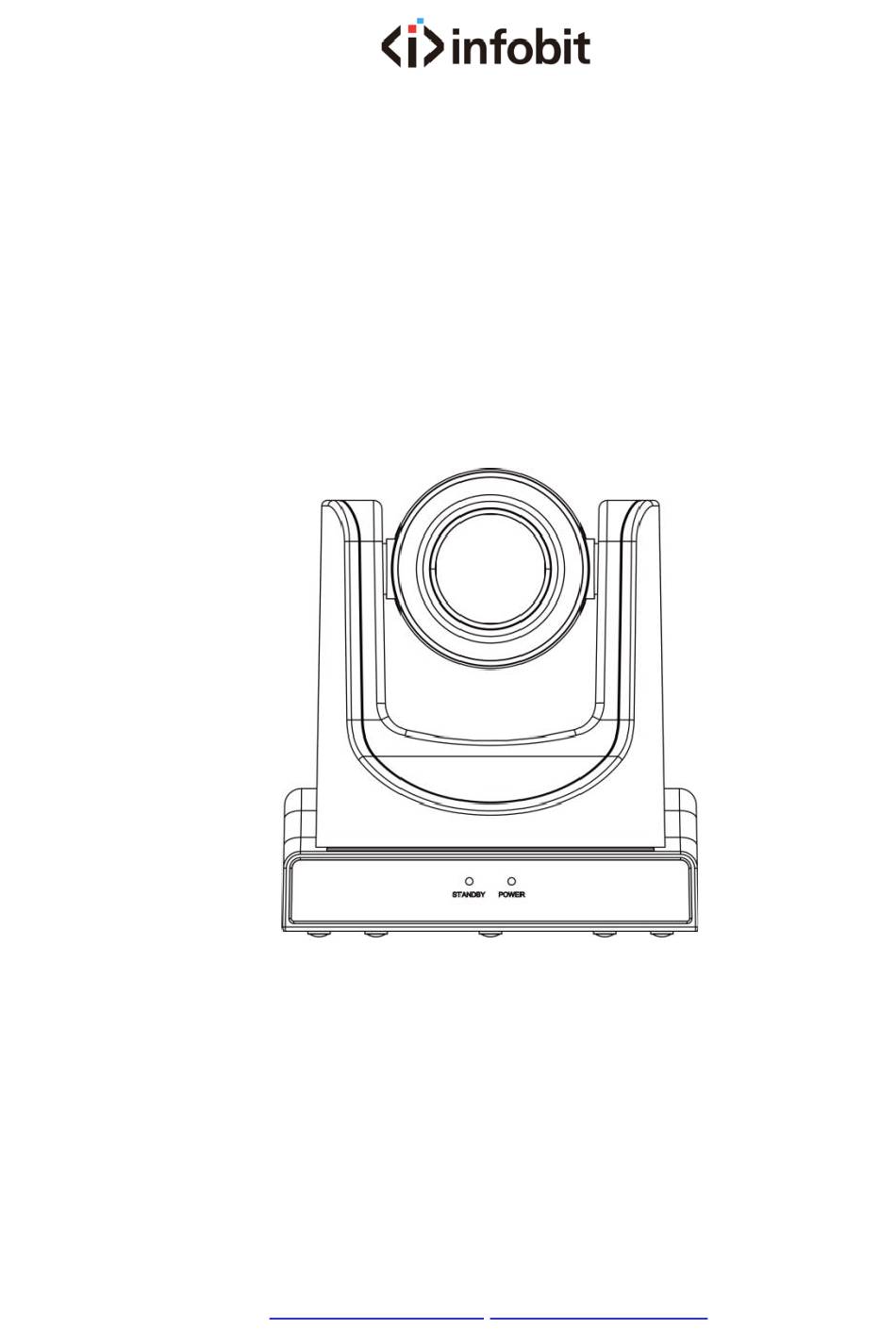

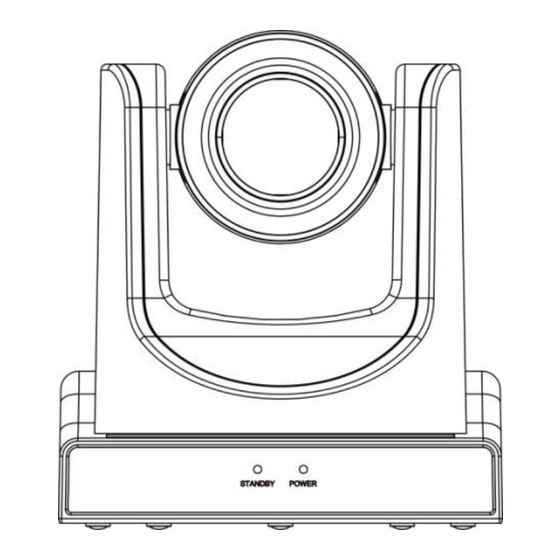

- Page 1 P13/ P13N 1080P PTZ Conference Camera 30x Optical and 8x Digital Zoom User Manual www.infobitav.com info@infobitav.com...
- Page 2 P13/ P13N Video Conference Camera User Manual...
- Page 3 P13/ P13N Video Conference Camera User Manual Catalogue 1 Note..........................1 2 Packing List ........................1 3 Quick Start ........................1 4 About Product ......................3 4.1 Features ............................3 4.2 Product Specification ........................3 4.3 Interfaces and Buttons ........................4 4.4 Dimension ............................5 4.5 Remote Control ..........................
- Page 4 P13/ P13N Video Conference Camera User Manual 6.5.1 Setup IPC controlled by dynamic DNS ................13 6.5.2 Dynamic DNS visit camera ....................14 6.5.3 VLC stream media player monitoring................... 14 6.6 IP Camera Parameter Setup ......................14 6.6.1 Homepage Introduction ....................... 14 6.6.2 Video Settings ........................
- Page 5 P13/ P13N Video Conference Camera User Manual environment to avoid any cover (plastic Note material) damage. Make sure there is no obstacle within rotation range. ⚫ Electric Safety Please never power on before installation is Installation and operation must accord with completed.
- Page 6 P13/ P13N Video Conference Camera User Manual...
- Page 7 P13/ P13N Video Conference Camera User Manual ⚫ Low Light 2) Connect the power adapter to the power The application of 2D and 3D noise reduction connector on the rear panel of the algorithm greatly reduces image noise. Even camera.
- Page 8 P13/ P13N Video Conference Camera User Manual Vertical Rotation 1 x RS-485: 2pin phoenix -30° ~ +90° Range port, Max Distance: 1200m, Protocol: VISCA / Pan Speed 1.7° ~ 100°/s Pelco-D / Pelco-P Range 1 x RS232 IN: 8pin Min Tilt Speed 1.7°...
- Page 9 P13/ P13N Video Conference Camera User Manual Item Name 4.5 Remote Control LINE IN Interface CVBS Interface System Select Switch RS485 Interface RS232 IN Interface RS232 OUT Interface Network Interface HDMI Interface 3G-SDI Interface USB 2.0 Interface DC 12V Interface Power Switch 4.4 Dimension...
- Page 10 P13/ P13N Video Conference Camera User Manual position. 15. Menu Key 5. HOME Key MENU: enter or exit OSD MENU. Confirm menu, enter the submenu or the PTZ 16. Backlight Key will back to the middle position after pressed BLC ON/OFF: Press this button to enable the backlight compensation.
- Page 11 P13/ P13N Video Conference Camera User Manual Function 4.8 Serial Communication Control ⚫ RS232 Communication Control The camera is controlled via RS232. The RS232 serial port parameters are as follows: Baud rate: 2400/4800/9600/38400 bit/s; IR OUT Starting Position: 1 bit...
- Page 12 P13/ P13N Video Conference Camera User Manual For a detailed list of VISCA/Pelco-D/Pelco-P protocols, contact the manufacturer.
- Page 13 P13/ P13N Video Conference Camera User Manual ExpComp: Exposure the compensation value, GUI Settings optional items: -7~7 (Effective only ExpCompMode item to On). 5.1 MENU Backlight: Set the backlight compensation, Press [MENU] button to display the main menu optional items: On, Off (Effective only in Auto on the normal screen, using arrow button to mode).
- Page 14 P13/ P13N Video Conference Camera User Manual WB-Mode: White balance mode, optional items: Flip-H: Image flipped horizontally, optional Auto, Indoor, Outdoor, One Push, Manual, VAR. items: On, Off. RG Tuning: Red gain fine-tuning, optional items: Flip-V: Image Flip Vertical, optional items: On, -10 ~ +10 (Effective only in Auto, One Push, Off.
- Page 15 P13/ P13N Video Conference Camera User Manual COMMUNICATION SETUP 5.6 NOISE REDUCTION Protocol VISCA Move the main menu cursor to [NOISE V_Address REDUCTION], and press [HOME] key enter the V_AddrFix Net Mode Serial noise reduction page, as shown in the following...
- Page 16 P13/ P13N Video Conference Camera User Manual If you don't know the camera IP, view as below: Network Function Method 1: Press * and # and 4 on remote controller one by one, the camera IP address 6.1 Operating Environment will be shown on screen.
- Page 17 P13/ P13N Video Conference Camera User Manual Method 2: Open “upgrade_En.exe”, change IP and click “Set”. After modified, IP Camera will be restart. If user first time use this camera by internet (only for new user), must install a player software (VLC).
- Page 18 P13/ P13N Video Conference Camera User Manual 6.5.2 Dynamic DNS visit camera Set domain name to camera, setup the parameter, then dynamic DNS can access RTSP port number default 554. camera. Access link: http://hostname: port number. For example, setup host computer name: youdomain.f3322.org, the camera port...
- Page 19 P13/ P13N Video Conference Camera User Manual Method 2: Type the name into the Presets B. PTZ Setup Information. Click “Set” button, when PTZ turn to other position, click “Call” button or click “No.” of the Presets Information, PTZ will turn back to preset position.
- Page 20 P13/ P13N Video Conference Camera User Manual 6.6.2 Video Settings 4) Resolution First stream support 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360. Second stream support 1280x720, 1024x576, 720x576 (50Hz support), 720x480 (60Hz support), 720x408, 640x360, 480x270, 320x240, 320x180; The bigger resolution is, the clearer the image will be, more network bandwidth will be taken.
- Page 21 P13/ P13N Video Conference Camera User Manual 10) Slice Split Enable 5) Hue Enable or disable slice split function. Hue 0~14, slider control, on the right shows the corresponding numerical. 11) Split Mode Default value is 7. Select split mode, optional items: Fixed blocks, 6) Flip &...
- Page 22 P13/ P13N Video Conference Camera User Manual 6.6.5 System Settings 1) Lan Settings Default the IP address is 192.168.100.88, the MAC address can not be modified. 2) Port Settings A. HTTP Port IP address identifies the network device, the...
- Page 23 P13/ P13N Video Conference Camera User Manual Fixed IP Address, Dynamic IP Address. 8) SDK Settings 7) IP Address Turn On/Off active connection. Setting SDK address (default value is 192.168.100.138) and Display the IP Address, you can also input the port (default value is 1234).
- Page 24 P13/ P13N Video Conference Camera User Manual or object near the camera. the outlet. ⚫ Use soft cloth or tissue to clean the camera cover. ⚫ Please use the soft dry cloth to clean the lens. If the camera is very dirty, clean it with diluted neuter detergent.
- Page 25 P13/ P13N Video Conference Camera User Manual ⚫ There is no video image in IE Browser Please visit VLC website (http://www.videolan.org/vlc) download install VLC media player, after it installed, visit IP Camera will have normal image display. ⚫ Unable to Access IP Camera through IE...
