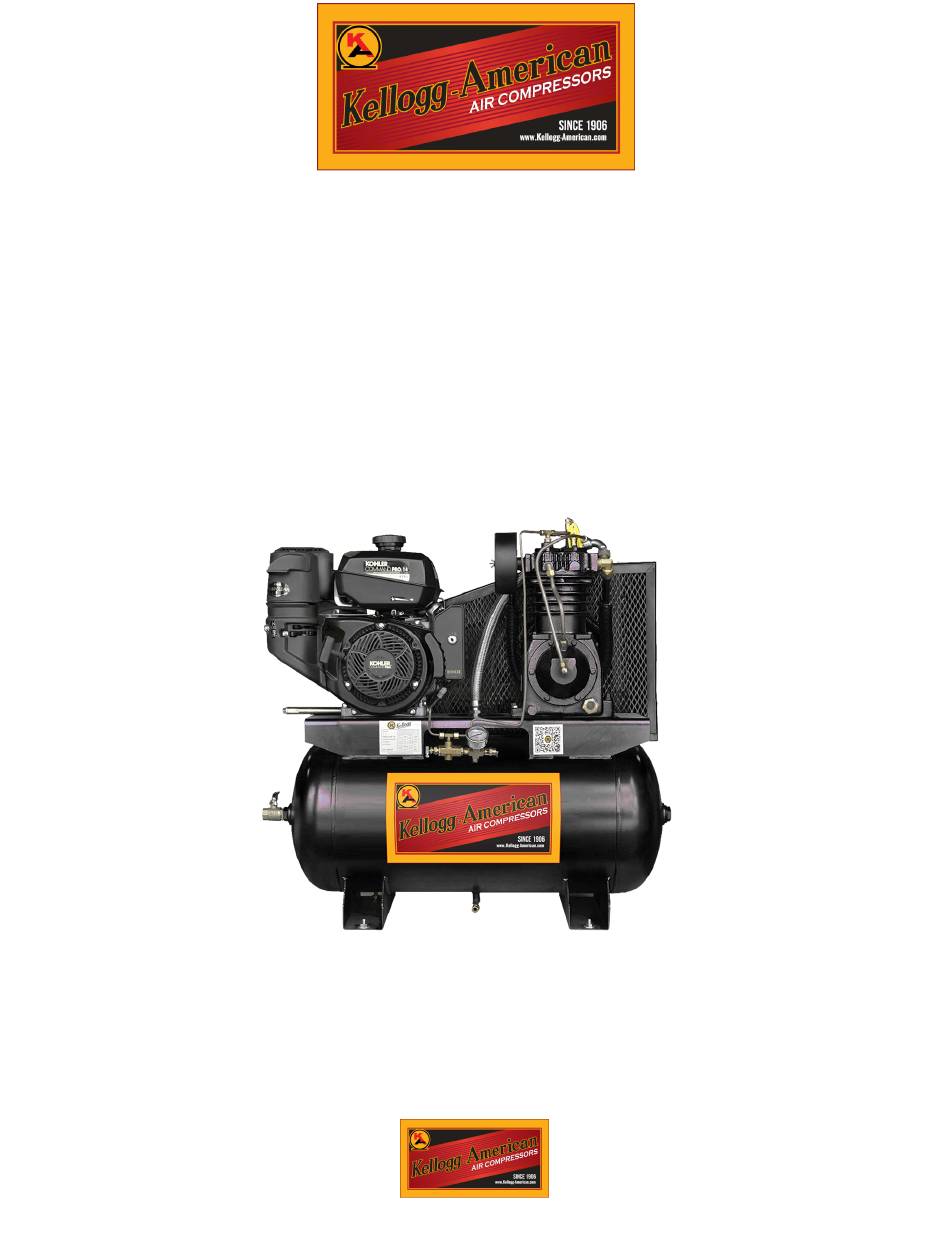

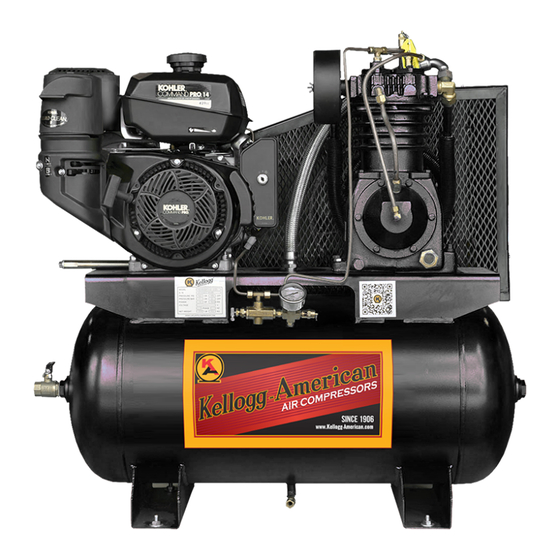

- Page 1 INSTRUCTION MANUAL: Industrial Series Piston Air Compressor Model Number: HD30GK14E-335 Part Number: 001132 Pump Model: LP335 Gasoline Engine: 14 HP Kohler Air Tank: 30 Gal Horizontal...
- Page 2 Unpackaging & Handling Be sure to carefully inspect the unit before accepting the shipment. If any damage has occurred document it with the trucking company immediately. Contact your Kellogg Distributor for additional assistance. We recommend leaving the unit on its shipping skid until it is moved to the final instillation site.
-
Page 3: Exhaust Fumes Are Poisonous
6. Do not operate the compressor at speeds in excess of its indicated rating on the compressor nameplate. 7. Do not remove any guards, shields, or screens while the compressor is operating. If removed for maintenance, replace before resuming operation. 8. -
Page 4: Installation Instructions
This Instruction Manual is only part of the full Operations Manual that can be found on the Kellogg American website, www.kellogg-american.com The operating instructions form part of the machine and must be made available to the compressor operating personnel at all times. In order to receive the... - Page 5 Starting: A. If compressor is shipped without oil in the crankcase, before starting, fill crankcase to the high level mark on the sight glass with Kellogg American oil meeting the following specifications: For operation in damp or humid conditions, addition of rust inhibitor is recommended.
-
Page 6: Maintenance
L. Electric Start Model: a. Turn Engine Switch to “ON” and then “Start”. M. Once Engine is Running: a. Return Choke Lever to “OFF”. b. Lower Throttle Lever to Desired Position. N. Stopping the Engine: a. Decrease Throttle Lever. b. Turn Engine Switch to “OFF”. c. - Page 7 Cleaning the air filter For the first 500 hours of compressor operation, a careful and regular check of the M a in t en a nce in t e r v a ls oil level should be made. Maintain full oil level at all times. After the first 500 hours the compressor is now ready to run for extended periods We recommend servicing and maintaining your compressor at the following intervals.
-
Page 8: Periodic Maintenance
Gasoline Engine Maintenance: PERIODIC MAINTENANCE Initial 1 Every 3 Every 6 Every Preoperation Item Remarks month or months or months or months or 300 check (daily) 20 Hrs 50 Hrs 100 Hrs Spark Plug: Remove • carbon. Adjust gap. Replace if necessary.
