Vixen Air VXA9350BD Installation Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the whole instruction guide before getting started with the installation. Professional installation is
recommended for this product.
CONTENTS

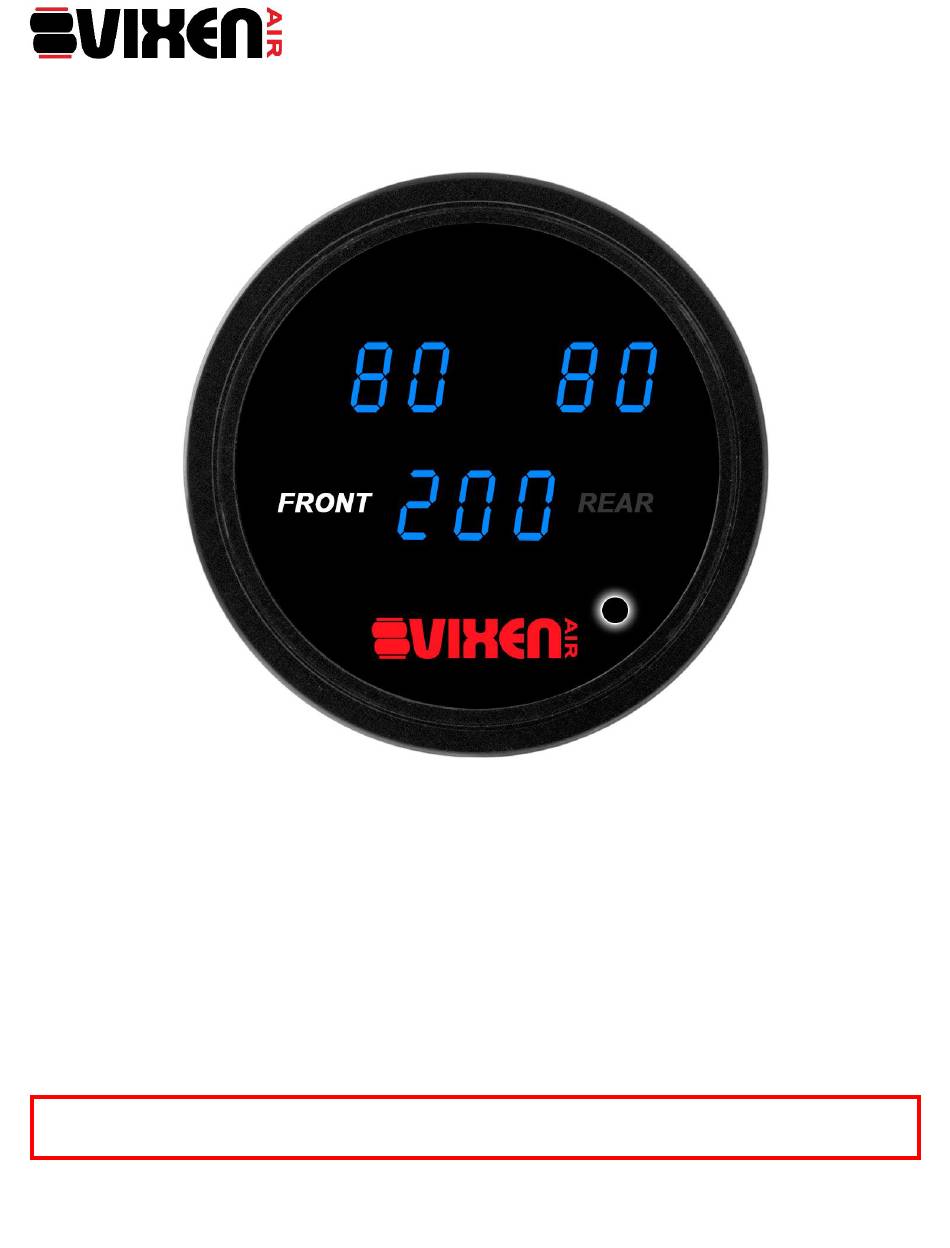

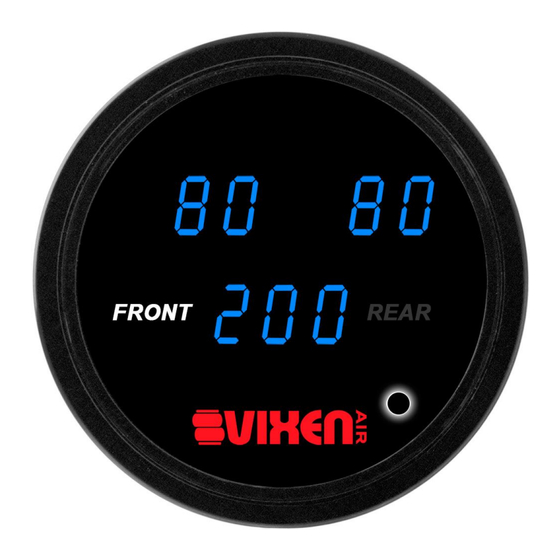

 2-3/8" Triple Display Digital Air Pressure Gauge (3 Display/5 Source)
 Housing with Base
 1/8" NPT Male Electronic Air Pressure Sensors with 6-½ Feet Wire Harness x 5
 Power Harness
 Mounting Hardware
SAFETY INSTRUCTIONS
 Do not apply shock to the product such as by dropping, doing so will affect its precision.
 Ensure that your air system has no pressure before starting the installation.
 Avoid installing the electronic air pressure sensors in a port where water can accumulate, for air tank installation
the best place is the top or side of the air tank.
 Apply sealant to fitting's threads of the electronic air pressure sensors before assembly. DO NOT OVER
TIGHTEN.
The specific voltage requirement for this air gauge is 12 volt DC, therefore installation must be done to a DC power
source of 12 volts.
PAGE 1 of 2
VXA9350BD
INSTALLATION GUIDE
