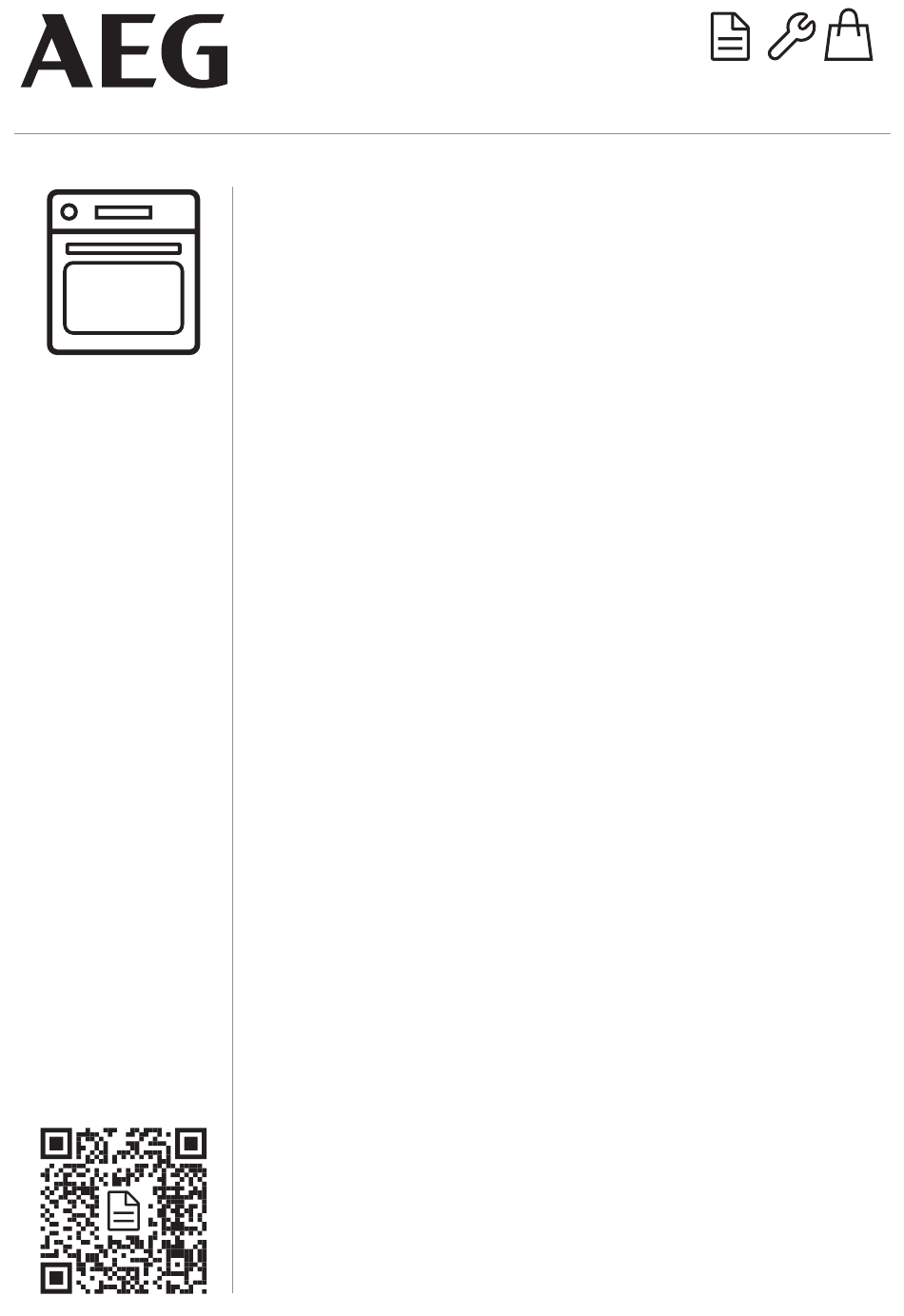

- Page 1 EN User Manual | Oven BPE53516AB BPK53516XB aeg.com\register...
- Page 2 Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. INSTALLATION....................7 4. PRODUCT DESCRIPTION................8 5.
- Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
- Page 4 • Always use oven gloves to remove or insert accessories or ovenware. • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence. •...
- Page 5 electrical ratings of the mains power supply. Total power (W) Section of the cable • Always use a correctly installed (mm²) shockproof socket. maximum 1380 3x0.75 • Do not use multi-plug adapters and extension cables. maximum 2300 • Make sure not to cause damage to the maximum 3680 3x1.5 mains plug and to the mains cable.
- Page 6 2.5 Pyrolytic cleaning – do not put aluminium foil directly on the bottom of cavity of the appliance. – do not put water directly into the hot WARNING! appliance. Risk of Injury / Fires / Chemical – do not keep moist dishes and food in Emissions (Fumes) in Pyrolytic Mode.
- Page 7 • Concerning the lamp(s) inside this product • Use original spare parts only. and spare part lamps sold separately: 2.8 Disposal These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, WARNING! vibration, humidity, or are intended to Risk of injury or suffocation.
- Page 8 (*mm) min. 550 min. 560 3.2 Securing the oven to the cabinet 4. PRODUCT DESCRIPTION 4.1 General overview Control knob Air vents for the cooling fan Heating element Lamp Shelf support, removable Shelf positions 4.2 Accessories • Wire shelf For cake tins, ovenproof dishes, roast dishes, cookware / dishes.
- Page 9 5. CONTROL PANEL 5.1 Turning the appliance on and off The appliance is locked. To turn on the appliance: 1. Press the knobs. The knobs come out. Submenu: Assisted Cooking. 2. Turn the knob for the heating functions to select a function. Submenu: Cleaning.
- Page 10 6. Clean the appliance and the accessories 3. Set the function . Set the maximum only with a microfibre cloth, warm water temperature. Let the appliance operate and a mild detergent. for 15 min. 7. Put the accessories and removable shelf 4.
- Page 11 1. Turn the knob for the heating functions to 7.4 Entering: Menu Open the Menu to access Assisted Cooking 2. Turn the control knob to select . Press dishes and settings. 1. Turn the knob for the heating functions to 3.
- Page 12 Dish Weight Shelf level / Accessory Pork spare ribs 2 - 3 kg; use raw, 2 2; roasting dish on wire shelf - 3 cm thin spare Add liquid to cover the bottom of a dish. ribs Whole chicken 1 - 1.5 kg; fresh 2;...
- Page 13 4. Turn the control knob to adjust the value. Setting Value Press 5. Turn the knob for the heating functions to Uptimer On / Off the off position to exit Menu. Light On / Off Menu: Settings Fast Heat Up On / Off Setting Value...
- Page 14 9. CLOCK FUNCTIONS 9.1 Clock functions description When the time ends, press and turn the knob for the heating functions to the off position. To set the clock that displays the cur‐ rent time. Time of day 9.4 Setting: Time Delayed Start To set a countdown timer.
- Page 15 10. USING THE ACCESSORIES Insert the shelf between the guide bars of the WARNING! shelf support and make sure that the feet point down. Refer to Safety chapters. Baking tray 10.1 Inserting accessories A small indentation at the top increases safety.
- Page 16 11.3 Moist Fan Baking • Ramekins - ceramic, diameter 8cm, height 5 cm For the best results follow suggestions listed • Flan base tin - dark, non-reflective, in the table below. diameter 28cm Sweet rolls, 12 pieces baking tray or dripping pan 35 - 40 Rolls, 9 pieces baking tray or dripping pan...
- Page 17 Small cakes, 16 per Conventional Cooking Baking tray 25 - 35 tray Small cakes, 16 per True Fan Cooking Baking tray 20 - 30 tray Small cakes, 16 per True Fan Cooking Baking tray 1 and 3 20 - 30 tray Apple pie, 2 tins Ø20 Conventional Cooking...
- Page 18 12.2 Removing the shelf supports When the cleaning starts, the appliance door is locked and the lamp is off. Until the door Remove the shelf supports to clean the unlocks the display shows appliance. 7. After cleaning, turn the knob for the 1.
- Page 19 Make sure that you put the glass panels ( , and ) back in the correct sequence. Check for the symbol / printing on the side of the glass panel. Each of the glass panels looks different to make the disassembly and assembly easier.
- Page 20 13. TROUBLESHOOTING WARNING! Refer to Safety chapters. 13.1 What to do if... Problem Check if... You cannot activate or operate the appliance. The appliance is correctly connected to an electrical supply. The appliance does not heat up. The automatic switch-off is deactivated. The appliance does not heat up.
- Page 21 BPE53516AB 944068463 Model identification BPK53516XB 944068462 Energy Efficiency Index 81.7 Energy efficiency class Energy consumption with a standard load, conventional mode 0.94 kWh/cycle Energy consumption with a standard load, fan-forced mode 0.67 kWh/cycle Number of cavities Heat source Electricity Volume...
- Page 22 When you use this function the lamp turn on the lamp again but this action will automatically turns off after 30 sec. You may reduce the expected energy savings. 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol .
- Page 24 867377885-A-132024...
