5041051/4

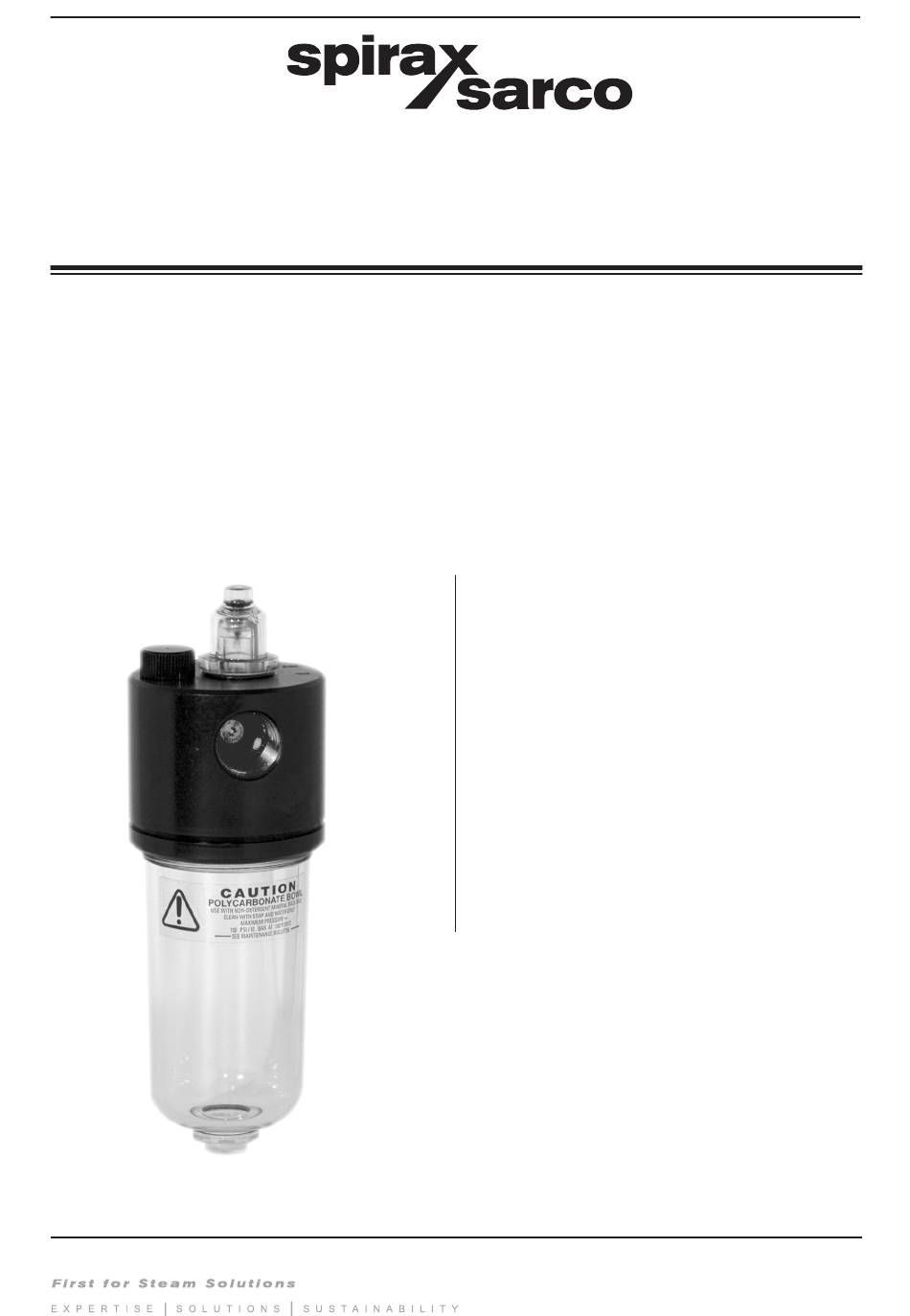

Monnier International Compressed Air Lubricator
IM-P504-16 CTLS Issue 4
Installation and Maintenance Instructions
IL1M Monnier International Compressed Air Lubricator
IL1M
1. Safety information
2. General product information
3. Installation and
commissioning
4. Operation
5. Spare parts and
maintenance
IM-P504-16
CTLS Issue 4
© Copyright 2024
1
Printed in GB
Advertisement
Summary of Contents for Spirax Sarco IL1M
- Page 1 Monnier International Compressed Air Lubricator Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation and commissioning 4. Operation 5. Spare parts and maintenance IL1M Monnier International Compressed Air Lubricator © Copyright 2024 IM-P504-16 CTLS Issue 4 Printed in GB...
- Page 2 The products have been specifically designed for use on compressed air, which is in Group 2 of the above mentioned Pressure Equipment Directive. The products’ use on other fluids may be possible but, if this is contemplated, Spirax Sarco should be contacted to confirm the suitability of the product for the application being considered.
- Page 3 90 °C (194 °F). Many products are not self-draining. Take due care when dismantling or removing the product from an installation (refer to 'Maintenance instructions'). IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 4 Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Spirax Sarco they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk.
- Page 5 2. General product information 2.1 General description The IL1M Monnier international compressed air lubricator injects oil at a controlled rate into compressed air for the lubrication of pneumatic equipment. Principal features: Once set, compensates for varying air flowrates. Oil injected to give maximum atomisation.
- Page 6 Part Material Head Aluminium Bowl Polycarbonate or Aluminium (Epoxy coated) Seal Nitrile rubber Capacity valve Acetal Bowl guard (optional extra) Stainless steel Fig. 1 IL1M Monnier international compressed air lubricator IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 7 Generally the oil will be of the free fogging type in the viscosity rang of 7.5 to 64 centistokes (45 to 280 seconds Redwood No. 1) at 38 °F. Fig. 4 IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 8 The automatic air control valve allows you to fill the oil reservoir (2) while the unit is pressurised and without shutting down. Fig. 5 Operation IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 9 4.3 Capacities - For all sizes Air flow scfm Air flow dm ¼" Maximum recommended flow 3/8" Maximum recommended flow ½" Maximum recommended flow IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 10 Bowl assembly state polycarbonate or metal (with or without sight level) Sight dome and filler plug assembly C, C1 Note: In the interests of safety Spirax Sarco recommend that a bowl guard (an optional extra) should be fitted to polycarbonate bowls. How to order spares Always order spares by using the desciption given in the column headed 'Available spares' and state the size and type of unit.
- Page 11 Fig. 6 Spare parts IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
- Page 12 IL1M Monnier International Compressed Air Lubricator IM-P504-16 CTLS Issue 4...
