Summary of Contents for Aithre Altus AVI8 w

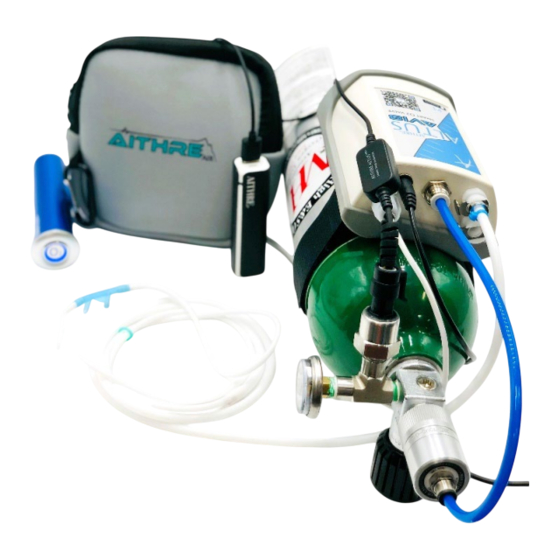

- Page 1 Aithre Altus AVI8 w/ Aithre-Mountain High Regulator DEVICE OPERATION MANUAL AITHRE ALTUS AV8I W/MH REG DEVICE OPERATION MANUAL...
- Page 2 PACKAGE CONTENTS: AITHRE AVI8 2-PLACE SMART O2 VALVE .............4 PACKAGE CONTENTS: AITHRE ALTUS MESO ..................5 PACKAGE CONTENTS: MOUNTAIN HIGH REGULATOR ................5 PRODUCT OVERVIEW: AITHRE ALTUS MESO AND YOUR EXISTING BOTTLE AND VALVE ......5 PACKAGE OVERVIEW: MOUNTAIN HIGH REGULATOR .................6 PRODUCT OVERVIEW: AITHRE AVI8 1-PLACE SMART O2 VALVE ............6 ................................7...
- Page 3 WARRANTY NOTICE ......................... 17 AITHRE SUPPORT ..........................17 AITHRE ALTUS AV8I W/MH REG DEVICE OPERATION MANUAL...
- Page 4 INTRODUCTION The Aithre Altus AVI8 2-Place Smart Valve with Aithre - Mountain High Regulator is a 2-place portable smart oxygen system that can work with any existing bottle and valve. Your valve must have a CGA-540 port. The AVI8 provides high endurance through microburst technology and uses biometric feedback and altitude control when used with the Aithre Connect iOS app.
- Page 5 3. Push to Connect Port Alternative, 90 PRODUCT OVERVIEW: AITHRE ALTUS MESO AND YOUR EXISTING BOTTLE AND VALVE NOTE: See “Aithre Altus Meso Installation Instructions” for detailed installation instructions. The Information below assumes you have read and safely installed the Meso Transducer.
- Page 6 Mountain High Regulator Installation • Ensure the valve is off • Hand Tighten MH Regulator to the valve PRODUCT OVERVIEW: AITHRE AVI8 1-PLACE SMART O2 VALVE o AVI8 Control Box Top O2 Handle Button Cord • Power cord female port •...
- Page 7 “Hook” side has no adhesive and is positioned through strap eyelets of AVI8 control box • Cut to desired length or leave long for position variability • Remove rubber protector and slide on to AVI mounting kit (sold separately) AITHRE ALTUS AV8I W/MH REG DEVICE OPERATION MANUAL...
- Page 8 Fill in 500 PSI stages to overheating bottle o Hand tighten regulator back on • Secure bottle in airplane Connect the Aithre Altus Meso to the transducer, • connected when you hear “click” • Plug the Altus Meso to USB power...
- Page 9 Aithre-Mountain High regulator over 12500 feet. Aithre has 47L fixed flow bottles or adjustable flow emergency bottles that are available for this purpose. The Aithre-Mountain High regulator requires that the valve be turned on. No oxygen will flow if the manual valve on the bottle is in the off position.
- Page 10 AVI8 under 8000 FT and fully understand its operation and system limitations before continuing higher. When above 12500 FT, Aithre recommends use of the Illyrian wearable oximeter for continuous SPO2 monitoring and use of a backup emergency oxygen source or bottle.
- Page 11 • Without Aithre Connect iOS app connected system delivery defaults to recommended O2 at 18,000 ft at each station Optionally, the Aithre Connect iOS app may be used to monitor and/or further control the • AVI8 system o Open the Aithre Connect iOS app while the AVI8 is activated o The Aithre Connect iOS app is not required for operation o See section “IOS APP and WatchOS Companion APP”...
- Page 12 IOS APP AND WATCHOS COMPANION APP While the AVI8 is powered “on” it will auto-pair with the Aithre Connect App. The app can be used to enhance the safety and efficiency of the AVI8. Additionally, the Aithre Illyrian oximeter can be worn and provide SPO2 and heart rate information to the further enhance the AVI8 O2 delivery to the user.
- Page 13 AVI8 for items such as heart rate, SPO2, pressure altitude, etc. If oxygen is not required prior to departure, it is still important to set up the parameters on the Aithre app to prevent in-flight distraction.
- Page 14 The cannulas should be replaced periodically to prevent infection. • It is not required to disconnect the feed line from the Aithre oxygen bottle and the AVI8. EMERGENCY PROCEDURES NO OXYGEN FLOW OR NO RESPIRATION •...
- Page 15 WARNING: Exercise great care in not dropping the oxygen bottle. Bottle impacts can compromise the bottle’s structural integrity, which will render the bottle unsafe to fill. In extreme cases, the bottle can even explode which can lead to bodily harm and/or fatal injury. AITHRE ALTUS AV8I W/MH REG DEVICE OPERATION MANUAL...
- Page 16 L'exploitation est autorisée aux deux con- ditions suivantes: (1) l'appareil ne doit pas produire de brouillage; (2) l'utilisateur de l'appareil doit accepter tout brouil- lage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. AITHRE ALTUS AV8I W/MH REG DEVICE OPERATION MANUAL...
- Page 17 EXPOSED TO LIQUID OR DUST. WARRANTY LIMITED TO THE FOREGOING AND OTHERWISE, AS IS WITH NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE EXPRESS OR IMPLIED. AITHRE SUPPORT Support for Aithre products is available on our website www.aithreaviation.com, phone 208-481-8310, and email support@aithreaviation.com Location Aithre Inc.
