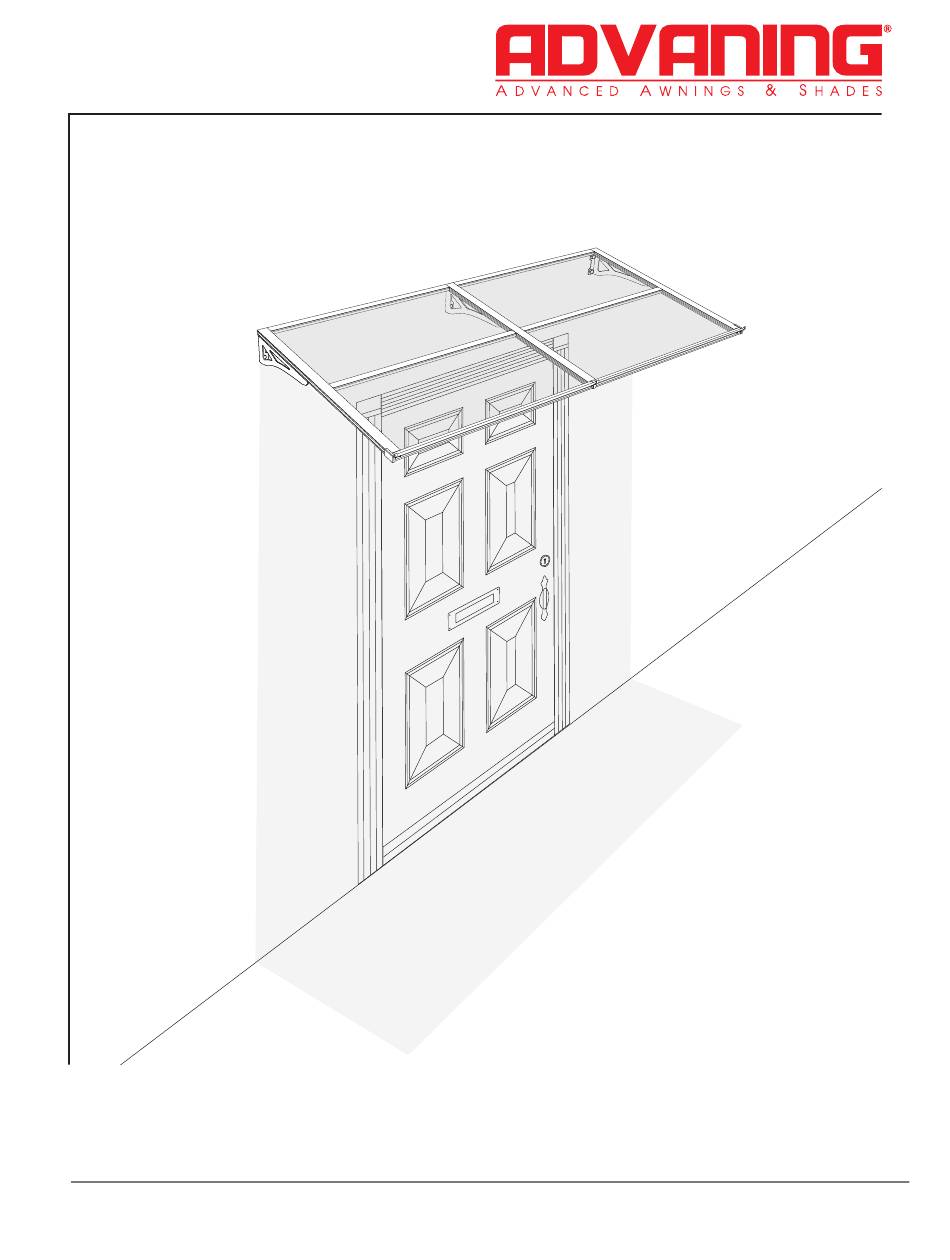

- Page 1 PS SERIES : Polycarbonate Awning Owner’s Manual For your safety and the safety of others, please read all of the instructions and warnings in this manual carefully before proceeding with assembly and usage.
- Page 2 TABLE OF CONTENTS Safety instructions and warnings ......... 1~2 Package contents and parts .
- Page 3 Ascertain that assistance is available to lift and secure in position. • Make certain that the installation substrate is adequate (the PS Series awning MUST be mounted to the main structural supports) studs, header board, or solid masonry 3-inch in thickness or greater.
- Page 4 PACKAGE CONTENTS AND PARTS Before attempting your assembly, please ensure the package contains all parts and qty’s as listed on this page. Part Quantity Solid Polycarbonate Sheet Steel Bracket Side View Rear & Center Cross Bar 1 Left Parallel Bar 1 Right Center Parallel Bar Side View...
- Page 5 TOOL REQUIREMENTS RECOMMENDATION Minimum 2 people to install. INCLUDED: 3mm Allen Wrench Plastic Scraper REQUIRED: Marker / Pencil Scissors Chalk Line / Laser Level Stud Finder Measuring Tape Slow Curing Outdoor Silicone (Clear) Level Rubber Mallet Phillip Head Screw Driver Painters Tape 1/2"...
- Page 6 AWNING TERMINOLOGY AND LOCATION Fig.5 Note: For illustration purposes, multiple or duplicate parts are not necessarily labeled. Solid Polycarbonate Sheet Front Gutter (RIGHT) Short Rubber Gasket Steel Brackets Front Gutter (LEFT) Gutter Securing Screws Rear/Center Cross Bar Gutter Connector Bracket Securing Screws Center Parallel Bar Gutter End Cap (RIGHT) Lag Screw and Washer...
- Page 7 Fig 7 Awning Model: DA7935 = 79 inches of run length Awning Model: DA9435 = 94 inches of run length CAUTION! The PS series allows for two units to be connected for Series awning longer run lengths. Please MUST be mounted visit www.advaning.com...
- Page 8 AWNING ASSEMBLY ASSEMBLY PREPERATION Bottom Avoid scratching or denting the frame parts or compo- nents; assemble them on a clean and clear table or floor. A moving blanket or card- board is recommended to Fig 9 be laid over the working area where parts or assem- bly may rest.
- Page 9 AWNING ASSEMBLY Align and insert the poly- carbonate sheet (bottom facing up during assem- bly) into the Rear and Cross Bars until it slides into the Center Parallel Bar. NOTE: The Cross Bar can be adjusted as needed to frame the Polycarbonate Sheet by gently tapping with a mallet.
- Page 10 AWNING ASSEMBLY Align and insert the poly- carbonate sheet (bottom facing up during assem- bly) into the Center and Right Parallel Bars until it slides into the Cross Bar. NOTE: The Front Gutter Bars have pre-drilled holes, the single hole side will connect to the Center Parallel Bar.
- Page 11 AWNING ASSEMBLY Repeat steps 3~8 for LEFT side of the awning. Align and slide the Left Front Gutter (F) into the Gutter Connector and secure in place with the Gutter Securing Screws (K). Using Allen Wrench inspect all joint connections, DO NOT OVERTIGHTEN, Over- tightening...
- Page 12 AWNING ASSEMBLY INSERTING THE RUBBER GASKETS Continue with the flat side of the frame down/ bottom of the awning facing up. Lay the Long Rubber Gasket (I) onto the as- sembled awning. Note the curved design (Ref- Fig 21 erence Fig. 21) end of the Rubber Gasket;...
- Page 13 READY AWNING FOR INSTALLATION Flip the awning over, so that the top of the awning is facing up and carefully remove the polycarbon- ate protective film (top- side only). NOTE: Inspect the top of Fig 24 the awning seams, if there is a gap or unevenness, flip the awning over and inspect the connections from being...
- Page 14 AWNING INSTALLATION INSTALLING THE BRACKETS With a Stud Finder locate Installation Area the header, or studs and with a Chalk Line/Laser Level mark the installa- tion area. Chalkliner Use a Steel Bracket (B) to then mark the location for your center bracket Stud finder pilot holes.
- Page 15 AWNING INSTALLATION A small amount of Slow Curing Silicone can be applied into the pilot SILICONE holes. With a Wrench/Socket Wrench secure the Brack- Wall ets onto wall with the Lags Screws and Washers Fig 30 (M). Fig 31 With a helper/s and lad- ders, lift the awning onto the installed brackets.
- Page 16 AWNING INSTALLATION With the awning securely attached to the brackets, gently peel the bottom polycarbonate protective film from the polycarbon- ate sheets. Fig 34 COMPLETE INSTALLATION Apply a small dot of slow curing silicone to the Gutter End Caps Left and Right (H) and clip into Fig 35 place on both sides.
- Page 17 EXTRAS, CARE AND MAINTENANCE CONNECTING TWO PS Series allows for multiple units to be connected for a custom run length. To prepare for connecting units, please contact Advaning service dept. for OR MORE UNITS additional parts needed. You can download the step by step instructions for connecting multiple units via www.advaning.com...
- Page 18 Should the original owner/purchaser submit a claim within the warranty period from the date of the purchase and after being deemed defective by Advaning, will the warranty claim be resolved by either of the following: A. Defective components are replaced (shipping charges may apply).
- Page 19 3-days of signing for the delivery in order to make a claim. Likewise, there is a 7-day window from the time of delivery to report missing parts to Advaning. Failure to report shipping damage and missing parts in a timely manner and in accordance with the shipper/ carrier guidelines may result in the owner incurring all costs.
- Page 20 CONTACT Product Questions? Please contact Advaning via email at service@advaning.com, INFORMATION by phone at 714-622-2600, or by chat on our website; www.advaning.com Advaning Customer Service is available Monday through Friday from 8:30 a.m. to 4:00 p.m. PST www.advaning.com PS.OM.V01.2407...
