Summary of Contents for Devatec ElectroVap STEAM BATH

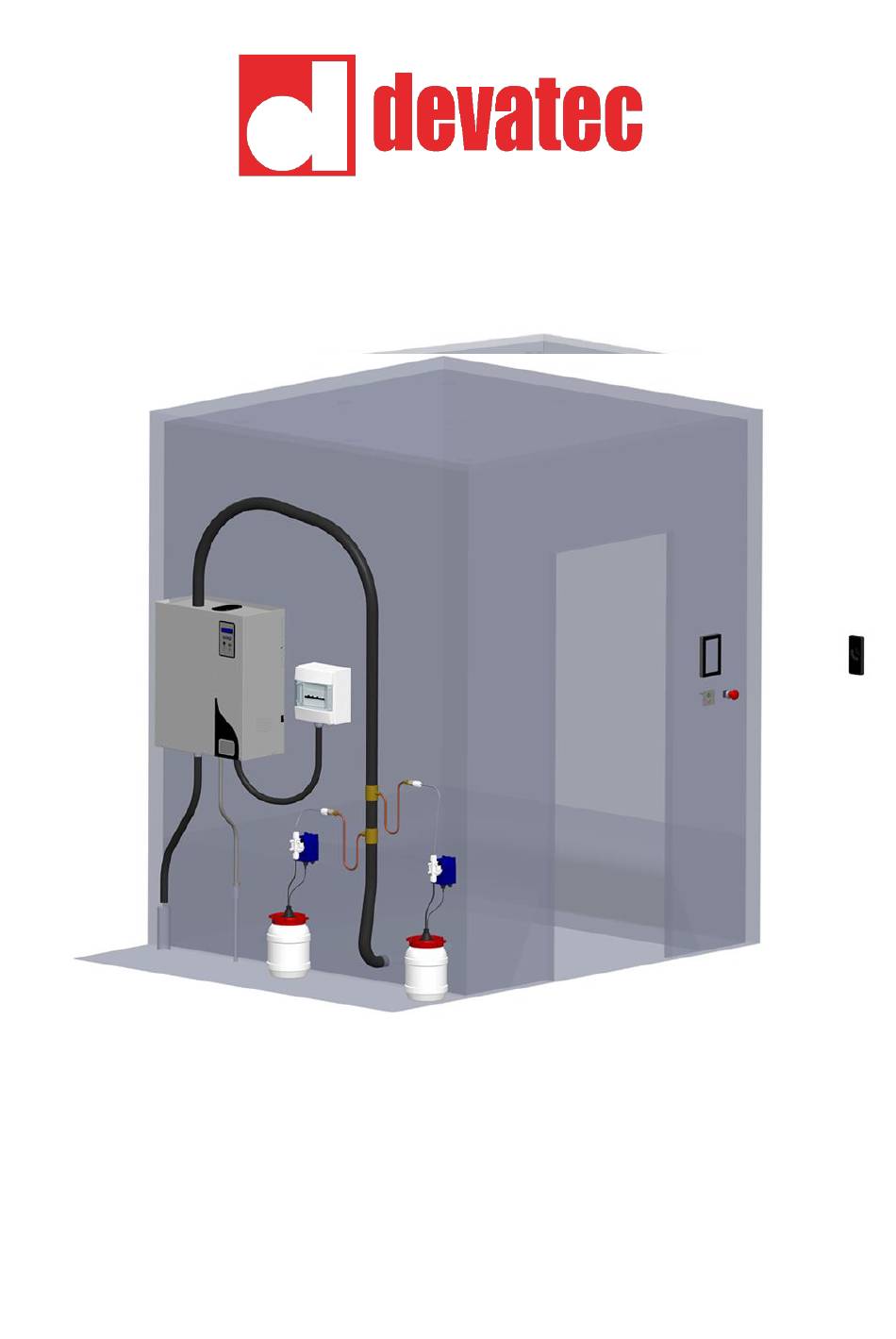

  • Page 1 Instruction & Operation Manual ACCESSORIES AND OPTIONS FOR STEAM GENERATORS...
  • Page 3 Contents SAFETY INSTRUCTIONS ............................... 4 GATEWAY ..................................7 STEAM BATH REMOTE CONTROL ............................. 11 EMERGENCY STOP ................................17 TIMER BATH ..................................18 FRAGRANCE DISPENSER ........................ Erreur ! Signet non défini. DISINFECTANT DISPENSER ..............................24 LIGHT TRANSFORMER ..............................29 STEAM DIFFUSION NOZZLE .............................. 30...
  • Page 4 • If the package is damaged, please make a claim to your carrier by registered letter with acknowledgement of receipt within 24 hours and make a declaration to your Devatec representative. • Images, graphics and values are subject to change without notice.
  • Page 5 At its discretion, GUARANTEE Devatec may also decide to refund the purchase price of the part or product. Failure to comply with the above recommendations, additional assembly and/or conversion using...
  • Page 6 1.3 RoHS DECLARATION Devatec, Confirms that ElectroVap® STEAM BATH steam generator accessories and options are manufactured in compliance with the following European regulations: 2011/65/EU These regulations govern the use of mercury, cadmium, lead (in welding processes), chromium VI as well as PBB and PBDE after July 1, 2006.
  • Page 7 2. GATEWAY 2.1 PRODUCT PRESENTATION 2.1.1 Contents The Devatec Gateway option is an accessory designed to control certain ElectroVap Steam Bath functions using a smartphone. The Bluetooth kit enables : ➢ Start and stop steam production ➢ Remote calendar control of the Steam Bath generator (ELMC-SB) ➢...
  • Page 8 Devatec Gateway away from load-bearing walls and metal structures. It is advisable to place this option as close as possible to the point of use. You can connect your Devatec Gateway, then place it under the electrical part of the steam generator, if the range is sufficient for use.
  • Page 9 2.3 USE 2.3.1 Devatec Steam Bath application First, you need to download the SAGE® by Armstrong application. Go to the store on your mobile device to download it. You can also use the links or scan the QR codes below: 2.3.2 Application visuals...
  • Page 10 Check that the steam generator has been switched on before the Devatec Gateway. If in doubt, restart your Devatec Gateway. After each Devatec Gateway start-up, you must wait at least 5 minutes for it to initialize completely. Before this, the Devatec Gateway will be detectable, but not the steam generators connected to it.
  • Page 11 If your steam generator does not come with this board, please order it from your distributor. 3.1.1 Contents This accessory includes the following components: 1. A Devatec remote control 2. 5 VDC communication and power supply kit for remote control...
  • Page 12 3.1.2 Dimensions In-wall version Once installed, you'll need to use isopropyl alcohol with a very fine tool to remove the screen, otherwise you risk breaking it. Plan to make a hole in your wall to embed the remote control. The embedding window should be 103x173 mm by 22 mm deep.
  • Page 13 3.2 INSTALLATION 3.2.1 Connection For the electrical connections below, use 0.75mm² maximum flexible cable. Position inside the generator...
  • Page 14 3.2.2 Home page To settings page Steam bath Time remaining temperature (Option) Steam room temperature setpoint Fragrance instructions Activate other options (Option 8 relays) Switching the steam Steam bath on/off room lights on and When your remote control is switched on, or if the connection with the steam generator is lost, the symbol is displayed until the connection with your steam generator is established.
  • Page 15 3.2.3 Settings page Back to home page and weekly programming Choice of option icon Choice of whether or not to display the option on the home page Time setting Day setting Logo display Temperature unit selection Icon definition and operation : Laser Heated seat Inhaler...
  • Page 16 3.2.1 Programming page Previous menu Set steam bath activation time Choice of day and programming activation Setting the steam bath deactivation time How it works : Display day indicator Activation status...
  • Page 17 4. EMERGENCY STOP The emergency stop option enables the steam generator to be switched off immediately at the touch of a button, and to activate the ventilation (if ventilation is connected to the generator). To restart steam production, it is necessary to disengage the push-button and switch the steam generator off and on again.
  • Page 18 5. TIMER BATH The timer bath allows the steam generator to be switched on for a user-defined time. This option is not compatible with the Remote Control and Gateway options. The 3-contact board is essential for operation of the timer bath device. It is fitted as standard in new steam generators.
  • Page 19 5.2 INSTALLATION 5.2.1 Positioning The module with push-button and two-tone LED is mounted on the wall next to the steam bath door. The 3-relay card is mounted in the electrical part of the steam generator below the main card, using the 2 screws supplied. 5.2.2 Electrical connection Remove the original connections to connect the timer bath option.
  • Page 20 6. FRAGRANCE DISPENSER The products used for the fragrance option may cause health problems. Read the instructions carefully before use. The operator of the Steam Bath is responsible for the conformity of the selected product. The 3-contact (or 8-contact) board is essential for operation of the fragrance option. It is fitted as standard in new steam generators.
  • Page 21 6.1.2 Dimensions Steam hose 6.2 INSTALLATION 6.2.1 Positioning Install the pump in an area where ambient temperature does not exceed 40°C and relative humidity is less than 90%. Fix the pump (screw supplied) max. 1.5 m from the fragrance canister. Position the coil assembly as close as possible to the steam nozzle, then connect it to the steam piping according to your pipe diameter (Ø25 or Ø40 mm).
  • Page 22 6.2.2 Electrical connection Position in generator Rail connection Fragrance pump 6.2.3 Pump status ➢ Flashing synchronously with pump operation: normal operation. ➢ Slow flashing without dosing: functional stop. ➢ Rapid flashing without dosing: level alarm. ➢ LED always off: power supply disconnected or insufficient voltage (< 90Vac).
  • Page 23 6.3 USE 6.3.1 Activation Regardless of the operating mode, terminals 3 and 4 are set to use the fragrance diffuser. To activate : ➢ Start pump at maximum frequency (1) ➢ Open priming connector (3) ➢ Wait for liquid to come out ➢...
  • Page 24 7. DISINFECTANT DISPENSER The products used for the disinfectant option may cause health problems. Read the instructions carefully before use. The operator of the Steam Bath is responsible for the conformity of the selected product. 7.1 CONTENT AND DIMENSIONS 7.1.1 Contents This accessory includes the following components: 1.
  • Page 25 7.1.2 Dimensions 7.2 INSTALLATION 7.2.1 Positioning Install the pump in an area where ambient temperature does not exceed 40°C and relative humidity is less than 90%. Fix the pump (screw supplied) max. 1.5 m from the fragrance canister. Position the coil assembly as close as possible to the steam nozzle, then connect it to the steam piping according to your pipe diameter (Ø25 or Ø40 mm).
  • Page 26 7.2.2 Electrical connection Position in generator Rail connection Disinfectant pump 7.2.3 Pump status ➢ Flashing synchronously with pump operation: normal operation. ➢ Slow flashing without dosing: functional stop. ➢ Rapid flashing without dosing: level alarm. ➢ LED always off: power supply disconnected or insufficient voltage (< 90Vac).
  • Page 27 7.3 USE 7.3.1 Activation Regardless of the operating mode, terminals 3 and 4 are set to use the fragrance diffuser. To activate : ➢ Start pump at maximum frequency (1) ➢ Open priming connector (3) ➢ Wait for liquid to come out ➢...
  • Page 28 7.3.3 Course T° TOO HIGH T= xx°C - WAITING If the temperature in the steam room exceeds 35°C, the following message appears WAITING STEAM PRODUCTION When the steam room temperature is below 35°C, the following message appears Once the generator produces steam and the temperature inside the steam room rises, disinfectant diffusion is activated for a programmed time.
  • Page 29 8. LIGHT TRANSFORMER This option allows you to adapt and control a light inside the steam room. It is available in 2 references with 2 different wattages: 50 VA and 100 VA. Transformer wattage is determined by light wattage and whether the remote control option is present.
  • Page 30 9. STEAM DIFFUSION NOZZLE 9.1 CONTENT AND DIMENSIONS 9.1.1 Contents This accessory includes the following components: 1. A nozzle/steam pipe adapter shaft 2. A nozzle head 3. A positioning nut 9.1.2 Dimensions 9.2 INSTALLATION 9.2.1 Positioning Steam hose connection Steam room wall...
  • Page 32 Tel. +33 (0)2 35 04 61 41 → Email : france@devatec.com Devatec continues to develop its products. For this reason, product features and specifications are subject to change without notice. DT_SB V3-OPTION_EN_REV A.1- 10/2024 Edition - V 3.0.X program version...
