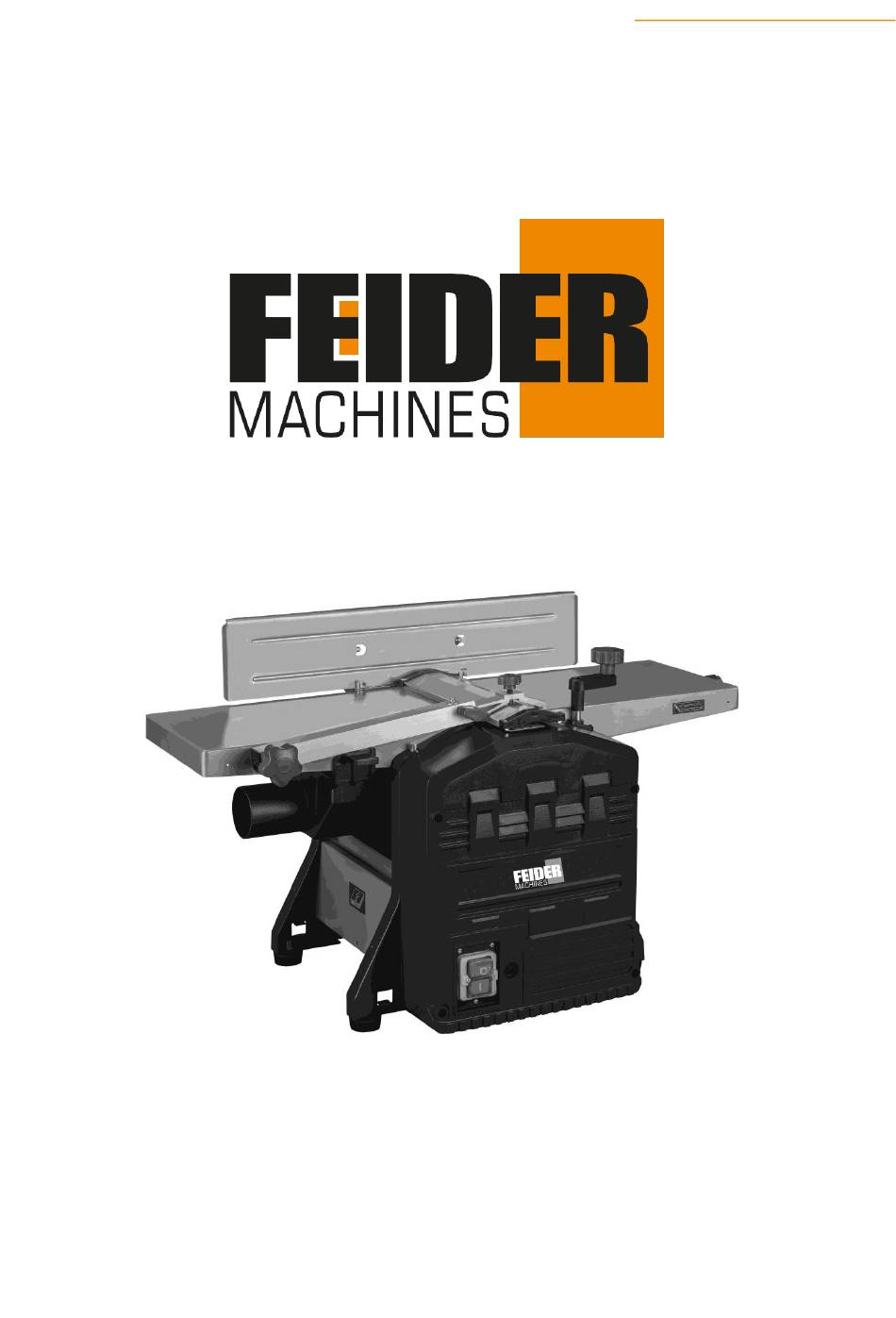

- Page 1 ORIGINAL INSTRUCTIONS >EN PLANER THICKNESSER FRD1250 CAUTION: Read the instructions before using the product.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PRODUCT DESCRIPTION SPECIFICATION REPLACEMENT OF PARTS AND MAINTENANCE TROUBLESHOOTING DISPOSAL DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 6: Safety Instructions
1. SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS "WARNING ! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions". Safe operation 1) Keep work area clear - Cluttered areas and benches invite injuries. - Page 7 - Inspect tool cords periodically and if damaged have them repaired by an authorized service facility. - Inspect extension cords periodically and replace if damaged. - Keep handles dry, clean and free from oil and grease. 15) Disconnect tools - When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.
-
Page 8: Safety Equipment
• If possible, only connect the device to a power socket with a residual current device (RCD) with a rated residual current no more than 30 mA. SAFETY EQUIPMENT • Safety switch in the recess (13) ensures that the collection container with connection for external dust extraction is fitted, otherwise the device cannot be started. -
Page 9: Product Description
Electrical products must not Scale, thicknesser be disposed of with the domestic waste. 2. PRODUCT DESCRIPTION OVERVIEW Rip fence Push stick Star grip screw A. 19) Hexagon socket screws Crank handle B. 20) Holder Feed table C. 21) Latch Adjusting screw, surface planer cutting depth C. -
Page 10: Use
Planer width max. 204 mm Max. chip removal Thicknesser Passage height/width . 120/204 mm Feed rate 6.3 m/min Protection type IPX0 Sound pressure level L 90,0 dB(A), K= 3dB(A) Sound power level measured L 97,5 dB(A), K= 3dB(A) Surface planer Sound pressure level L 98,8(A), K= 3dB(A) Sound power level measured L... - Page 11 Attaching the crank handle Place the crank handle (3) on the holder (20) on the device housing (11). Mounting the chip extractor Loosen the small screw (22) on the left and right latch (21). If necessary, remove the collection container with connection for external dust extraction (16) from the discharge table (14).
-
Page 12: General Working Instructions
- the functioning of the On/Off switch - the blade brake If any of these checks reveal damage or improper operation, do not operate the machine. CHECKING THE SWITCH AND BLADE BRAKE On/Off switch 1) Turn the machine on using the On switch (9) and allow it to reach full speed. 2) Turn the machine off using the Off switch (10). -
Page 13: Switching On/Off
SWITCHING ON/OFF Switching on: Press the On switch (9). Switching off: Press the Off switch (10). OVERLOAD PROTECTION In the event of overload, the machine switches off automatically to protect the motor ( overload protection). If the machine switches off automatically, wait briefly and then press the overload switch (8) (reset). You can then start the machine again using the On switch (9). -
Page 14: Replacement Of Parts And Maintenance
4) If the desired height has not yet been reached, readjust the workpiece height (max. 2 mm) and repeat the process until you have reached the desired height. Replacing and aligning the blades Cutting hazard! Do not hold the blade by its cutting edges. Two blades are installed in the blade shaft. -
Page 15: Troubleshooting
Alternatively, you can use a special cleaner (resin solvent) or multispray. Please take notice of the safety information and instructions provided by the manufacturer of the special cleaner/ multispray. MAINTENANCE The device is maintenance free. STORAGE • Store the device in a dry and dustproof location and out of reach of children. •... -
Page 16: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Planer Thicknesser Model number: FRD1250 S/N: 20220300001-20220300100 20220654886-20220656405 Complies with the provisions of the Directive « machinery » 2006/42/EC and national laws transposing it:... -
Page 17: Product Failure
ensuing damage. The warranty does not cover breakdowns due to: insufficient maintenance. abnormal assembly, adjustment or operations of the product. parts subject to normal wear and tear. The warranty does not extend to: shipping and packaging costs. using the tool for a purpose other than that for which it was designed. the use and maintenance of the machine done in a manner not described in the user manual. -
Page 18: Warranty Exclusions
• Go to the store with the complete machine and with the receipt or invoice. If you bought your product on a website: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. - Page 19 • Periodic and standard maintenance events. • Actions of modification and dismantling that directly void the warranty. • Products whose original authentication marking (brand, serial number) has been degraded, altered or withdrawn. • Replacement of consumables. • The use of non-original parts. •...
- Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
