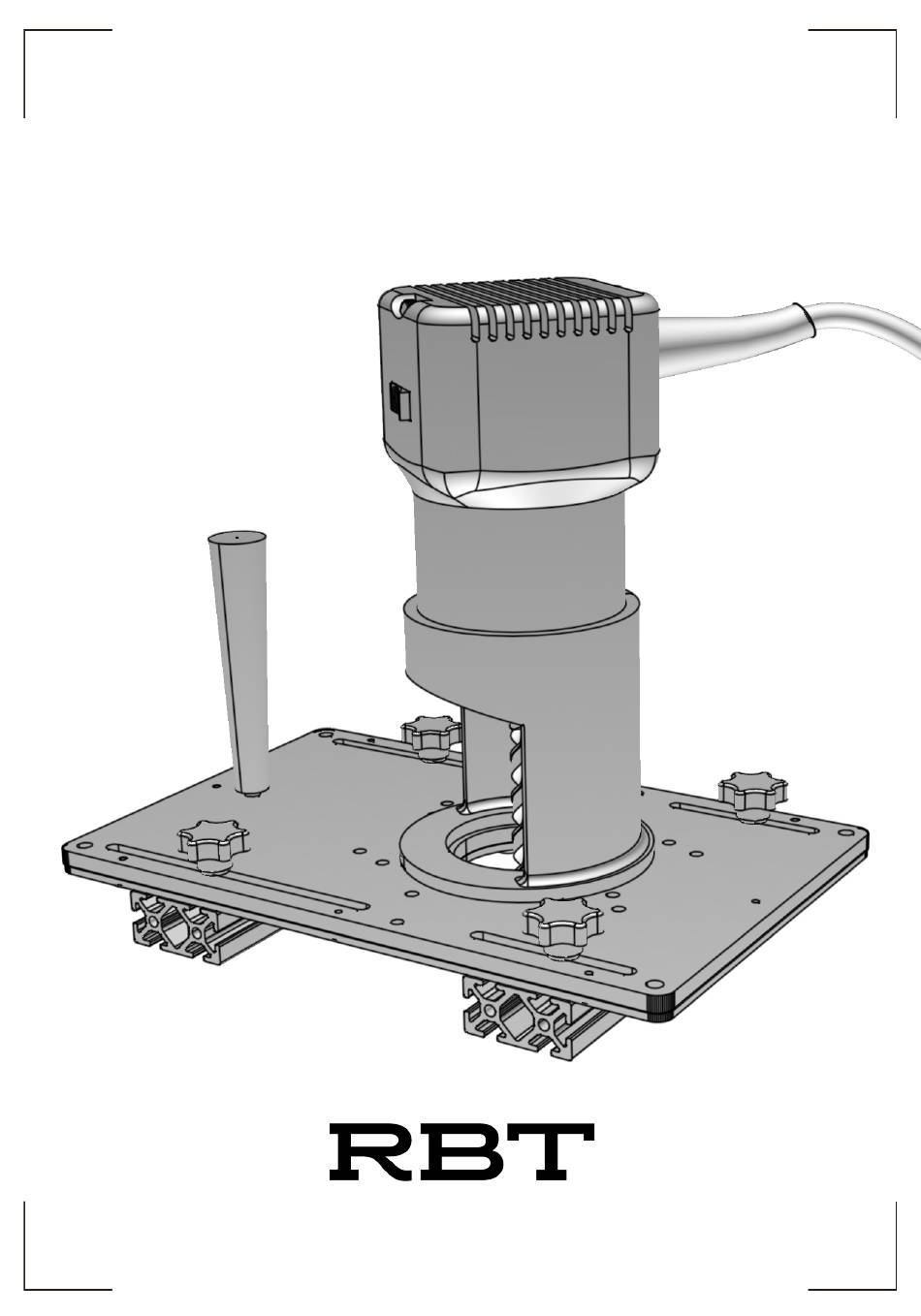

- Page 1 FSK/FSG M A N U A L 2023-2024...
- Page 2 According to Tim Taylor you don't need manuals, but it makes it easier to assemble the FSK/FSG. For assembly you need TORX 30 bit, TORX 20 bit, TORX 10 bit Jigsaw Router 12mm Ø routerbit bearing downside Have fun with grooving, rebating, trimming,...
- Page 3 Alternatively, you can also mount the profiles vertically/horizontally using the t-nut as a stop. Inserting into the workbench: Draw the outline of your FSK/FSG, screw four strips to the underside of the workbench and then remove them again. Saw the cut-out 1-2 mm away from your line.
- Page 9 Circle jig Attach the circle cutter to the center of the circle using a countersunk screw. Mount the plate as shown in figure 5. Move the cutter to the desired diameter and get started.
- Page 10 Center finder Screw the two cylinder screws into the threaded holes. Press the workpiece against both screws. Slide the profiles against the workpiece, remove the cylinder screws and get started.
- Page 11 Always mill in the right direction and do not overdo the depth of cut. Squeaking and screeching not only annoys your neighbors, but also puts unnecessary strain on the bearings of your router. You can find application examples here: bit.ly/rbt-instructions-application...
- Page 12 D R I L L P A T T E R N F S K / F S G...
- Page 14 L E A V E Y O U R A W E S O M E I D E A S H E R E...
- Page 16 This is the back. You can scribble your project on it, put your coffee down or level out the table. 2023-2024...
