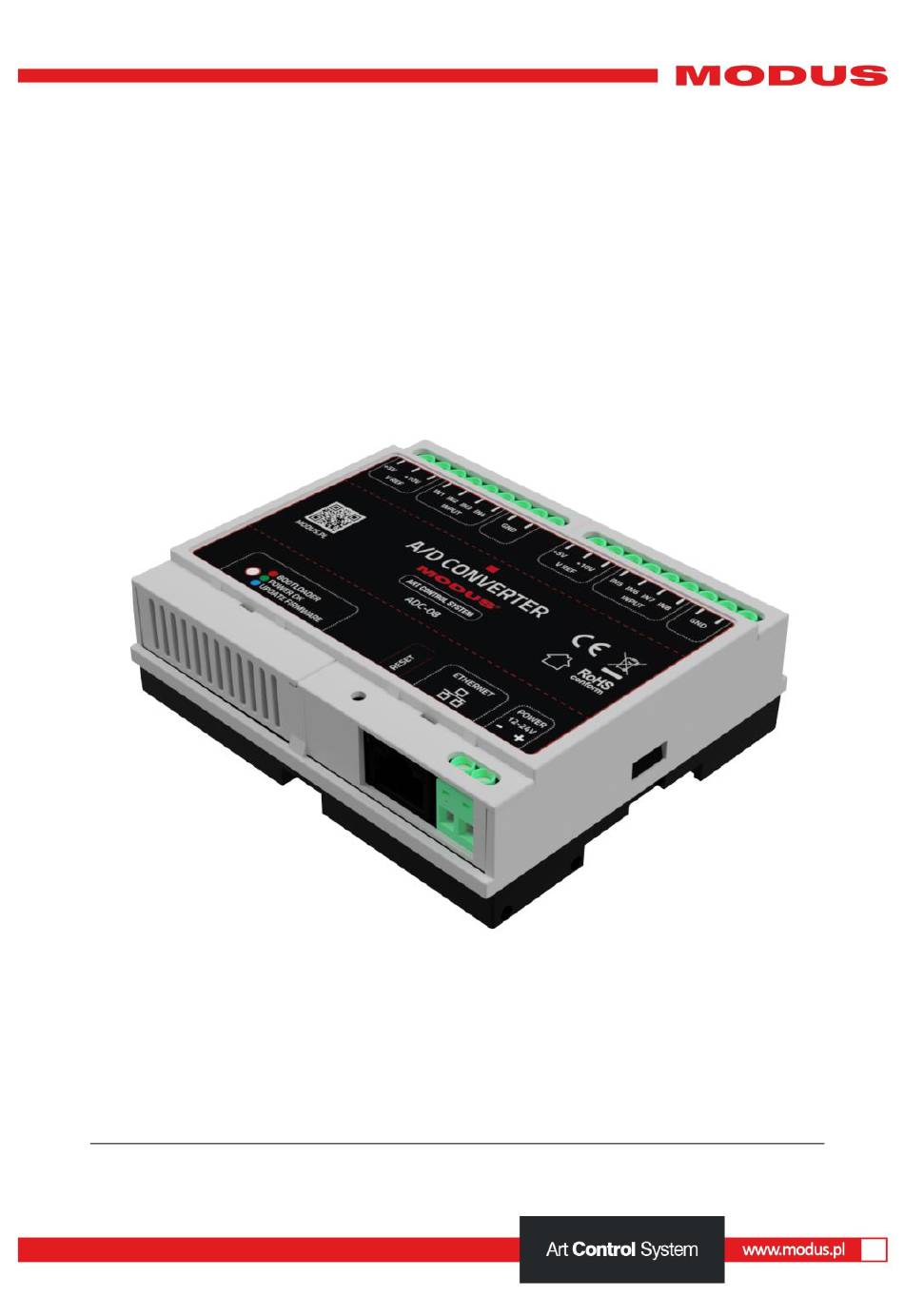

- Page 1 ADC-08 User manual Ver.02.05 8 CHANNELS CONVERTER 0-10V (5V) FOR ARTNET / UDP / MODUS / Modbus Code: 01333 / FW.1.1 ADC-08 A/D CONVERTER 8 CH...
- Page 2 We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. Art-Net™ Designed by and Copyright Artistic Licence " Holdings Ltd”. ADC-08 A/D CONVERTER 8 CH...
- Page 3 6.1. Powered by an external power supply........17 6.2. Passive PoE power supply (option) ........18 Configuring the device – MODUS DevManager ....19 7.1. DevManager – basic configuration ........19 7.2. DevManager – inputs and receiver’s IP configuration ... 21...
- Page 4 7.2.1. Artnet setting: ................ 21 7.2.2. MODUS protocol settings ............22 7.2.3. Modbus protocol settings ............22 7.3. Digital input calibration ............23 7.4. Inputs monitor............... 23 7.5. DevManager – special functions ........... 24 7.5.1. Change IP for MAC ..............24 7.5.2.
- Page 5 It is powered with safe voltage from 12 to 24 VDC. It has an external power input, or it can be supplied with Passive PoE. ADC-08 is widely used as an analog input module in automation sys- tems using the ArtNet, MODUS, Modbus or optional UDP commands.
- Page 6 (the possibility of previewing the signal at the configuration stage) IP address to which the ArtNet or MODUS signal will be sent. port to which the MODUS protocol will be sent (default:...
- Page 7 2. Basic safety conditions MODUS ADC-08 is a device powered with safe 12-24VDC voltage from dedicated power supplies, however, during installation and usage, it is essential to observe the following rules: 1. The converter should be installed by a person having rele- vant qualifications, according to the information in the man- ual.
- Page 8 5. Input ground (do not short it to the power supply ground, such a connection may cause measurement errors) 6. 0-10V Input connectors 7. Reference/supply voltage 10V (max. 200 mA) 8. Reference/supply voltage 5V (max. 200 mA) 9. Illuminated logo ADC-08 A/D CONVERTER 8 CH...
- Page 9 Restart- ing the update will restore normal operation of the module. Blue color: the device is in firmware update mode. Green color: normal operation of the module Illuminated logo. color: normal operation of the module ADC-08 A/D CONVERTER 8 CH...
- Page 10 0-10V. 5.1. Potentiometer connection Potentiometers should be connected to the converter according to the above diagram. You should use linear taper potentiome- ters with resistance not less than 10kΩ. ADC-08 A/D CONVERTER 8 CH...
- Page 11 5.2. 0-10V signal source connection 0-10V signal sources should be connected according to the above diagram. Pay special attention to appropriate polarization of the connected signals. Input resistance of the converter is 50kΩ. ADC-08 A/D CONVERTER 8 CH...
- Page 12 5.3. Buttons connection ADC-08 A/D CONVERTER 8 CH...
- Page 13 5.4. Sensors connection ADC-08 A/D CONVERTER 8 CH...
- Page 14 5.5. Special 5V sensors connection If one of the sensor states is a high impedance state (OC type outputs), the pull-up to VCC option should be enabled in the sen- sor configuration options. ADC-08 A/D CONVERTER 8 CH...
- Page 15 5.6. Triggering effects in media servers. The use of the converter to trigger effects from the media server through buttons and the Artnet protocol. ADC-08 A/D CONVERTER 8 CH...
- Page 16 5.7. Triggering scenes in Artnet consoles The use of the converter to trigger scenes from the light mixer through buttons and Artnet protocol. ADC-08 A/D CONVERTER 8 CH...
- Page 17 6.1. Powered by an external power supply. Attached devices, Ethernet network and power supply should be connected to the converter as shown in the figure bellow: To power the converter, use the power adapter recommended by the manufacturer. E.g., Meanwell HDR-30-12 ADC-08 A/D CONVERTER 8 CH...
- Page 18 The maximum length of the Ethernet cable when powered by Passive PoE is 25m, powering the converter with a longer cable may adversely affect its operation. 4. Power + 5. Power + 7. GND 8. GND ADC-08 A/D CONVERTER 8 CH...
- Page 19 7. Configuring the device – MODUS DevManager After connecting the device according to the diagrams in chapter 4, start the DevManager software. In order to configure the con- troller, the configuration device / computer must be connected to the same network and have an IP address from the same ad- dress pool.
- Page 20 0-10V inputs, select the IP to which ArtNet data is to be sent and configure the mode of operation of the MODUS or Modbus protocol. • Input monitor – allows preview of 0-10V inputs states in con- verter configuration stage •...
- Page 21 Each input can be configured individually, you can configure: - Destination IP: IP address to which ArtNET data will be sent - Transmission protocol: ArtNet, Modbus or MODUS - Net i Universe: Net and Universe selection - DMX channel: assigning selected channels to 0-10V inputs...
- Page 22 - ID: device or device group identification number - Sensor ID: sensor ID number - Active: enabling/disabling data transmission from the sensor - Analog/Digital: input operating mode selection - Calibration: hysteresis and digital input polarization calibration 7.2.3. Modbus protocol settings ADC-08 A/D CONVERTER 8 CH...
- Page 23 - OFF: level below which the input will be defined as disabled - ON: the level above which the input will be defined as enabled - Reverse polarity: checking will negate the sent information 7.4. Inputs monitor. ADC-08 A/D CONVERTER 8 CH...
- Page 24 The function allows you to change the IP for any device knowing only its MAC address. The function is useful in case of incorrect configuration of the device (e.g., duplication of IP addresses in the network). You should enter a unique MAC address of the device. ADC-08 A/D CONVERTER 8 CH...
- Page 25 If the firmware update fails, it may happen that the mod- ule will only be in bootloader mode and will not be detected in the list of devices. In this case, run this option to upload the lat- est software version. ADC-08 A/D CONVERTER 8 CH...
- Page 26 8. Restoring factory settings ADC-08 MODUS has the ability to restore the default settings with which it is delivered at the time of purchase. You should find RESET button on the casing of the converter (marked on the below diagram).
- Page 27 90/31/104 mm - Configuration with the use of DevManager firmware. Important! The manufacturer reserves the right to introduce modifica- tions to the functioning and using of the device for the pur- pose of improving the product. ADC-08 A/D CONVERTER 8 CH...
- Page 28 The device is available in three versions: 1. PCB only, designed for self- assembly in any housing: 2. In DIN/TH/TS 35 housing, for rail mounting 3. In a closed IP 65 housing for use in harsh outdoor conditions ADC-08 A/D CONVERTER 8 CH...
- Page 29 12. Contact, additional information: Mediam Sp. z o.o. www.mediam.com; biuro@mediam.com www.modus.pl, biuro@modus.pl ADC-08 A/D CONVERTER 8 CH...
- Page 30 EC directives. The letters "CE" stand for "Conformité Européenne" ("European Conformity"). Essential characteristics the product complies: • ADC-08: Analogue Digital Converter – converter analogue signal to Artnet and Modus protocol. We have verified that the product complies with all relevant “essential requirements”...
