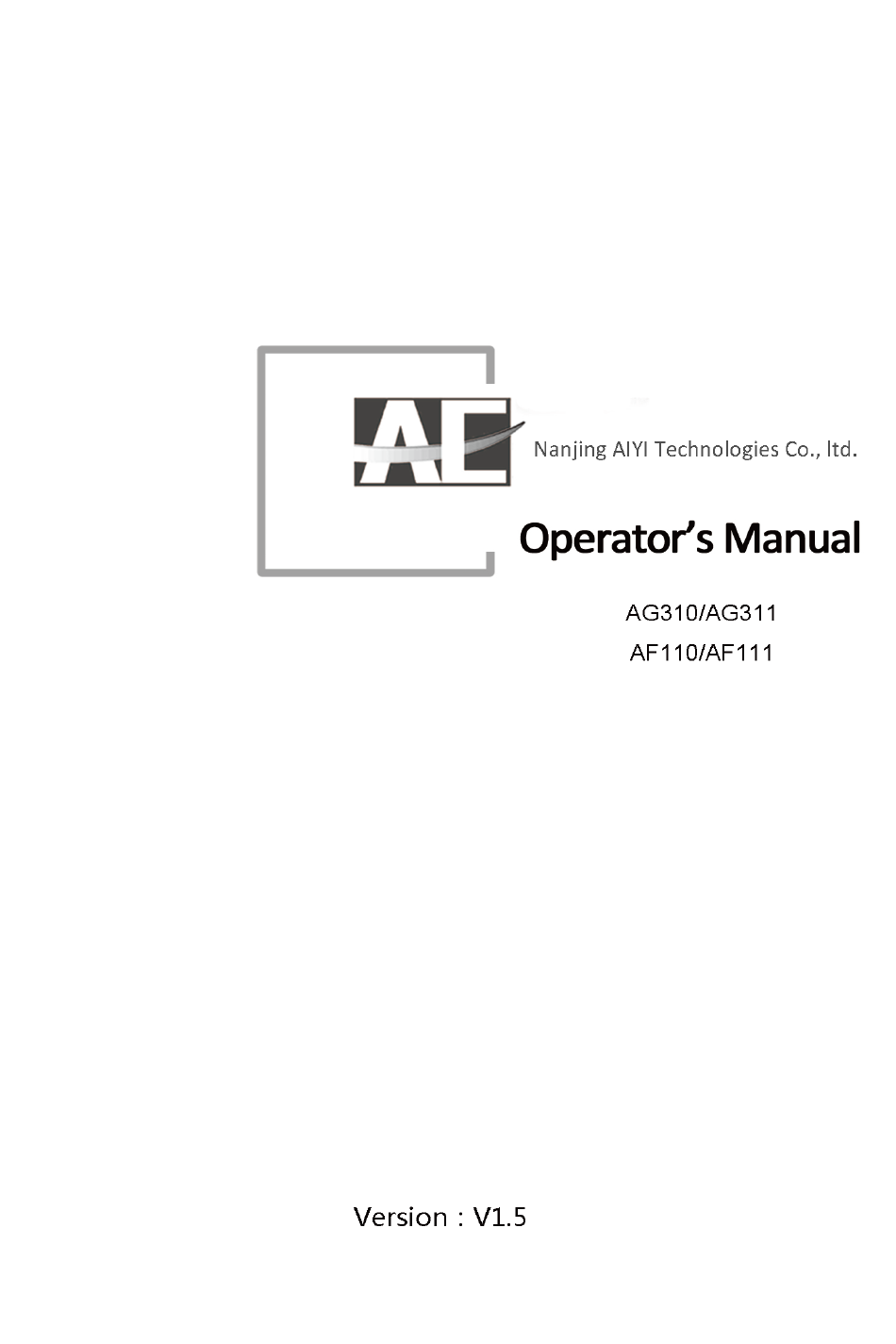

- Page 1 AIYI Technologies...
- Page 2 Dear customer： Glad to have your trust and support on AIYI Technologies, we will provide you best product and service in return. As an ISO certified manufacturer. AIYI Technologies has been focus on safety and environment many years, we provide you gas & dust detector and systems. The...
- Page 3 AGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE AIYI TECHNOLOGIES INSTRU- MENT EVEN IF AIYI TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 4 Statement Thanks for purchasing AIYI Technologies products, please contact us anytime if you have questions or requests. The manual is applicable to the use of AG & AF series gas detector. There may be technical inaccuracies, or typographical errors etc. in the manual. We will update the contents including description of products and program due to the enhancement of products func- tion.
- Page 5 CONTENT Chapter 1: Product Introduction 1.1 Brief introduction ……………………………………………………………………01 1.2 Description……………………………………………………………………………02 1.3 Specifications…………………………………………………………………………03 Chapter 2: Installation 2.1 Packing list……………………………………………………………………………04 2.2 Cautions………………………………………………………………………………04 2.3 Installation tools………………………………………………………………………05 2.4 Location selection ……………………………………………………………………05 2.5 Installation……………………………………………………………………………06 2.6 Wiring ………………………………………………………………………………07 2.7 Power-on test…………………………………………………………………………09 Chapter 3: Operation and Maintenance 3.1 Operation ……………………………………………………………………………09 3.2 Calibration……………………………………………………………………………10 3.3 Maintenance …………………………………………………………………………11...
- Page 6 AIYI Technologies 1.3. Specifications Model AG310/AF110 AG311/AF111 Gas Detected combustible gas/toxic gas/VOC Principle catalytic combustion/electrochemical/infrared/PID ≤30S T90 Response Time Accuracy ≤±5% F.S ≤3%F.S Repeatability Ambient Temp. -40℃~+70℃ ≤93%RH Humidity Power Supply 24VDC（workable voltage：18VDC~28VDC） Relay Output two relays（250VAC/5A 30VDC/5A） Cable RVVP3*1.5 RVVP4*1.0...
- Page 7 AIYI Technologies Chapter 2: Installation 2.1. Packing list 2.2. Cautions Check if the Ex-mark is consistent with the site condition and if any appearance of obvi- ▎ ous cracks and other defects, to ensure the perfect explosion-proof performance. The detector shall connect to the corresponding controller, and it is forbidden to con- ▎...
- Page 8 Chapter 1: Product Introduction 1.1. Brief introduction AG310/AF110, AG311/AF111 series of gas detector is made by Nanjing AIYI Technologies Co., Ltd. independent research and development of a new generation of gas detector. Products through the Ministry of Public Security Fire Product Conformity Assessment Center CCC fire certification, measurement equipment production license CMC certification, PCEC electrical products explosion-proof certificate and many other qualifications.
- Page 9 AIYI Technologies 1.2. Description 1,mounting hole 2, wiring hole 3, grounding screw 4,OLED display 5, the indicator light: through the light you can understand the working status of the de- tector, see details as follows: Indicator Status Descriptions this indicator flashes red when the remote flashing control is in operation.
- Page 10 AIYI Technologies It may hardly damage the sensitivity and life of sensor if there are long-existing H2S, ▎ halogen elements (fluorine, chlorine, bromine, iodine) and heavy metal’ elements. Do not touch the internal circuit while wiring, and keep the case reliable grounded.
- Page 11 AIYI Technologies 2.5. Installation 1,mounting plate 2,M5 self-tapping screw 3,M5 expansion screw The detector is connected to mounting plate by adopting M5 self-tapping screw; There are wall-mount installation and post-mount installation as below:...
- Page 12 AIYI Technologies 2.6. Wiring Power supply ▎ The standard operating power of the detector is 24VDC, workable range from 15-30VDC (considering the resistance of cable, please ensure the power voltage is not less than 18VDC). If the detector direct access to DCS or PLC system, please ensure that the re- sistance of entire loop below 300Ω.
- Page 13 AIYI Technologies wiring diagram of detector ▎ ○ ○ ○ ○ ○ 1, unscrew the detector cover counterclockwise. 2, with your fingers buckle the recess around the panel part, slowly pull out the circuit module up. Note that do not operate with violence. Because there are cable links between circuit module and the sensor.
- Page 14 AIYI Technologies 2.7. Power-on test Before the system is energized, please verify that the wiring and installation are correct then power up. Keep at least 20 minutes power on at first time. And take it as normal phenomenon if any alarm happen because the initialization.
- Page 15 AIYI Technologies Menu details： Options Description Set up high alarm and low alarm; alarm value is al- ready set before out of factory, users are not recom- 1, ALARM SET mended to modify oneself. Zero calibration 2, ZERO CAL MENU...
- Page 16 AIYI Technologies Span calibration ▎ Gas in 60% of full measure range is recommended as the span calibration gas. Open the regulator slowly at 0.5L/min, prepare the span calibration until a stable readings on detector. Press ok and enter the menu with password (OK,OK,OK,OK,OK,OK). Then select “SPAN CAL”, and setting up the gas concentration (span calibration gas) with “YES”...
- Page 17 AIYI Technologies 3.4. Trouble-shooting FAULTS REASONS SOLUTIONS Wrong wiring Re-wiring No output signal Wrong power supply Check power supply Circuit fault Return to factory Sensor failure Replace sensor modular Lower readings Need calibration Re-calibration Reading drift Re-calibration Sensor failure Replace sensor modular...
- Page 18 AIYI Technologies Chapter 4: Appendix 4.1. Calibration record...
- Page 19 AIYI Technologies...
- Page 20 AIYI Technologies...
