SmartAnt ZYAIR EXT-114 - MOUNTING Assembly Manual

High Gain Panel Directional Antenna
for 5.25 / 5.6 / 5.8 GHz
SAA04-050250

1.Wall Mounting

1
7

2.Pole Mounting

16
http:// www.smartant.com
All right reserved by SmartAnt Telecom Co., Ltd.

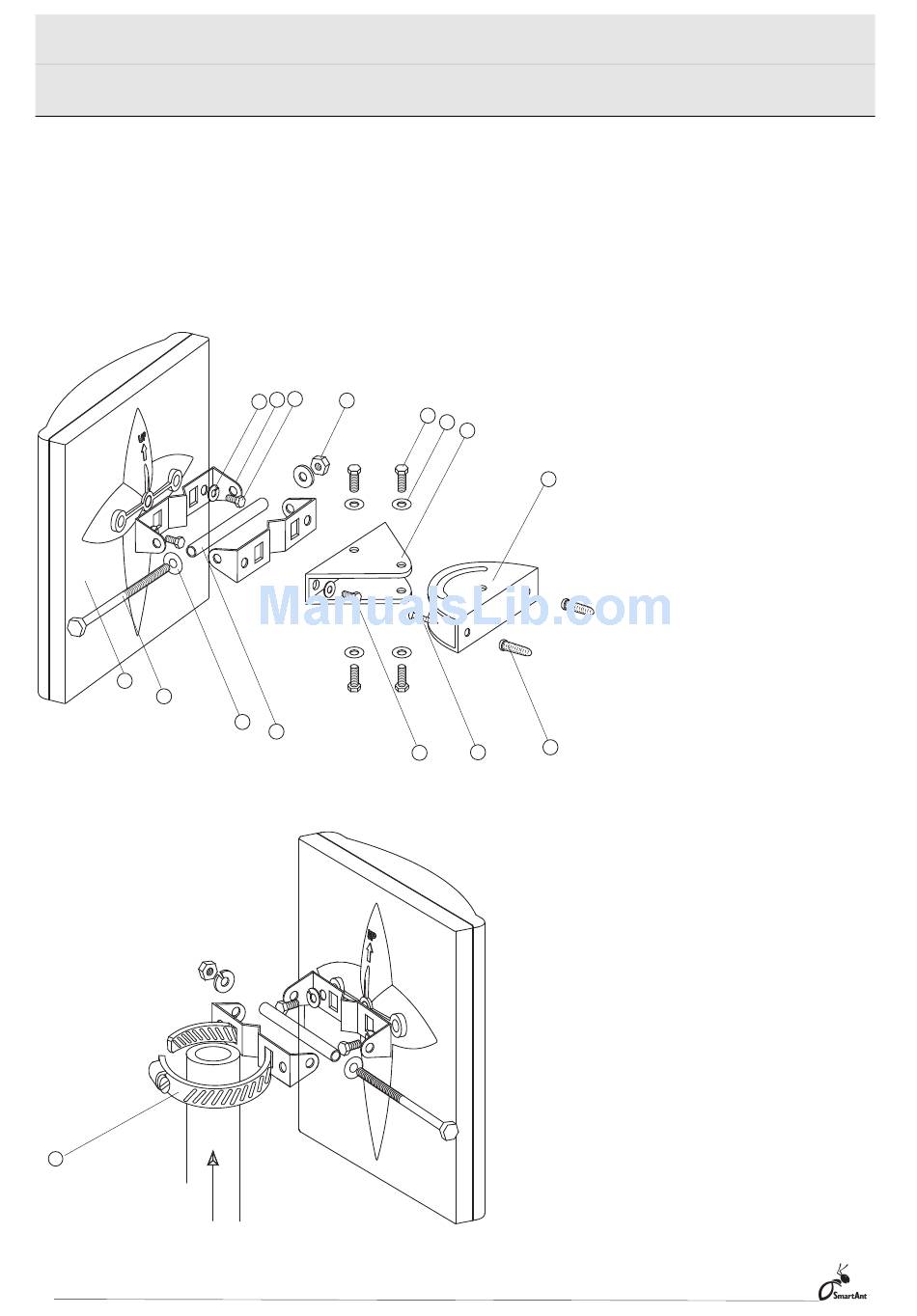

Assembly Drawing
2 4
8
3
6
5
TEL: +886 (0)3 578-3188 FAX: +886 (0)3 578-3189
10
11
12
13
15
14
9
1. Antenna Body
2. M-type Stand
3. M8 Spring washer
4. M8 x 12 screw
5. Steel tube
6. M8 washer
7. M8 x 110 screw
8. M8 nut
9. M8 x 16 screw
10. M6 x 12 screw
11. M6 washer
12. Triangle stand
13. Main stand
14. Screw
15. Plastic conical anchor 2pcs
16. Hose Clamp 2-1/2"
E-mail: service@smartant.com
P1
Version 1
2pcs
2pcs
2pcs
1pcs
4pcs
1pcs
3pcs
2pcs
4pcs
4pcs
2pcs
SA2-05031
